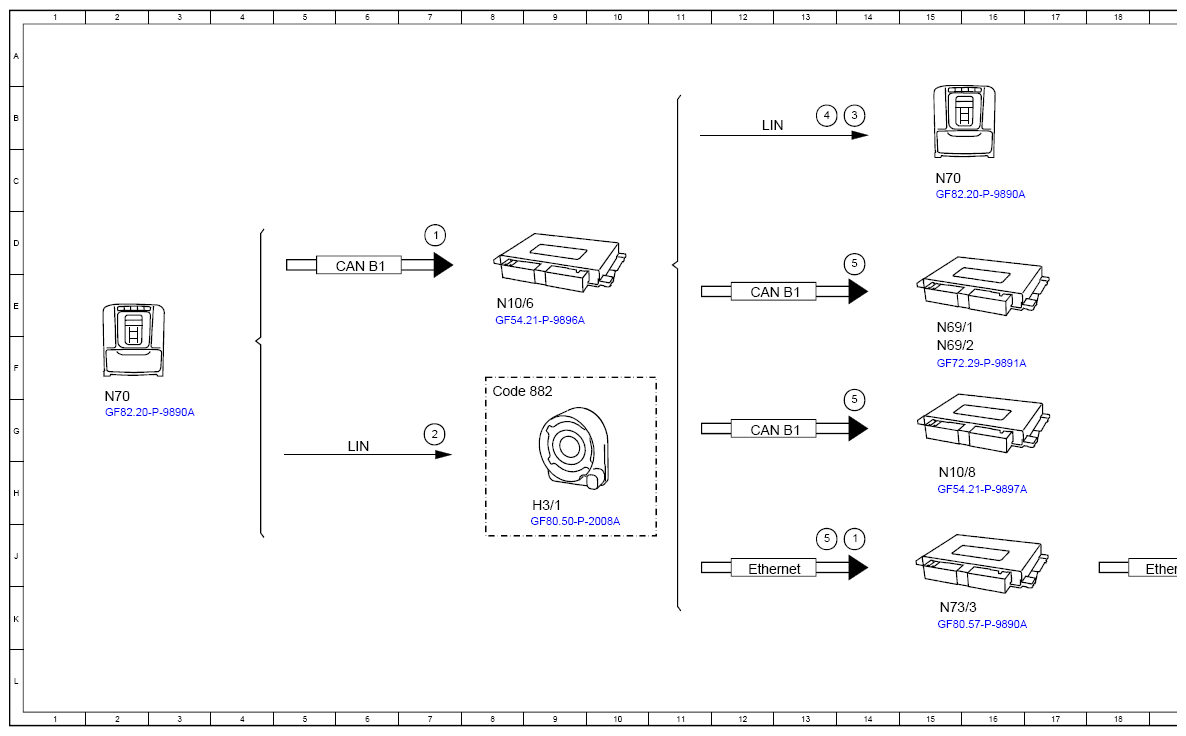

(Function Schematic For Output Of Anti-Theft Alarm System Alarm - PE80.50-P-2501-97E)
Model 192, 232 with code 551 (Standard anti-theft alarm system (ATA))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ATA [EDW] alarm, signal | 7D |
| 1 | ATA [EDW] alarm, signal | 14J |
| 1 | ATA [EDW] alarm, signal | 20J |
| 2 | Alarm siren, actuation | 7G |
| 3 | Interior lamp, request | 14B |
| 4 | Ambience illumination, request | 13B |
| 5 | Hazard warning flasher, request | 14D |
| 5 | Hazard warning flasher, request | 14G |
| 5 | Hazard warning flasher, request | 13J |
| CAN B1 | CAN 1 for vehicle interior | 6D |
| CAN B1 | CAN 1 for vehicle interior | 12E |
| CAN B1 | CAN 1 for vehicle interior | 12G |
| Code 882 | Anti-theft alarm system sensor system and siren | 8F |
| Ethernet | Ethernet | 12J |
| Ethernet | Ethernet | 19J |
| H3/1 | Alarm siren | 9H |
| LIN | Local Interconnect Network | 6G |
| LIN | Local Interconnect Network | 12B |
| N10/6 | Front signal acquisition and actuation module control unit | 8E |
| N10/8 | Rear signal acquisition and actuation module control unit | 15H |
| N112/2 | Telematics services communication module | 21K |
| N69/1 | Left front door control unit | 15E |
| N69/2 | Right front door control unit | 15F |
| N70 | Overhead control panel control unit | 2G |
| N70 | Overhead control panel control unit | 15C |
| N73/3 | Electronic ignition switch control unit | 15K |
