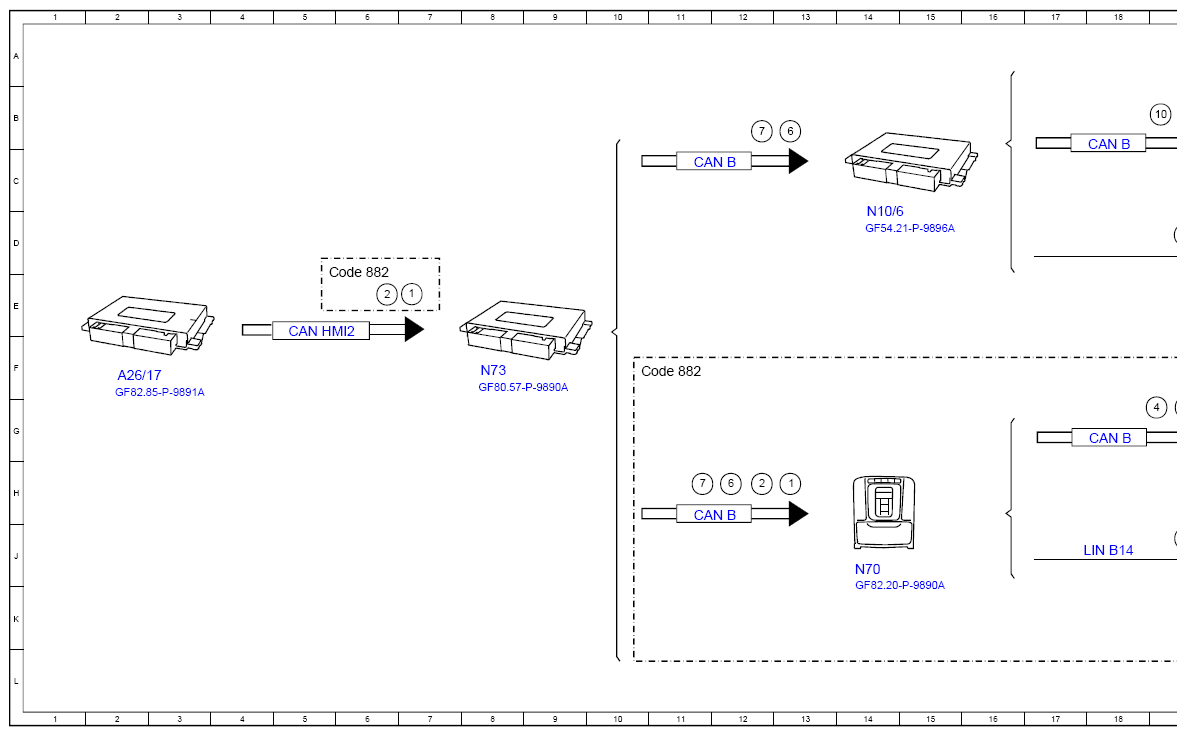

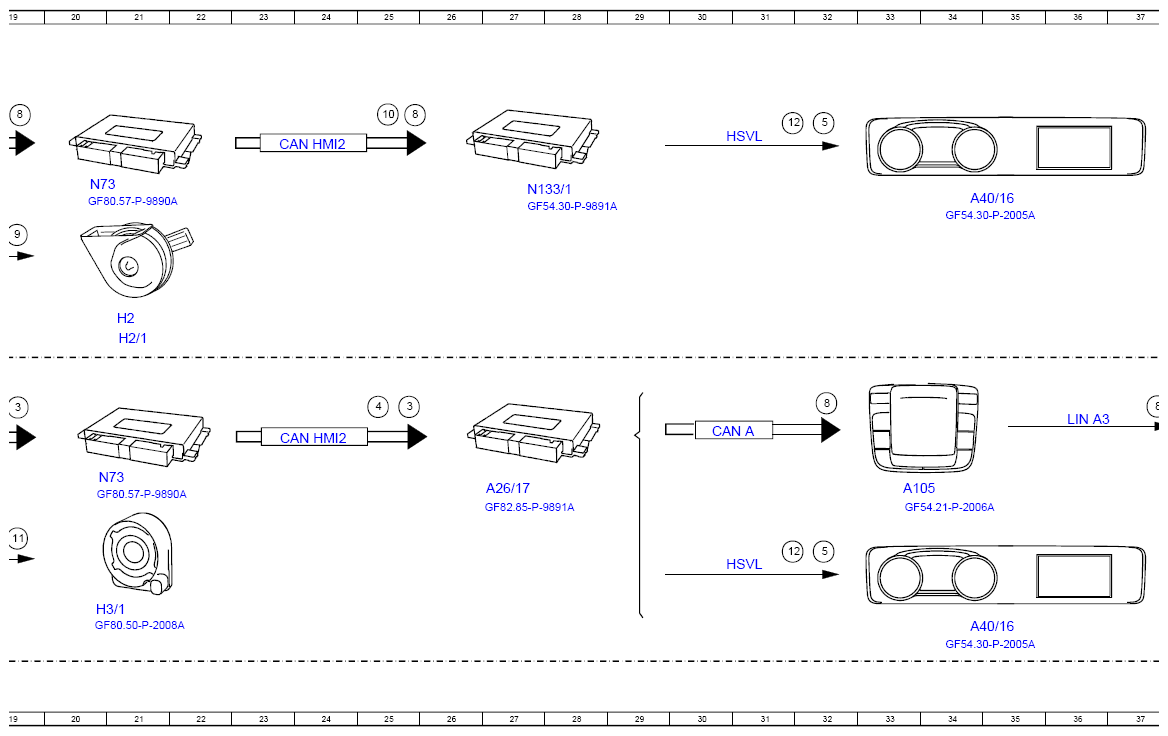

(Function Schematic For Output Of Anti-Theft Alarm System Alarm - PE80.50-P-2501-97C)
Model 213, 238, 257, 290 as of model year 2021 with code 551 (Standard anti-theft alarm system (ATA))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Deactivate interior protection, request | 13H |
| 1 | Deactivate interior protection, request | - |
| 10 | Instrument cluster message, request | - |
| 10 | Instrument cluster message, request | - |
| 11 | Alarm siren, control | 19J |
| 12 | Instrument cluster, message | - |
| 12 | Instrument cluster, message | - |
| 2 | Deactivate towing protection, request | - |
| 2 | Deactivate towing protection, request | - |
| 3 | Interior protection deactivated, signal | 19G |
| 3 | Interior protection deactivated, signal | - |
| 4 | Towing protection deactivated, signal | 19G |
| 4 | Towing protection deactivated, signal | - |
| 5 | Image data, signal | - |
| 5 | Image data, signal | - |
| 6 | Terminal 15, status | 13B |
| 6 | Terminal 15, status | 12H |
| 7 | Central locking, status | 12B |
| 7 | Central locking, status | 11H |
| 8 | Light-emitting diode, requirement | - |
| 8 | Light-emitting diode, requirement | - |
| 8 | Light-emitting diode, requirement | - |
| 8 | Light-emitting diode, requirement | - |
| 9 | Fanfares, control | 19D |
| A105 | Touchpad | 33H |
| A26/17 | Head unit | 2F |
| A26/17 | Head unit | 27H |
| A40/16 | Head unit/instrument cluster display group | 35K |
| A40/16 | Head unit/instrument cluster display group | 35C |
| CAN A | Telematics CAN | 30G |
| CAN B | Interior CAN | 11C |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 18C |
| CAN B | Interior CAN | 18G |
| CAN HMI2 | User interface CAN 2 | 5E |
| CAN HMI2 | User interface CAN 2 | 24C |
| CAN HMI2 | User interface CAN 2 | 24G |
| Code 882 | Interior protection and towing protection | 5E |
| Code 882 | Interior protection and towing protection | 10F |
| H2 | Fanfare left | 21E |
| H2/1 | Fanfare right | 21F |
| H3/1 | Alarm siren | 20K |
| HSVL | High speed video link | 31J |
| HSVL | High speed video link | 31B |
| LIN A3 | UBF-LIN | 36G |
| LIN B14 | Alarm system LIN | 18Y |
| N10/6 | SAM control unit, front | 14D |
| N133/1 | Instrument cluster control unit | 27C |
| N70 | Roof control unit control unit | 14Y |
| N72/1 | Control unit upper control panel | 38G |
| N73 | Electronic ignition lock control unit | 8F |
| N73 | Electronic ignition lock control unit | 20C |
| N73 | Electronic ignition lock control unit | 20H |
