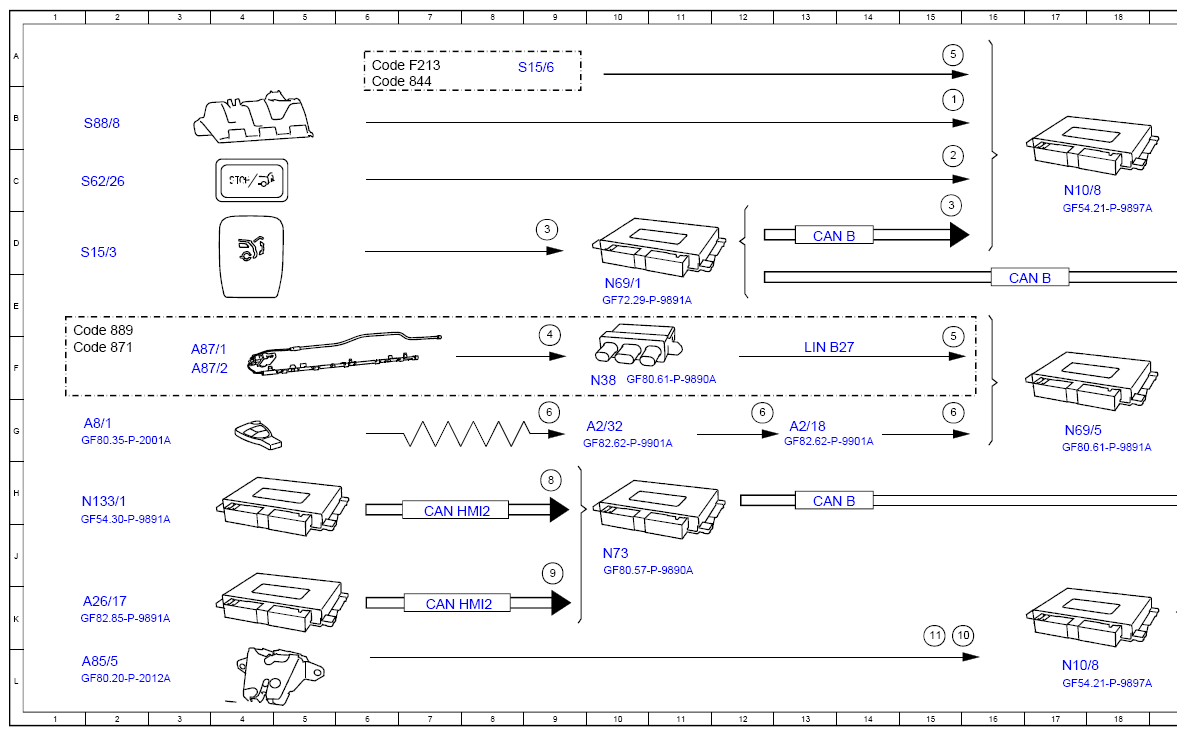

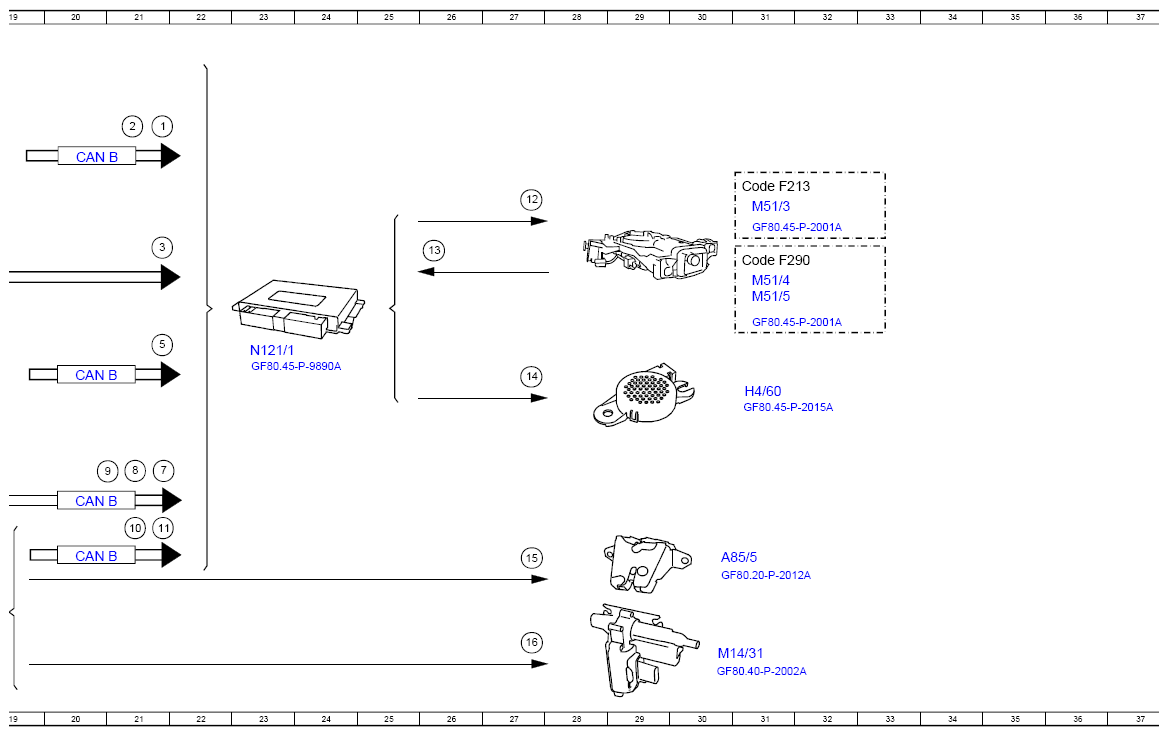

(Function Schematic For Liftgate Control - PE80.45-P-2502-97C)
Model 213.2, 290 as of model year 2021 with code 890 (Automatic rear-end door)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Microswitch external actuation, status | - |
| 1 | Microswitch external actuation, status | - |
| 10 | Switch boot lid/tailgate lock pre-latch, status | - |
| 10 | Switch boot lid/tailgate lock pre-latch, status | - |
| 11 | Switch main catch for trunk lid/tailgate lock, status | - |
| 11 | Switch main catch for trunk lid/tailgate lock, status | - |
| 12 | Tailgate control drive unit, control | - |
| 13 | Hall sensors, signal | - |
| 14 | Warning buzzer, activation | - |
| 15 | Motor trunk lid/tailgate lock, control | - |
| 16 | Tailgate closing element, control | - |
| 2 | Boot lid/tailgate control button, status | - |
| 2 | Boot lid/tailgate control button, status | - |
| 3 | Button trunk lid/tailgate control driver, status | - |
| 3 | Button trunk lid/tailgate control driver, status | - |
| 3 | Button trunk lid/tailgate control driver, status | - |
| 4 | Sensor rear switch module, signal | - |
| 5 | Open trunk lid/tailgate, request | - |
| 5 | Open trunk lid/tailgate, request | - |
| 5 | Open trunk lid/tailgate, request | - |
| 6 | Access authorization code, signal | - |
| 6 | Access authorization code, signal | - |
| 6 | Access authorization code, signal | - |
| 7 | Terminal 15, status | - |
| 8 | Displayed vehicle speed, signal | - |
| 8 | Displayed vehicle speed, signal | - |
| 9 | Opening angle limitation, requirement | - |
| 9 | Opening angle limitation, requirement | - |
| A2/18 | Antenna amplifier FM, AM, ZV, DAB and KEYLESS-GO | 13G |
| A2/32 | Antenna rear window | 10G |
| A26/17 | Head unit | 2K |
| A8/1 | Sender key | 2G |
| A85/5 | Trunk lid/tailgate lock | 1L |
| A85/5 | Trunk lid/tailgate lock | 30Y |
| A87/1 | Sensor above rear switch module | 3F |
| A87/2 | Sensor below rear switch module | 3F |
| CAN B | Interior CAN | 13D |
| CAN B | Interior CAN | 16E |
| CAN B | Interior CAN | 20C |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 20Y |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 20H |
| CAN HM12 | User interface CAN 2 | 7H |
| CAN HM12 | User interface CAN 2 | 7K |
| Code 844 | Folding bench seat in the cargo area | 6A |
| Code 871 | Sensor system for opening/closing the trunk lid | 1F |
| Code 889 | KEYLESS GO | 1E |
| Code F213 | Series 213 | 6A |
| Code F213 | Series 213 | 31C |
| Code F290 | Series 290 | 31D |
| H4/60 | Warning buzzer for trunk lid/tailgate control | 31F |
| LIN B27 | KEYLESS-GO LIN | 13F |
| M14/31 | closing element trunk lid/tailgate | 30L |
| M51/3 | Drive unit for trunk lid/tailgate control | 31C |
| M51/4 | Drive unit for tailgate control, right | 31E |
| M51/5 | Drive unit for tailgate control on the left | 31E |
| N10/8 | Rear SAM control unit | 17C |
| N10/8 | Rear SAM control unit | 17L |
| N121/1 | Trunk lid/tailgate control unit | 23F |
| N133/1 | Instrument cluster control unit | 2H |
| N38 | Rear switch module | 10F |
| N69/1 | Left front door control unit | 10E |
| N69/5 | KEYLESS-GO control unit | 17G |
| N73 | Electronic ignition lock control unit | 10Y |
| S15/3 | Button trunk lid/tailgate control driver | 1D |
| S15/6 | Tailgate release switch for 3rd row of seats | 9A |
| S62/26 | Boot lid/tailgate control button | 1C |
| S88/8 | Switch for external operation of the trunk lid/tailgate | 2B |
