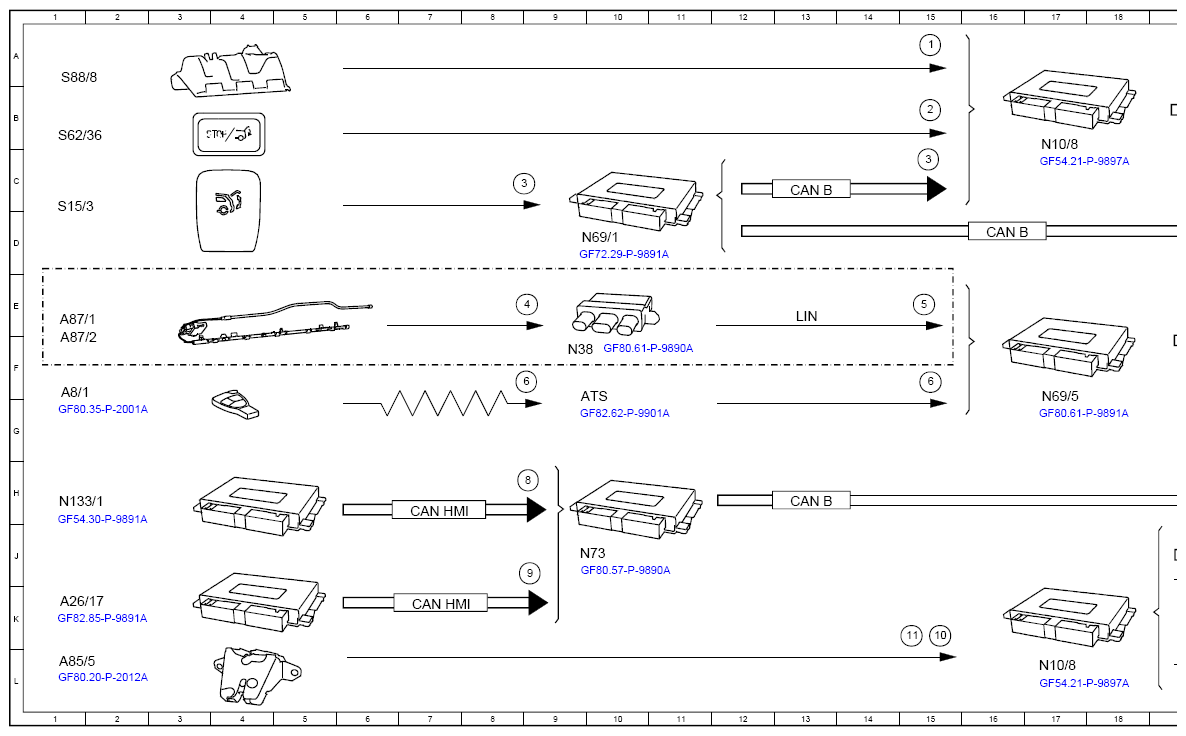

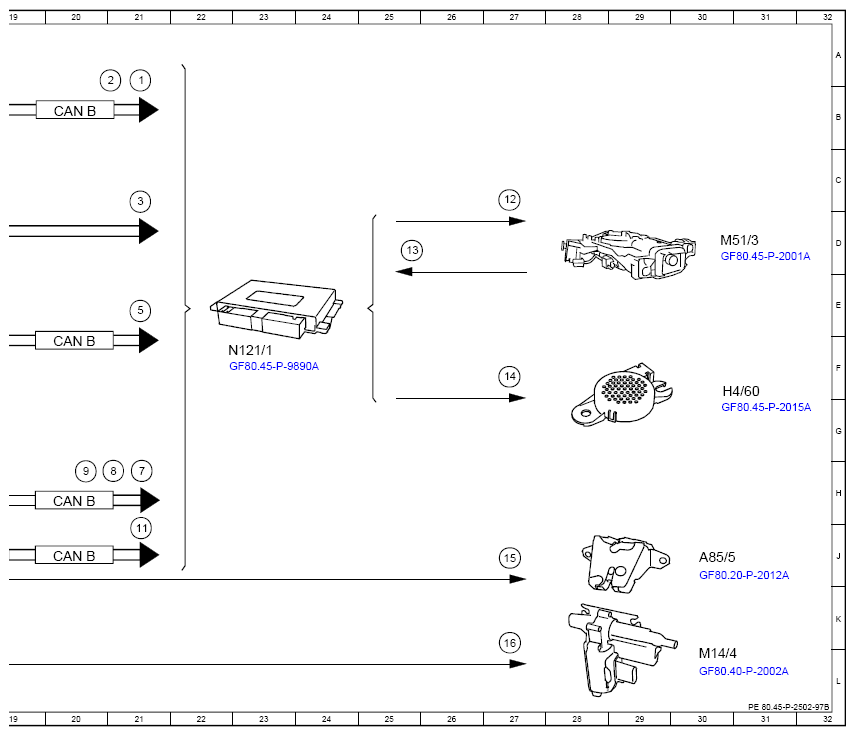

(Function Schematic For Liftgate Control - PE80.45-P-2502-97B)
Model 293 with code 890 (Automatic rear-end door)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | External operation microswitch, status | - |
| 1 | External operation microswitch, status | - |
| 10 | Trunk lid/liftgate lock safety catch switch, status | - |
| 11 | Trunk lid/liftgate lock main catch switch, status | - |
| 11 | Trunk lid/liftgate lock main catch switch, status | - |
| 12 | Trunk lid/liftgate control drive unit, actuation | - |
| 13 | Hall sensors, signal | - |
| 14 | Warning buzzer, actuation | - |
| 15 | Trunk lid/liftgate lock motor, actuation | - |
| 16 | Trunk lid/liftgate lock element, actuation | - |
| 2 | Tailgate control button, status | - |
| 2 | Tailgate control button, status | - |
| 3 | Driver-side trunk lid/liftgate control button, status | - |
| 3 | Driver-side trunk lid/liftgate control button, status | - |
| 3 | Driver-side trunk lid/liftgate control button, status | - |
| 4 | Rear switching module sensor, signal | - |
| 5 | Open trunk lid/liftgate, request | - |
| 5 | Open trunk lid/liftgate, request | - |
| 6 | Access authorization code, signal | - |
| 6 | Access authorization code, signal | - |
| 7 | Circuit 15, status | - |
| 8 | Displayed vehicle speed, signal | - |
| 8 | Displayed vehicle speed, signal | - |
| 9 | Opening angle limiter, request | - |
| 9 | Opening angle limiter, request | - |
| A26/17 | Head unit | 1K |
| A8/1 | Transmitter key | 1F |
| A85/5 | Trunk lid/liftgate lock | 1L |
| A85/5 | Trunk lid/liftgate lock | 30J |
| A87/1 | Rear switching module upper sensor | 1E |
| A87/2 | Rear switching module lower sensor | 1F |
| ATS | Antenna system | 10G |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 16D |
| CAN B | Interior CAN | 20B |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 20J |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 20H |
| CAN HMI | User interface CAN | 7H |
| CAN HMI | User interface CAN | 7K |
| H4/60 | Trunk lid/liftgate control warning buzzer | 30F |
| LIN | Local Interconnect Network | 13E |
| M14/4 | Trunk lid/liftgate locking element | 30L |
| M51/3 | Trunk lid/liftgate control drive unit | 30D |
| N10/8 | - | 17C |
| N10/8 | - | 17L |
| N121/1 | Trunk lid/liftgate control, control unit | 23F |
| N133/1 | Instrument cluster control unit | 1H |
| N38 | Rear switching module | 9F |
| N69/1 | Driver door control unit | 10D |
| N69/5 | KEYLESS-GO control unit | 17G |
| N73 | Electronic ignition switch control unit | 10J |
| S15/3 | Driver trunk lid/liftgate control button | 1C |
| S62/36 | Trunk lid/liftgate control button | 1B |
| S88/8 | Trunk lid/liftgate external operation button | 1A |
