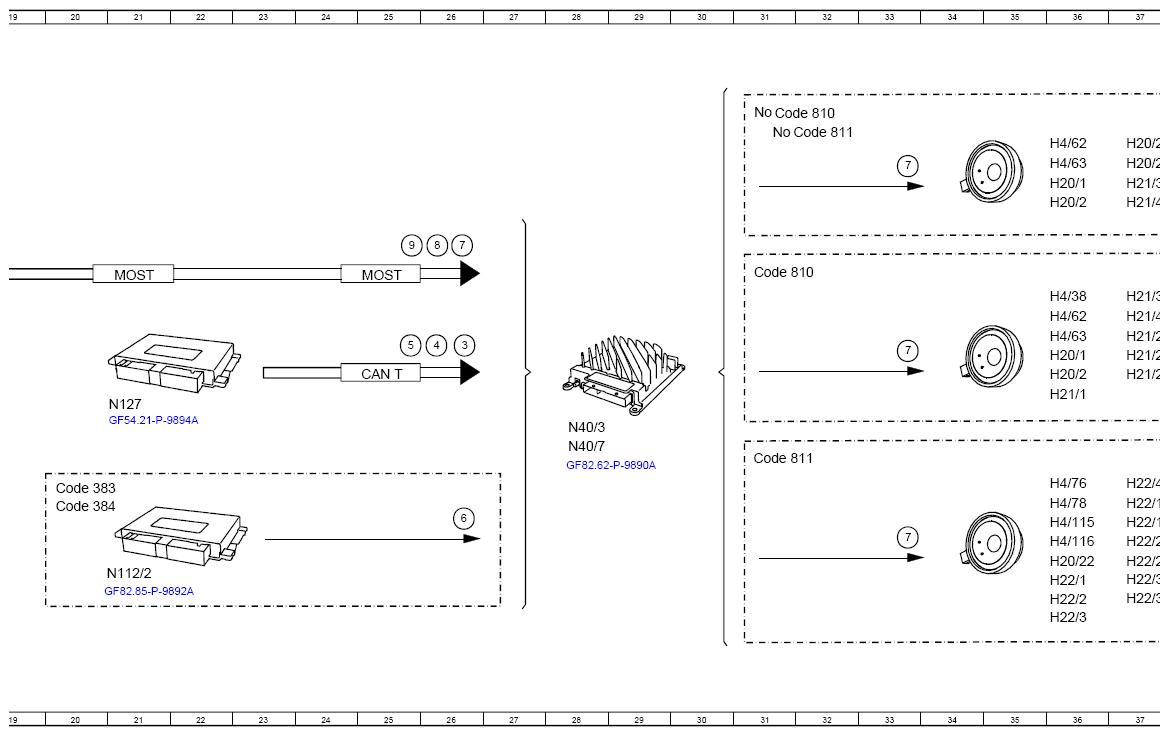

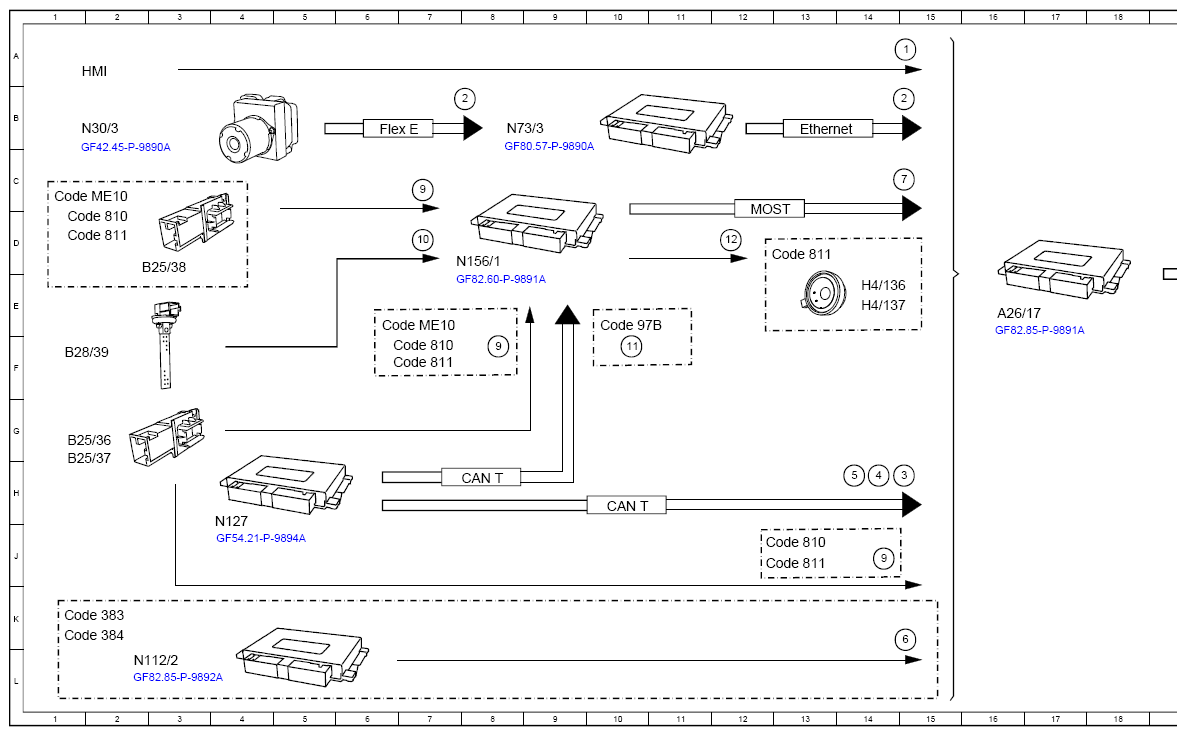

(Function Schematic For Actuating Speakers - PE82.62-P-2501-97J)
Model 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | - |
| 10 | Sensor data, signal | - |
| 11 | Cylinder shutoff, status | - |
| 12 | Bass shaker speaker, actuation | - |
| 2 | Vehicle speed, signal | - |
| 2 | Vehicle speed, signal | - |
| 3 | Engine running, signal | - |
| 3 | Engine running, signal | - |
| 4 | Engine speed, signal | 26F |
| 4 | Engine speed, signal | - |
| 5 | Engine torque, signal | 25F |
| 5 | Engine torque, signal | - |
| 6 | Mute function, signal | - |
| 6 | Mute function, signal | - |
| 7 | Audio, signal | - |
| 7 | Audio, signal | - |
| 7 | Audio, signal | - |
| 7 | Audio, signal | - |
| 8 | Boosting of signals for communication in the vehicle, request | - |
| 9 | Microphone, signal | - |
| 9 | Microphone, signal | - |
| 9 | Microphone, signal | - |
| 9 | Microphone, signal | - |
| A26/17 | Head unit | 16E |
| B25/36 | Microphone | 1G |
| B25/37 | Microphone | 1H |
| B25/38 | Microphone | 3D |
| B28/39 | AMG Sound Package sensor | IF |
| CAN T | CAN for drivetrain | 10H |
| CAN T | CAN for drivetrain | 25F |
| CAN T | CAN for drivetrain | 8H |
| Code 383 | RAMSES ENTRY communication module | 1K |
| Code 383 | RAMSES ENTRY communication module | 20H |
| Code 384 | RAMSES HIGH communication module | 1K |
| Code 384 | RAMSES HIGH communication module | 20H |
| Code 810 | Premium sound system | 12J |
| Code 810 | Premium sound system | 31E |
| Code 810 | Premium sound system | 31B |
| Code 810 | Premium sound system | 1D |
| Code 810 | Premium sound system | 6F |
| Code 811 | High-End sound system | 12J |
| Code 811 | High-End sound system | 31H |
| Code 811 | High-End sound system | 31B |
| Code 811 | High-End sound system | 1D |
| Code 811 | High-End sound system | 12D |
| Code 811 | High-End sound system | 6F |
| Code 97B | Engine noise reduction via speakers (EOC) | 10E |
| Code ME10 | Hybrid vehicle | 1C |
| Code ME10 | Hybrid vehicle | 6E |
| Ethernet | Ethernet | 13B |
| Flex E | Chassis FlexRay | 6B |
| H20/1 | Left front door tweeter | 36F |
| H20/1 | Left front door tweeter | 36C |
| H20/2 | Right front door tweeter | 36F |
| H20/2 | Right front door tweeter | 36C |
| H20/22 | Center front mid-range speaker (Standard) | 36J |
| H20/23 | Left front bass speaker | 37B |
| H20/24 | Right front bass speaker | 37C |
| H21/1 | Left A-pillar surround sound system tweeter | 36F |
| H21/23 | Left front bass speaker | 37F |
| H21/24 | Right front bass speaker | 37F |
| H21/25 | Center front mid-range speaker (Premium) | 37F |
| H21/3 | Left front door surround sound system midrange speaker | 37E |
| H21/3 | Left front door surround sound system midrange speaker | 37C |
| H21/4 | Right front door surround sound system midrange speaker | 37E |
| H21/4 | Right front door surround sound system midrange speaker | 37C |
| H22/1 | Left front door tweeter | 36J |
| H22/11 | Left rear door tweeter | 37H |
| H22/12 | Right rear door tweeter | 37J |
| H22/2 | Right front door tweeter | 36K |
| H22/21 | Instrument panel tweeter | 37J |
| H22/23 | Left front bass speaker | 37J |
| H22/3 | Left front door midrange speaker | 36K |
| H22/33 | Left rear midrange speaker | 37J |
| H22/34 | Right rear midrange speaker | 37K |
| H22/4 | Right front door midrange speaker | 37H |
| H4/115 | Left front overhead control panel mid-range speaker | 36J |
| H4/116 | Right front overhead control panel mid-range speaker | 36J |
| H4/136 | Left bass shaker speaker | 14E |
| H4/137 | Right bass shaker speaker | 14E |
| H4/38 | Rear woofer | 36E |
| H4/62 | Left rear surround sound system midrange speaker | 36E |
| H4/62 | Left rear surround sound system midrange speaker | 36B |
| H4/63 | Right rear surround sound system midrange speaker | 36F |
| H4/63 | Right rear surround sound system midrange speaker | 36C |
| H4/76 | Center instrument panel tweeter | 36H |
| H4/78 | Center instrument panel midrange speaker | 36H |
| MOST | Media Oriented System Transport | 25E |
| MOST | Media Oriented System Transport | 21E |
| MOST | Media Oriented System Transport | 12D |
| N112/2 | Telematics services communication module | 2L |
| N112/2 | Telematics services communication module | 21J |
| N127 | Drivetrain control unit | 4J |
| N127 | Drivetrain control unit | 21G |
| N156/1 | Sound generator control unit | 7D |
| N30/3 | Electronic Stability Program control unit | 1B |
| N40/3 | Sound system amplifier control unit | 28G |
| N40/7 | Sound system amplifier control unit | 28G |
| N73/3 | Electronic ignition switch control unit | 8B |
