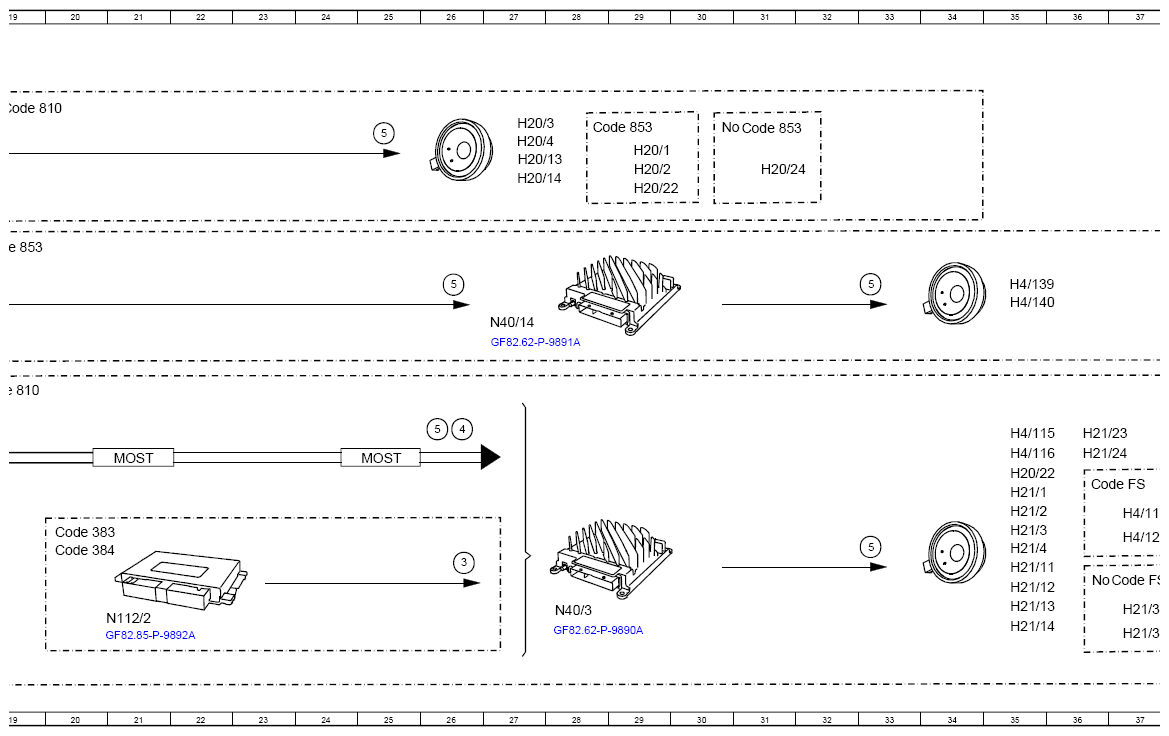

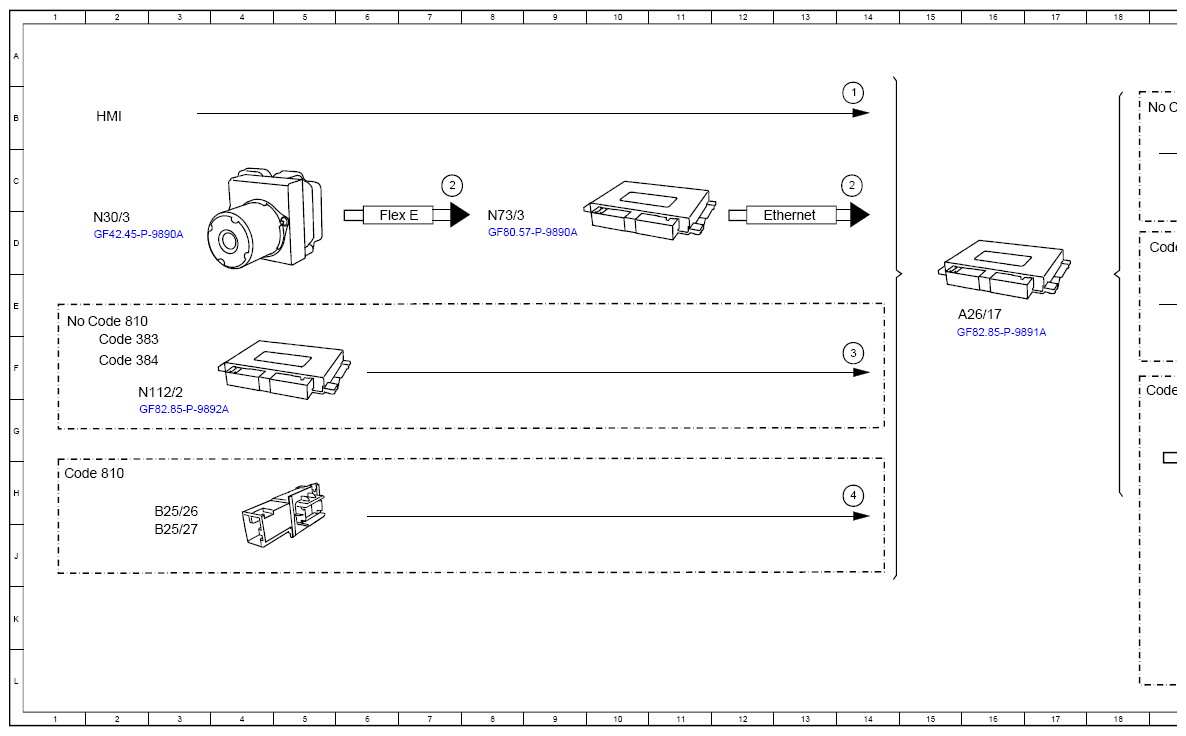

(Function Schematic For Actuating Speakers - PE82.62-P-2501-97H)
Model 206, 214, 236, 254
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | - |
| 2 | Vehicle speed, signal | - |
| 2 | Vehicle speed, signal | - |
| 3 | Mute function, signal | - |
| 3 | Mute function, signal | - |
| 4 | Microphone, signal | - |
| 4 | Microphone, signal | - |
| 5 | Audio, signal | - |
| 5 | Audio, signal | - |
| 5 | Audio, signal | - |
| 5 | Audio, signal | - |
| 5 | Audio, signal | - |
| A26/17 | Head unit | 16E |
| B25/26 | Left hands-free system microphone | 3H |
| B25/27 | Right hands-free system microphone | 3J |
| Code 383 | RAMSES ENTRY communication module | 2F |
| Code 383 | RAMSES ENTRY communication module | 20J |
| Code 384 | RAMSES HIGH communication module | 2F |
| Code 384 | RAMSES HIGH communication module | 20J |
| Code 810 | Premium sound system | 19B |
| Code 810 | Premium sound system | 18F |
| Code 810 | Premium sound system | 1H |
| Code 810 | Premium sound system | 2E |
| Code 853 | "Midline" sound system | 28B |
| Code 853 | "Midline" sound system | 31B |
| Code 853 | "Midline" sound system | 19D |
| Code FS | STATION WAGON | 37J |
| Code FS | STATION WAGON | 36H |
| Ethernet | Ethernet | 13D |
| Flex E | Chassis FlexRay | 6D |
| H20/1 | Left front door tweeter | 29C |
| H20/13 | Left rear door midrange speaker | 27C |
| H20/14 | Right rear door midrange speaker | 27C |
| H20/2 | Right front door tweeter | 29C |
| H20/22 | Center front mid-range speaker (Standard) | 35H |
| H20/22 | Center front mid-range speaker (Standard) | 29C |
| H20/24 | Right front bass speaker | 31C |
| H20/3 | Left front door midrange speaker | 27B |
| H20/4 | Right front door midrange speaker | 27B |
| H21/1 | Left A-pillar surround sound system tweeter | 35H |
| H21/11 | Left rear door surround sound system tweeter | 35J |
| H21/12 | Right rear door surround sound system tweeter | 35K |
| H21/13 | Left rear door surround sound system midrange speaker | 35K |
| H21/14 | Right rear door surround sound system midrange speaker | 35K |
| H21/2 | Right A-pillar surround sound system tweeter | 35H |
| H21/23 | Left front bass speaker | 36G |
| H21/24 | Right front bass speaker | 36G |
| H21/3 | Left front door surround sound system midrange speaker | 35J |
| H21/33 | Left rear midrange speaker | 37K |
| H21/34 | Right rear midrange speaker | 37K |
| H21/4 | Right front door surround sound system midrange speaker | 35J |
| H4/115 | Left front overhead control panel mid-range speaker | 35G |
| H4/116 | Right front overhead control panel mid-range speaker | 35G |
| H4/119 | Left rear roof lining mid-range speaker | 37H |
| H4/120 | Right rear roof lining mid-range speaker | 37J |
| H4/139 | Left front Frontbass speaker | 35E |
| H4/140 | Right front Frontbass speaker | 35E |
| MOST | Media Oriented System Transport | 25H |
| MOST | Media Oriented System Transport | 21H |
| N112/2 | Telematics services communication module | 2F |
| N112/2 | Telematics services communication module | 21K |
| N30/3 | Electronic Stability Program control unit | 2D |
| N40/14 | Subwoofer amplifier | 27E |
| N40/3 | Sound system amplifier control unit | 28K |
| N73/3 | Electronic ignition switch control unit | 8D |
