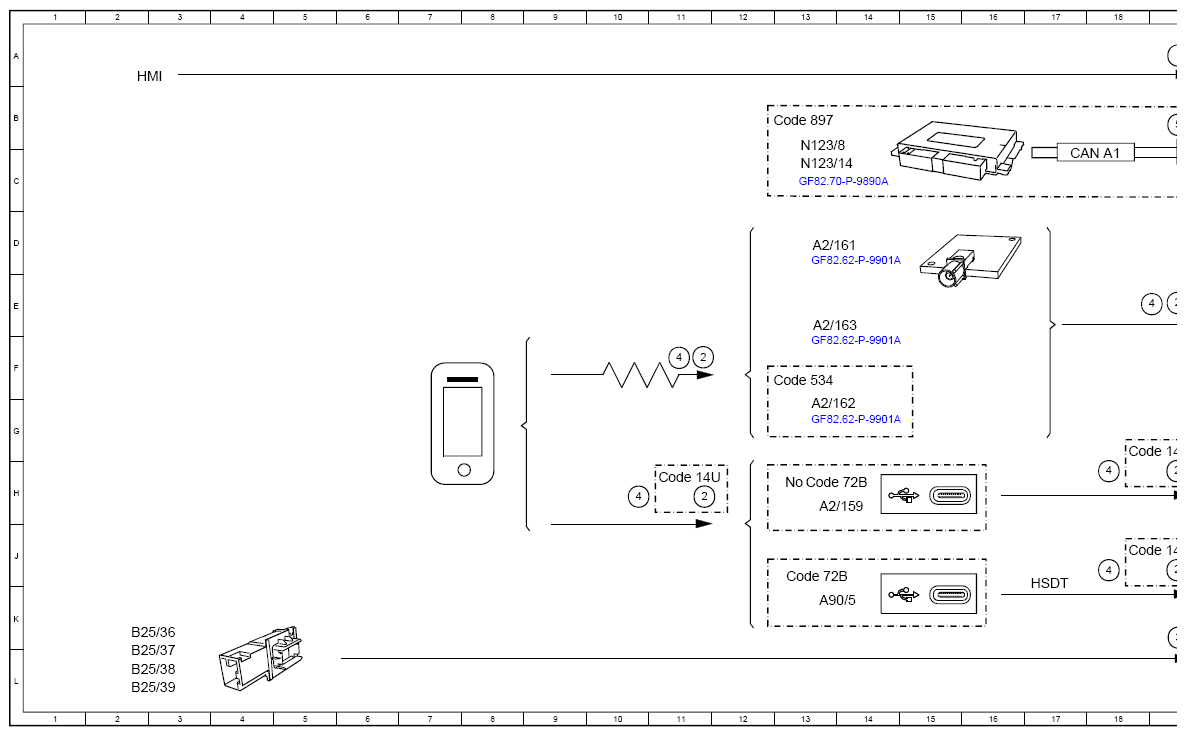

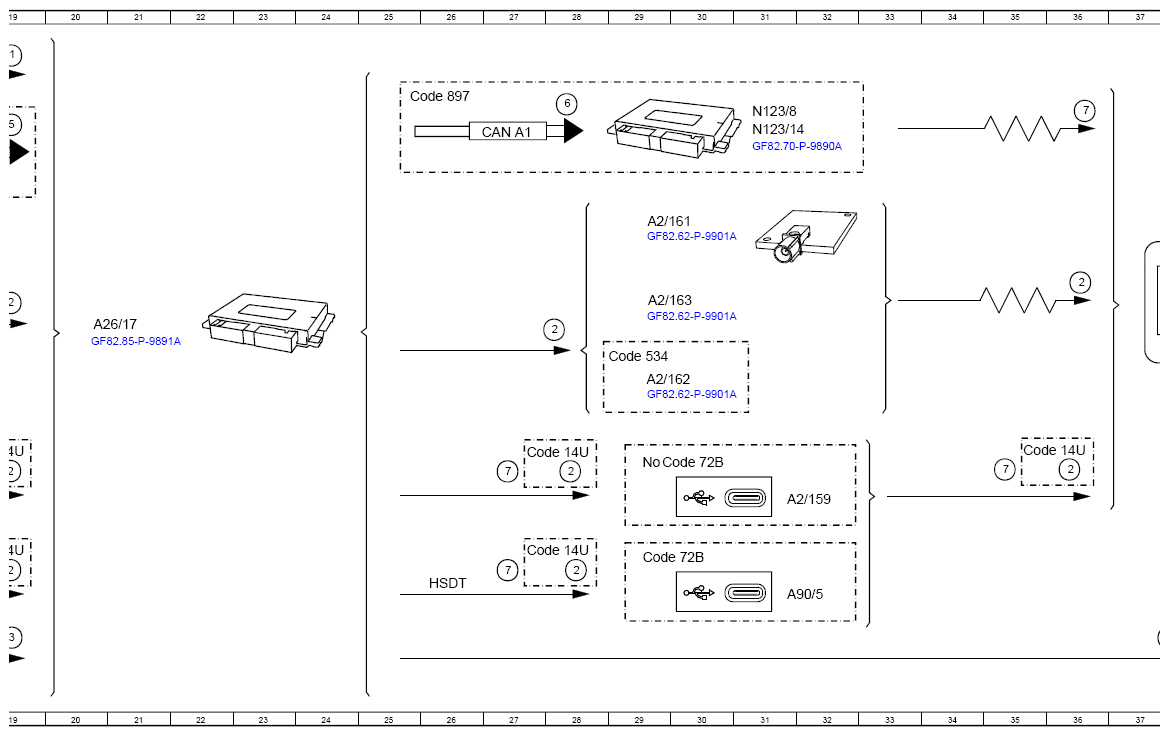

(Function Schematic For Telephony - PE82.70-P-2501-97I)
Model 223 except code 380 (Car telephony package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 2 | Telephone, signal | - |
| 3 | Audio, signal | - |
| 4 | Address data, signal | 11F |
| 4 | Address data, signal | - |
| 4 | Address data, signal | - |
| 4 | Address data, signal | - |
| 4 | Address data, signal | - |
| 5 | Charge level, status | - |
| 6 | Charging voltage and charging current, request | - |
| 7 | Charging current, energy flow | - |
| 7 | Charging current, energy flow | - |
| 7 | Charging current, energy flow | - |
| 7 | Charging current, energy flow | - |
| 8 | Audio, signal | - |
| A2/159 | USB connection | 13H |
| A2/159 | USB connection | 31H |
| A2/161 | Bluetooth®/Wi-Fi antenna | 13D |
| A2/161 | Bluetooth®/Wi-Fi antenna | 29D |
| A2/162 | Bluetooth®/Wi-Fi antenna | 13G |
| A2/162 | Bluetooth®/Wi-Fi antenna | 29F |
| A2/163 | Bluetooth®/Wi-Fi antenna | 13E |
| A2/163 | Bluetooth®/Wi-Fi antenna | 29E |
| A26/17 | Head unit | 20E |
| A90/5 | Multimedia connection unit | 13K |
| A90/5 | Multimedia connection unit | 31K |
| B25/36 | Microphone | 2K |
| B25/37 | Microphone | 2L |
| B25/38 | Microphone | 2L |
| B25/39 | Microphone | 2L |
| CAN A1 | CAN 1 for telematics | 17C |
| CAN A1 | CAN 1 for telematics | 27B |
| Code 14U | Smartphone Integration Package | 18G |
| Code 14U | Smartphone Integration Package | 11H |
| Code 14U | Smartphone Integration Package | 27G |
| Code 14U | Smartphone Integration Package | 35G |
| Code 14U | Smartphone Integration Package | 18J |
| Code 14U | Smartphone Integration Package | 27J |
| Code 534 | Connect 20 Premium (NTG7) | 12F |
| Code 534 | Connect 20 Premium (NTG7) | 29F |
| Code 72B | USB package | 13H |
| Code 72B | USB package | 13J |
| Code 72B | USB package | 29H |
| Code 72B | USB package | 29J |
| Code 897 | Wireless phone charging at front | 12B |
| Code 897 | Wireless phone charging at front | 25B |
| HSDT | High-speed data transmission | 17K |
| HSDT | High-speed data transmission | 26K |
| N123/14 | Mobile phone cradle control unit | 13C |
| N123/14 | Mobile phone cradle control unit | 31B |
| N123/8 | Mobile phone cradle control unit | 13C |
| N123/8 | Mobile phone cradle control unit | 31B |
