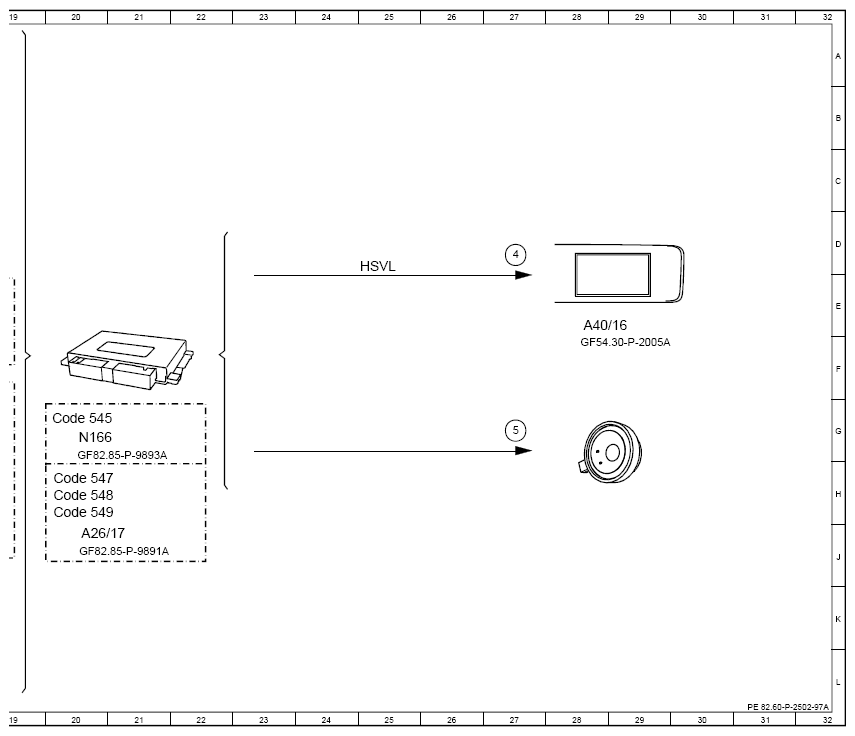

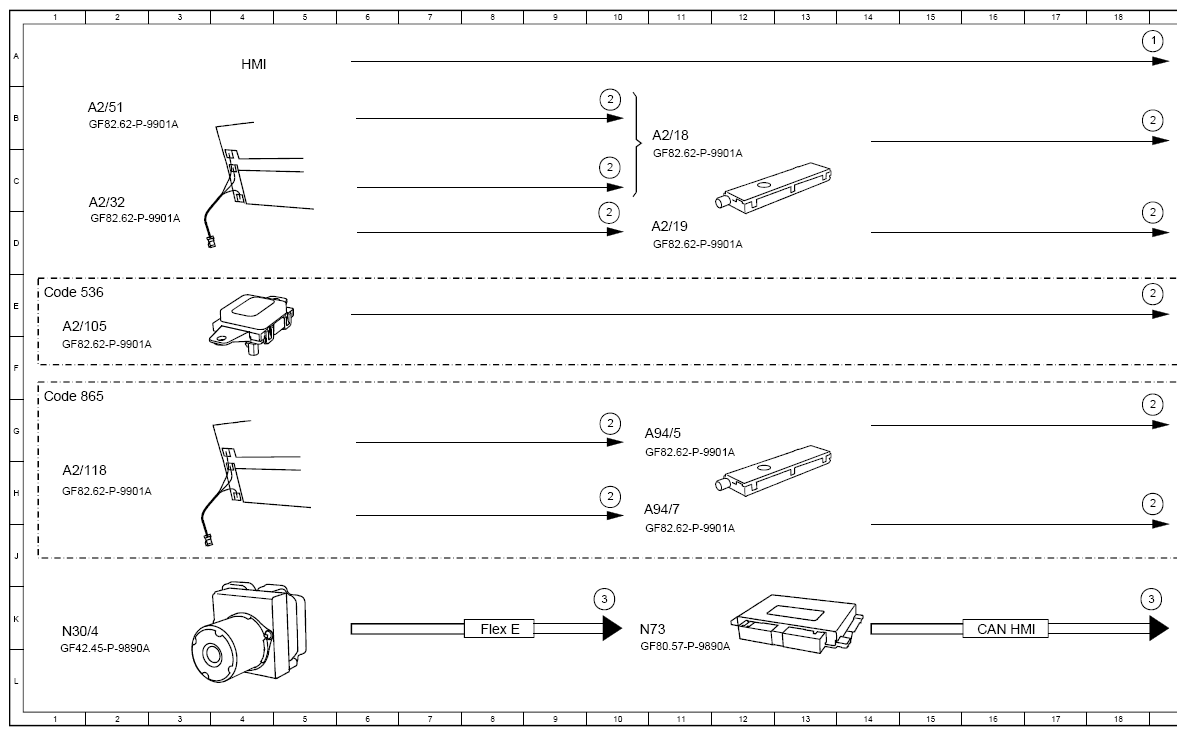

(Function Schematic For Radio/TV Mode - PE82.60-P-2502-97A)
Model 118.6, 177.0, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 2 | Antenna, signal | - |
| 3 | Vehicle speed, signal | - |
| 3 | Vehicle speed, signal | - |
| 4 | Video, signal | - |
| 5 | Audio, signal | - |
| A2/105 | SDARS antenna | 1E |
| A2/118 | Windshield antenna | 1H |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 11B |
| A2/19 | FM2, DAB and TV2 antenna amplifier | 11D |
| A2/32 | Rear window antenna | 2C |
| A2/51 | Rear spoiler antenna | 2B |
| A26/17 | Head unit | 20J |
| A40/16 | Head unit/instrument cluster display cluster | 28E |
| A94/5 | TV 1 antenna amplifier | 10G |
| A94/7 | TV 3 antenna amplifier | 10H |
| CAN HMI | User interface CAN | 16K |
| Code 536 | SIRIUS satellite radio | 1E |
| Code 545 | Connect 5 (NTG6) | 20G |
| Code 547 | Connect 20 Entry (NTG6) | 20H |
| Code 548 | Connect 20 MID (NTG6) | 20H |
| Code 549 | Connect 20 HIGH (NTG6) | 20H |
| Code 865 | TV tuner | 1G |
| Flex E | Chassis FlexRay | 8K |
| HSVL | High-speed video link | 25D |
| N166 | Head unit/instrument cluster control unit | 20G |
| N30/4 | Electronic Stability Program control unit | 1K |
| N73 | Electronic ignition switch control unit | 10K |
