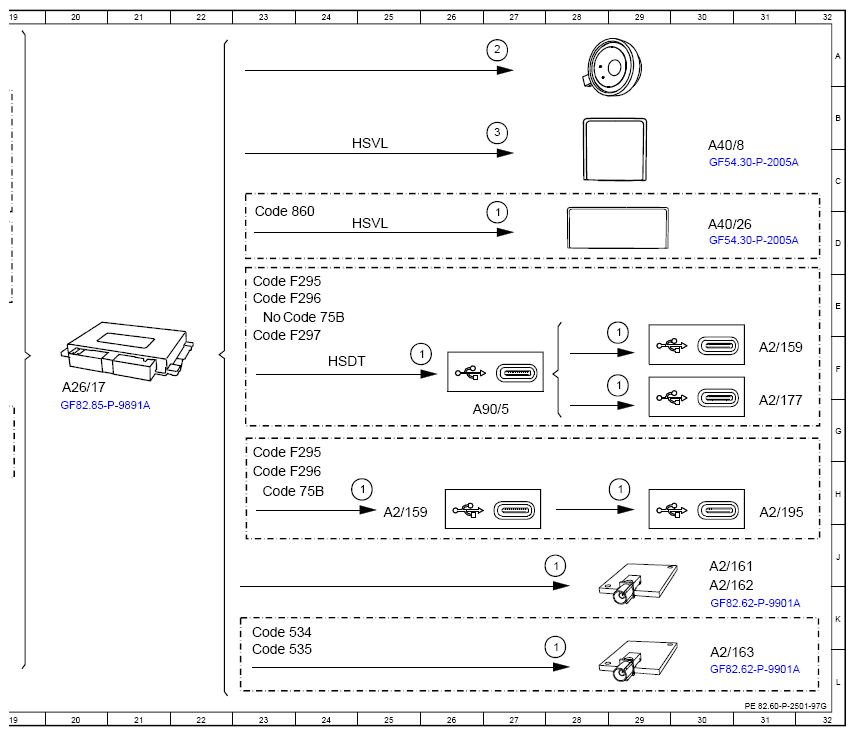

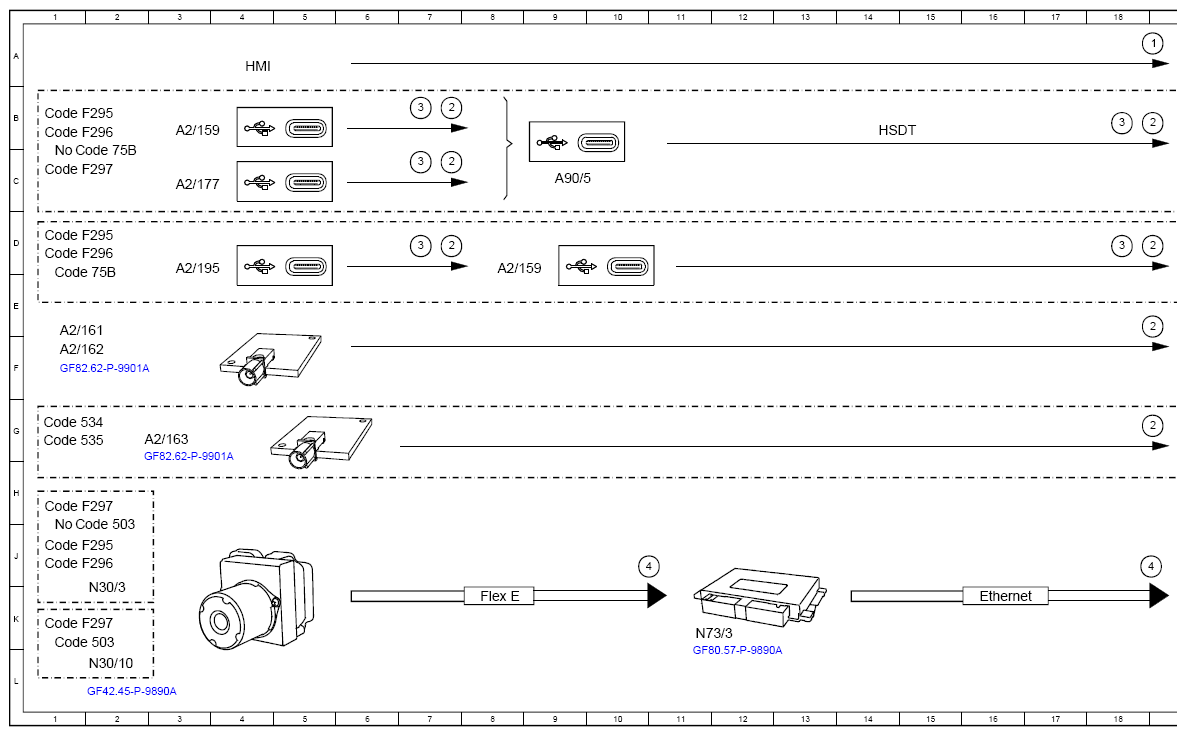

(Function Schematic For Media Mode - PE82.60-P-2501-97G)
Model 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 4 | Vehicle speed, signal | - |
| 4 | Vehicle speed, signal | - |
| A2/159 | USB connection | 3B |
| A2/159 | USB connection | 31F |
| A2/159 | USB connection | 8D |
| A2/159 | USB connection | 25H |
| A2/161 | Bluetooth®/Wi-Fi antenna | 1E |
| A2/161 | Bluetooth®/Wi-Fi antenna | 30J |
| A2/162 | Bluetooth®/Wi-Fi antenna | 1F |
| A2/162 | Bluetooth®/Wi-Fi antenna | 30K |
| A2/163 | Bluetooth®/Wi-Fi antenna | 2G |
| A2/163 | Bluetooth®/Wi-Fi antenna | 30L |
| A2/177 | USB connection | 3C |
| A2/177 | USB connection | 31G |
| A2/195 | Armrest USB module | 3D |
| A2/195 | Armrest USB module | 31H |
| A26/17 | Head unit | 20F |
| A40/26 | Front passenger display | 30D |
| A40/8 | Touchscreen | 30C |
| A90/5 | Multimedia connection unit | 9C |
| A90/5 | Multimedia connection unit | 26G |
| Code 503 | Remote-controlled parking | 1J |
| Code 503 | Remote-controlled parking | 1K |
| Code 534 | Connect 20 Premium (NTG7) | 1G |
| Code 534 | Connect 20 Premium (NTG7) | 23K |
| Code 535 | Connect 20 Premium (NTG7) | 1G |
| Code 535 | Connect 20 Premium (NTG7) | 23L |
| Code 75B | Entry USB package | 1C |
| Code 75B | Entry USB package | IE |
| Code 75B | Entry USB package | 23E |
| Code 75B | Entry USB package | 23H |
| Code 860 | Front passenger display | 23D |
| Code F295 | Model series 295 | 1B |
| Code F295 | Model series 295 | ID |
| Code F295 | Model series 295 | 1J |
| Code F295 | Model series 295 | 23E |
| Code F295 | Model series 295 | 23G |
| Code F296 | Model series 296 | 1J |
| Code F296 | Model series 296 | 1D |
| Code F296 | Model series 296 | 23E |
| Code F296 | Model series 296 | 23H |
| Code F296 | Model series 296 | 1B |
| Code F297 | Model series 297 | 1H |
| Code F297 | Model series 297 | 1K |
| Code F297 | Model series 297 | 1C |
| Code F297 | Model series 297 | 23F |
| Ethernet | Ethernet | 16K |
| Flex E | Chassis FlexRay | 8K |
| HSDT | High-speed data transmission | 14B |
| HSDT | High-speed data transmission | 24F |
| HSVL | High-speed video link | 25B |
| HSVL | High-speed video link | 25D |
| N30/10 | Electronic Stability Program control unit | 2L |
| N30/3 | Electronic Stability Program control unit | 2K |
| N73/3 | Electronic ignition switch control unit | 11K |
