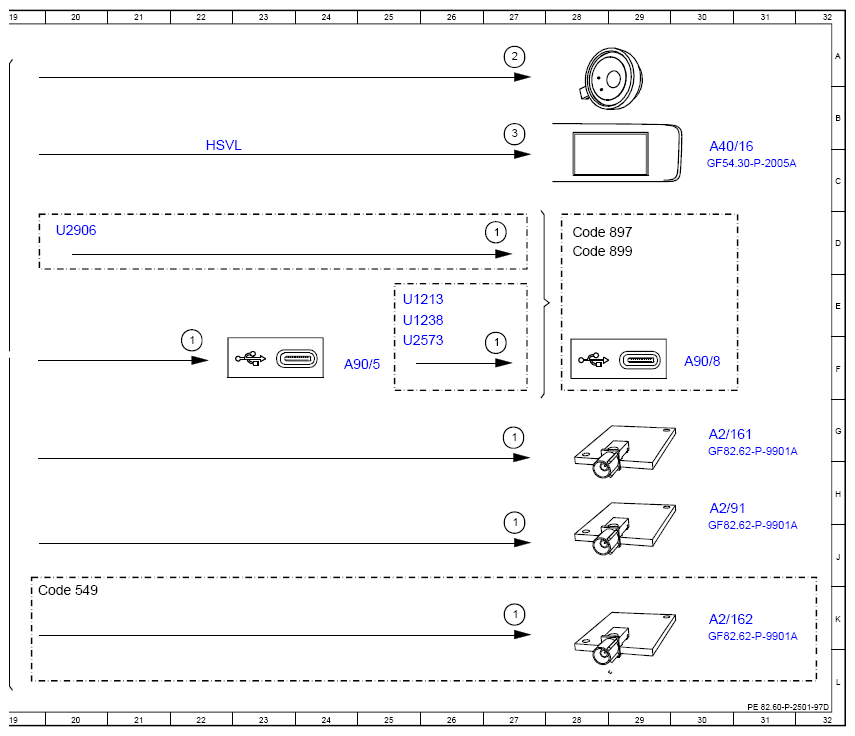

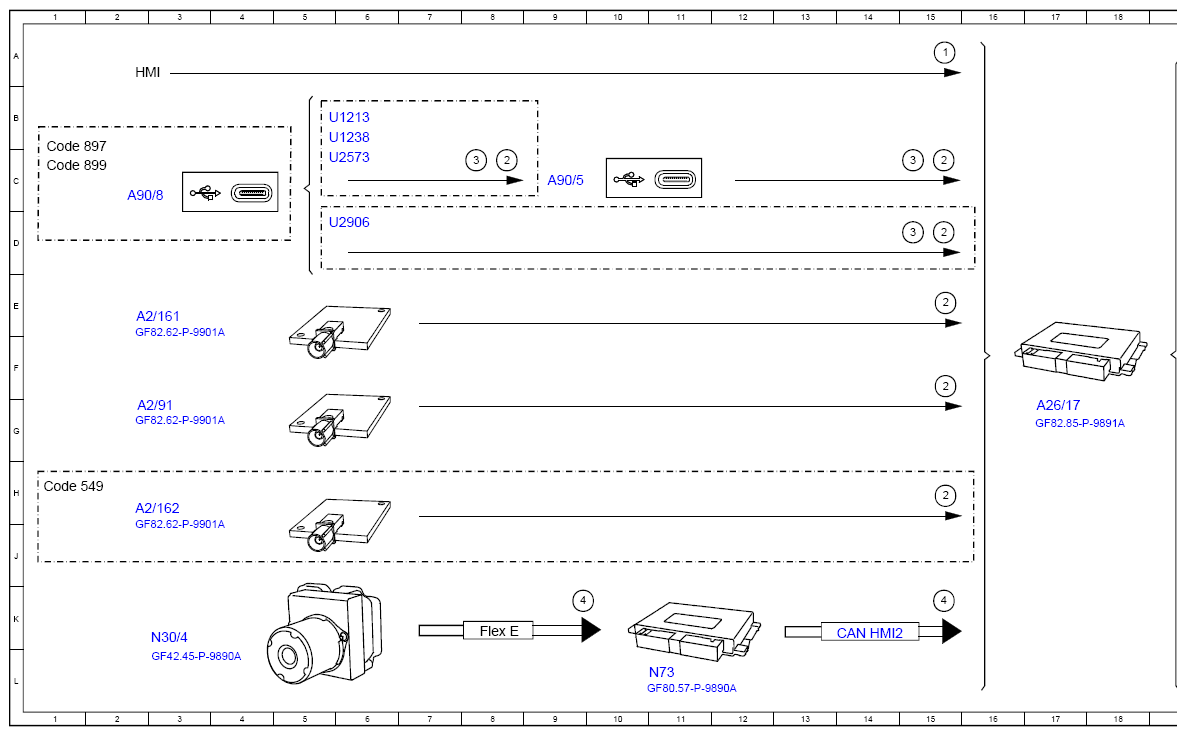

(Function Schematic For Media Mode - PE82.60-P-2501-97D)
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 4 | Vehicle speed, signal | - |
| 4 | Vehicle speed, signal | - |
| A2/161 | WLAN antenna 1 | 2E |
| A2/161 | WLAN antenna 1 | 30G |
| A2/162 | Wi-Fi antenna 2 | 2H |
| A2/162 | Wi-Fi antenna 2 | 30K |
| A2/91 | Bluetooth® antenna | 2G |
| A2/91 | Bluetooth® antenna | 30H |
| A26/17 | Head unit | 17G |
| A40/16 | Head unit/instrument cluster display cluster | 30C |
| A90/5 | Multimedia connection unit | 9C |
| A90/5 | Multimedia connection unit | 24F |
| A90/8 | Front multimedia connection unit 2 | 2C |
| A90/8 | Front multimedia connection unit 2 | 30F |
| CAN HMI2 | User interface CAN 2 | 14K |
| Code 549 | Connect 20 HIGH (NTG6) | 1H |
| Code 549 | Connect 20 HIGH (NTG6) | 19K |
| Code 897 | Wireless mobile phone charging | 1C |
| Code 897 | Wireless mobile phone charging | 28D |
| Code 899 | Wireless phone charging at front and antenna | 1C |
| Code 899 | Wireless phone charging at front and antenna | 28D |
| Flex E | Chassis FlexRay | 8K |
| HSVL | High-speed video link | 22C |
| N30/4 | Electronic Stability Program control unit | 3K |
| N73 | Electronic ignition switch control unit | 11L |
| U1213 | Valid for model 213 | 5B |
| U1213 | Valid for model 213 | 25E |
| U1238 | Valid for model 238 | 5B |
| U1238 | Valid for model 238 | 25E |
| U2573 | Valid for model 257.3 | 5C |
| U2573 | Valid for model 257.3 | 25F |
| U2906 | Valid for model 290.6 | 5D |
| U2906 | Valid for model 290.6 | 20D |
