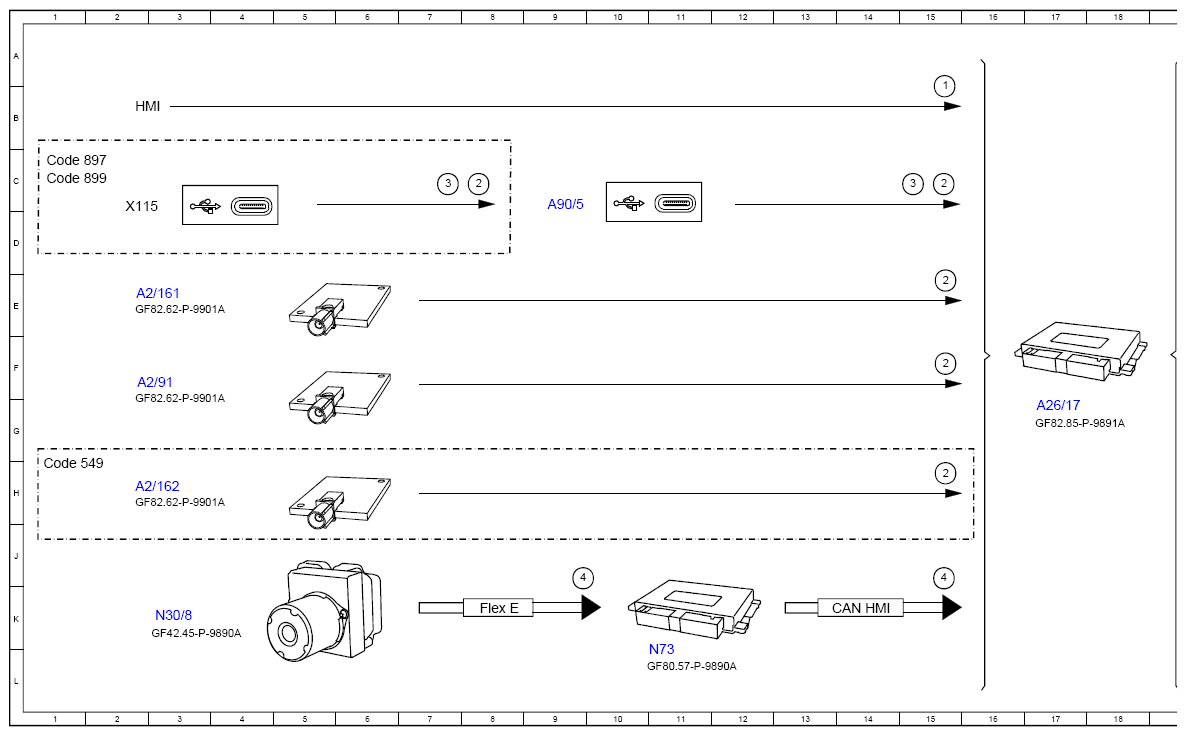

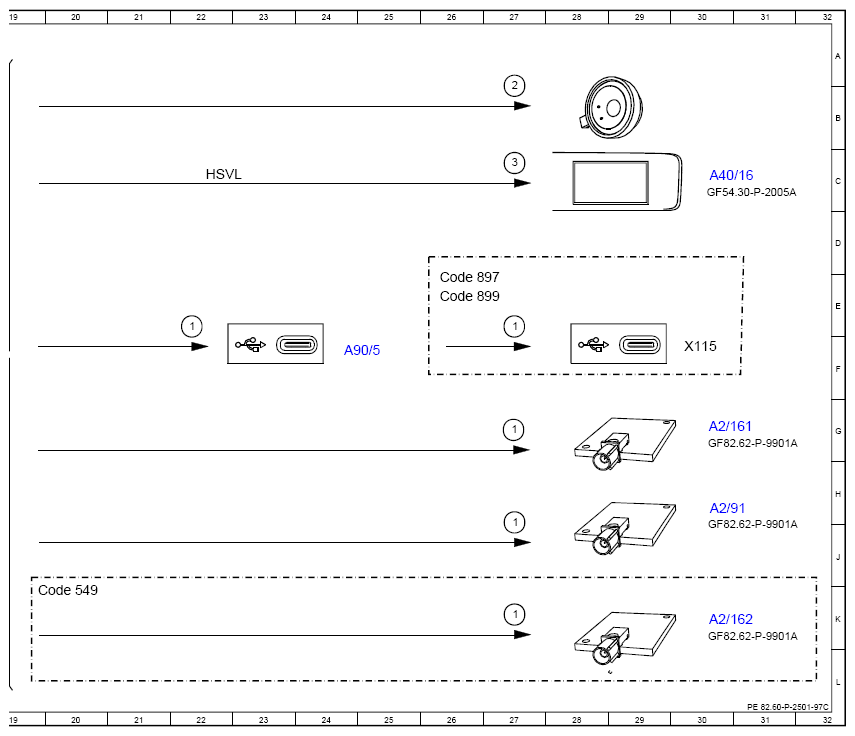

(Function Schematic For Media Mode - PE82.60-P-2501-97C)
Model 293
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 1 | Operation, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 2 | Audio, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 3 | Video, signal | - |
| 4 | Vehicle speed, signal | 15J |
| 4 | Vehicle speed, signal | - |
| A2/161 | WLAN antenna 1 | 2E |
| A2/161 | WLAN antenna 1 | 30G |
| A2/162 | Wi-Fi antenna 2 | 2H |
| A2/162 | Wi-Fi antenna 2 | 30K |
| A2/91 | Bluetooth®/Wi-Fi antenna | 2F |
| A2/91 | Bluetooth®/Wi-Fi antenna | 30H |
| A26/17 | Head unit | 17G |
| A40/16 | Head unit/instrument cluster display cluster | 30C |
| A90/5 | Multimedia connection unit | 9C |
| A90/5 | Multimedia connection unit | 24F |
| CAN HMI | User interface CAN | 14K |
| Code 549 | Connect 20 HIGH (NTG6) | 1H |
| Code 549 | Connect 20 HIGH (NTG6) | 19K |
| Code 897 | Wireless mobile phone charging | 1C |
| Code 897 | Wireless mobile phone charging | 26E |
| Code 899 | Wireless phone charging at front and antenna | 1C |
| Code 899 | Wireless phone charging at front and antenna | 26E |
| Flex E | Chassis FlexRay | 8K |
| HSVL | High-speed video link | 22C |
| N30/8 | Regenerative braking system control unit | 3K |
| N73 | Ignition lock control unit | 11L |
| X115 | USB electrical connectors | 2C |
| X115 | USB electrical connector | 30F |
