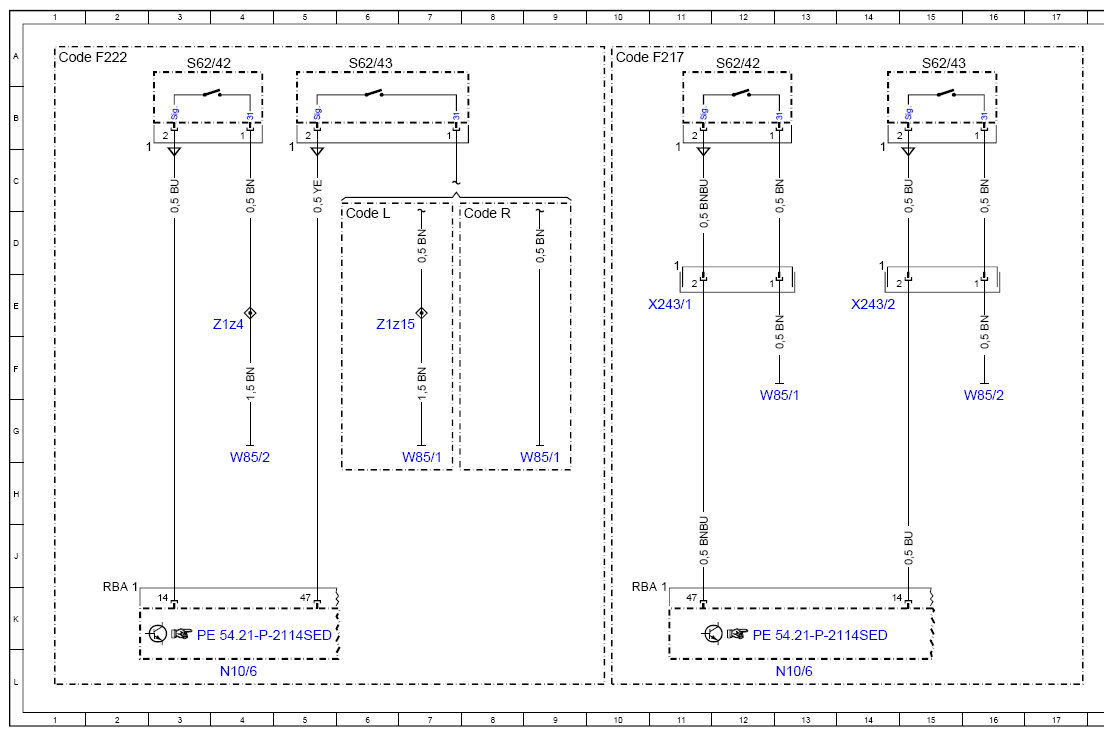

Wiring Diagram For Engine Hood Contact Switch - PE82.00-P-2005-97SEA
Model 217, 222 as of model year 2018 S62/42 right, contact switch, engine hood, left S62/43
| Code: | Designation: | Position: |
|---|---|---|

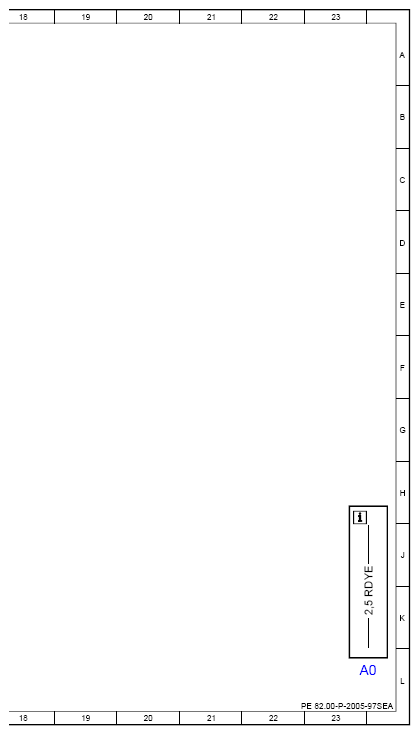

| A0 | Use of wiring diagrams | 23L |
| Code F217 | MODEL SERIES 217 | 10A |
| Code F222 | MODEL SERIES 222 | 1A |
| Code L | LEFT-HAND DRIVE | 6D |
| Code R | RIGHT-HAND DRIVE | 8D |
| N10/6 | Front SAM control unit | 4L |
| N10/6 | Front SAM control unit | 13L |
| S62/42 | Right engine hood contact switch | 3A |
| S62/42 | Right engine hood contact switch | 12A |
| S62/43 | Left engine hood contact switch | 6A |
| S62/43 | Left engine hood contact switch | 15A |
| W85/1 | Driver footwell frame floor assembly ground point | 7H |
| W85/1 | Driver footwell frame floor assembly ground point | 9H |
| W85/1 | Driver footwell frame floor assembly ground point | 12G |
| W85/2 | Front passenger footwell frame floor assembly ground point | 4H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 16G |
| X243/1 | Left engine hood contact switch electrical connector | 11E |
| X243/2 | Right engine hood contact switch electrical connector | 14E |
| Z1z15 | Circuit 31 connector sleeve | 6E |
| Z1z4 | Circuit 31 connector sleeve | 4E |
