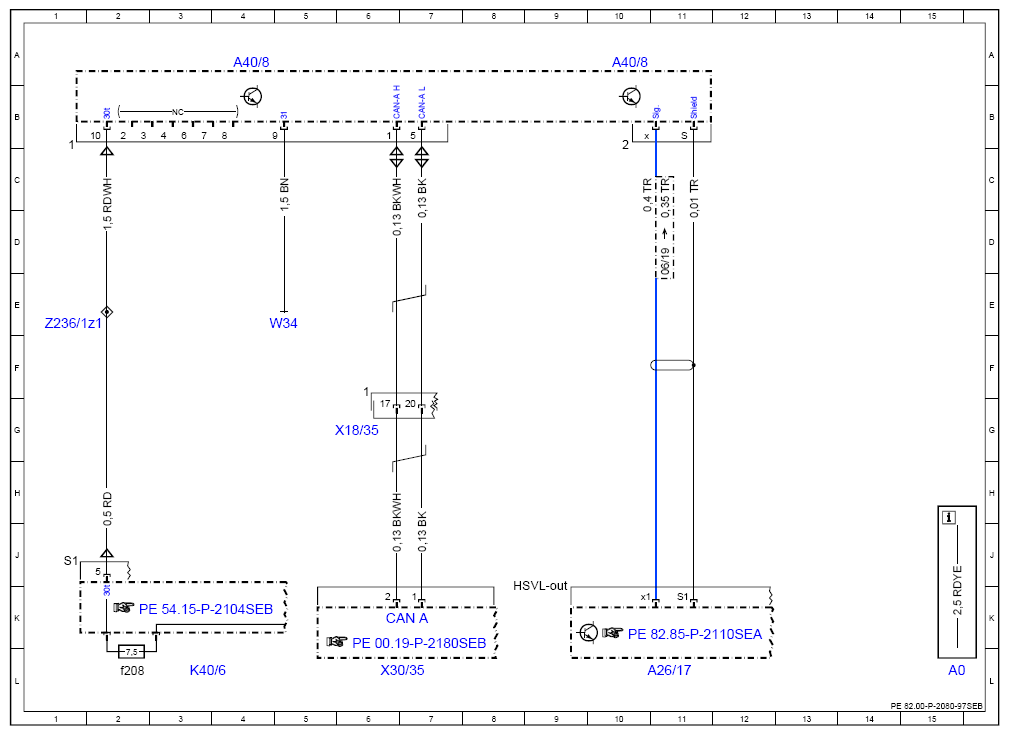

Wiring Diagram For Audio/COMAND Display - PE82.00-P-2080-97SEB
Model 217, 222 as of model year 2018 Control unit A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A26/17 | Head unit | 11L |
| A40/8 | Audio/COMAND display | 4A |
| A40/8 | Audio/COMAND display | 10A |
| CAN A | Telematics CAN | 6K |
| K40/6 | Driver-side fuse and relay module | 3L |
| K40/6f208 | Fuse 208 | 2L |
| W34 | Left footwell ground point | 5E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 6G |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 6L |
| Z236/1z1 | COMAND fan motor and circuit 30 connector sleeve | 1E |
