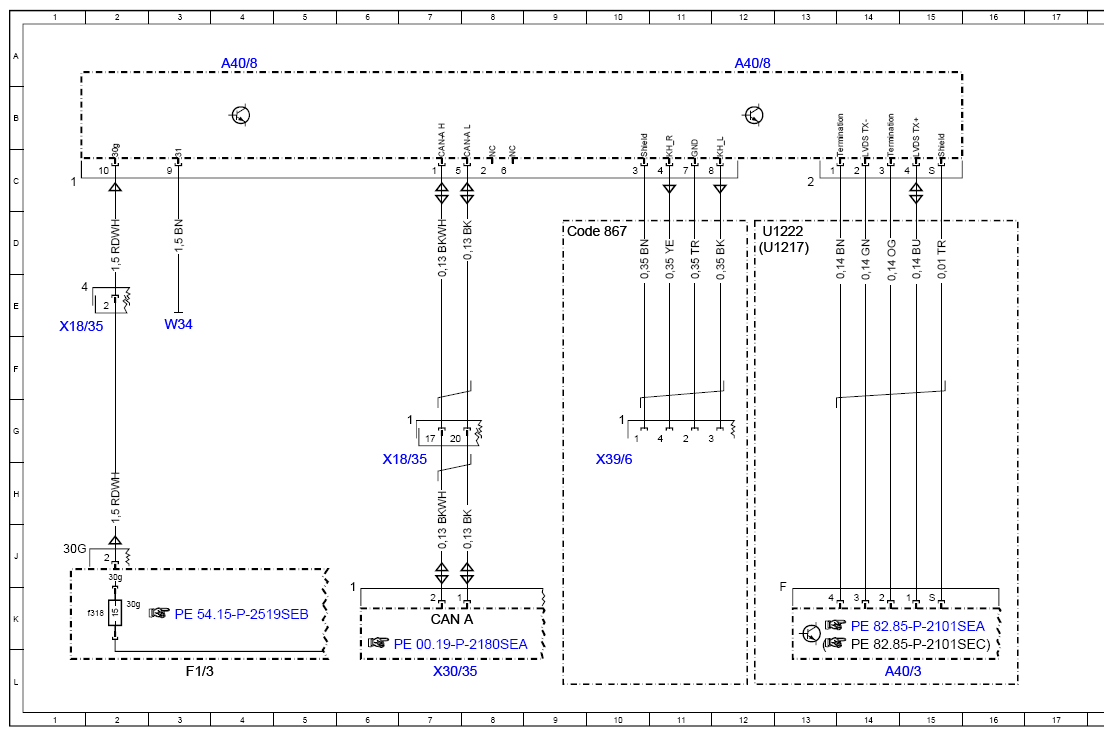

Wiring Diagram For Audio/COMAND Display - PE82.00-P-2080-97SEA
Model 217 up to model year 2018 Control unit A40/8
Model 222 up to model year 2018 Control unit A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A40/3 | COMAND control unit | 14L |
| A40/8 | Audio/COMAND display | 4A |
| A40/8 | Audio/COMAND display | 12A |
| CAN A | Telematics CAN | 7K |
| Code 867 | SPLITVIEW | 9D |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f318 | Fuse 318 | 2K |
| U1217 | Valid for model series 217 | 12D |
| U1222 | Valid for model series 222 | 12D |
| W34 | Left footwell ground point | 3E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 1E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 7H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 7L |
| X39/6 | Headphones electrical connector (cabled) | 10H |
