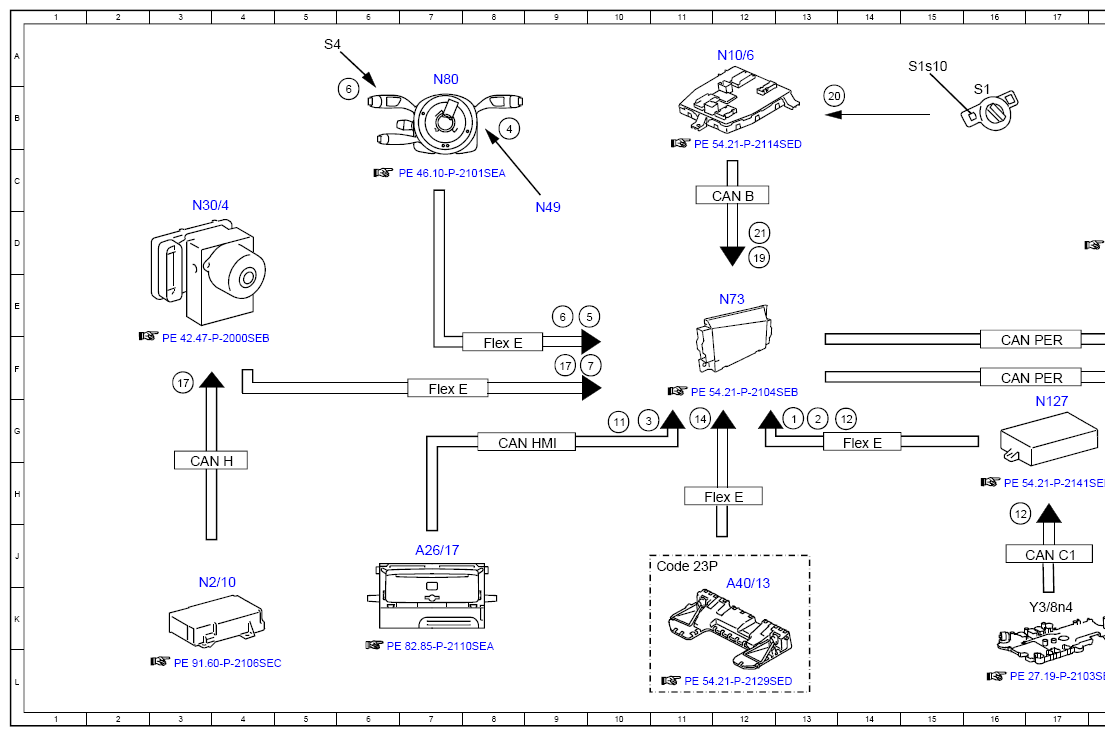

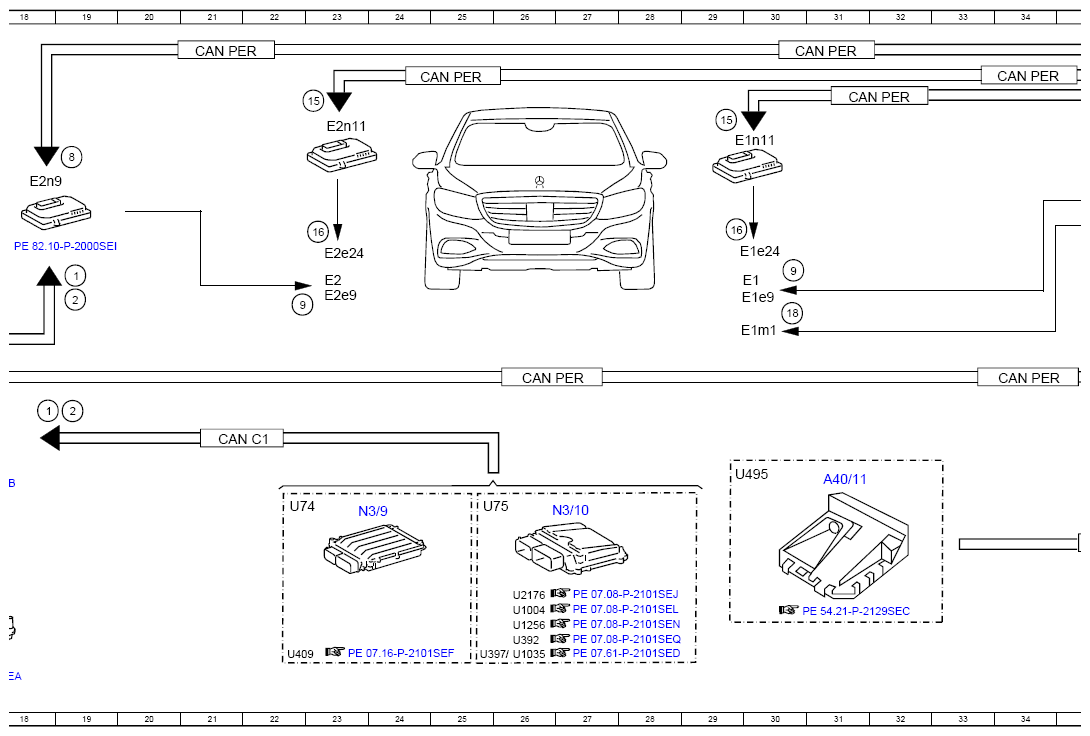

Function Schematic For Intelligent Light System - PE82.10-P-2067-97SEB
Model 222 as of model year 2018 with code 640 (SAE dynamic LED headlamps, right-hand traffic)
Model 222 as of model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 222 as of model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 19E |
| 1 | Engine running, signal | 36D |
| 1 | Engine running, signal | 13G |
| 1 | Engine running, signal | 19G |
| 11 | Map data, signal | 10G |
| 11 | Map data, signal | 36G |
| 12 | Speed level, status | 16H |
| 12 | Speed level, status | 14G |
| 13 | Reverse gear, status | 36D |
| 14 | Environmental information, data | 11G |
| 14 | Environmental information, data | 36E |
| 14 | Environmental information, data | 38D |
| 15 | Intelligent Light System light distribution, requirement | 23B |
| 15 | Intelligent Light System light distribution, requirement | 29B |
| 16 | Adaptive high beam, control | 23C |
| 16 | Adaptive high beam, control | 29D |
| 17 | Speed, yaw rate and lateral acceleration, signal | 3F |
| 17 | Speed, yaw rate and lateral acceleration, signal | 36E |
| 17 | Speed, yaw rate and lateral acceleration, signal | 9F |
| 18 | Servomotor headlight range regulation, control | 30E |
| 19 | Wiper status, signal | 36F |
| 19 | Wiper status, signal | 12D |
| 2 | Drive train ready for operation, signal | 36E |
| 2 | Drive train ready for operation, signal | 13G |
| 2 | Drive train ready for operation, signal | 19G |
| 2 | Drive train ready for operation, signal | 19D |
| 20 | Rear fog light button, status | 13B |
| 21 | Rear fog light, requirement | 36F |
| 21 | Rear fog light, requirement | 13C |
| 3 | Intelligent Light System, status | 10G |
| 3 | Intelligent Light System, status | 36E |
| 4 | Steering wheel angle sensor, signal | 8B |
| 5 | Steering wheel angle, signal | 36F |
| 5 | Steering wheel angle, signal | 10E |
| 6 | Combination switch, status | 6B |
| 6 | Combination switch, status | 36F |
| 6 | Combination switch, status | 9E |
| 7 | Wheel speed, signal | 36F |
| 7 | Wheel speed, signal | 10F |
| 8 | Synchronization, signal | 19C |
| 9 | Turning lights, control | 30E |
| 9 | Turning lights, control | 22E |
| A26/17 | Head unit | 7J |
| A40/11 | Multifunction camera mono | 31H |
| A40/13 | Multifunction camera stereo | 12K |
| CAN B | Interior CAN | 12C |
| CAN C1 | Drive CAN | 17J |
| CAN C1 | Drive CAN | 21G |
| CAN H | Driving dynamics CAN | 3H |
| CAN HMI | User interface CAN | 8G |
| CAN PER | Peripheral CAN | 16F |
| CAN PER | Peripheral CAN | 16F |
| CAN PER | Peripheral CAN | 26F |
| CAN PER | Peripheral CAN | 34F |
| CAN PER | Peripheral CAN | 21A |
| CAN PER | Peripheral CAN | 31A |
| CAN PER | Peripheral CAN | 25A |
| CAN PER | Peripheral CAN | 34A |
| CAN PER | Peripheral CAN | 31B |
| CAN PER | Peripheral CAN | 35J |
| Code 23P | Driving assistance package | 11Y |
| E1 | Lighting unit, front left | 29E |
| E1e24 | Adaptive high beam on the front left | 29D |
| E1e9 | Left turning light | 29E |
| E1m1 | Servomotor for headlight range adjustment on the left | 29E |
| E1n11 | Control unit LED matrix light unit, front left | 29B |
| E1n9 | Left headlight control unit | 36C |
| E2 | Lighting unit, front right | 23E |
| E2e24 | Adaptive high beam on the front right | 23D |
| E2e9 | Turning light right | 23E |
| E2n11 | Control unit LED matrix light unit, front right | 23B |
| E2n9 | Headlight control unit, right | 18C |
| Flex E | Chassis FlexRay | 7F |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 8F |
| Flex E | Chassis FlexRay | 12H |
| N10/6 | SAM control unit, front | 12A |
| N127 | Powertrain control unit | 17G |
| N2/10 | Supplemental Restraint System control unit | 3Y |
| N3/10 | ME control unit | 27H |
| N3/9 | CDI control unit | 23H |
| N30/4 | Electronic stability program control unit | 3C |
| N49 | Steering wheel angle sensor | 9D |
| N73 | Electronic ignition lock control unit | 12E |
| N80 | Control unit casing pipe module | 7A |
| S1 | External lighting switch | 16B |
| S1s10 | Rear fog light button | 15A |
| S4 | Combination switch | 5A |
| U1004 | Valid for engine 177 | 26K |
| U1035 | Valid for gas engine 279 | 26L |
| U1256 | Valid for engine 256 | 26K |
| U2176 | Valid for engine 176 | 26K |
| U392 | Valid for gas engine 276 except gas engine 276.8 | 26K |
| U397 | Valid for gas engine 277 | 25L |
| U409 | Valid for diesel engine 656 | 22L |
| U495 | Not valid for driving assistance package | 29H |
| U74 | Valid for diesel engines | 22H |
| U75 | Valid for gas engines | 25H |
| Y3/8n4 | Control unit for fully integrated transmission control | 17K |
