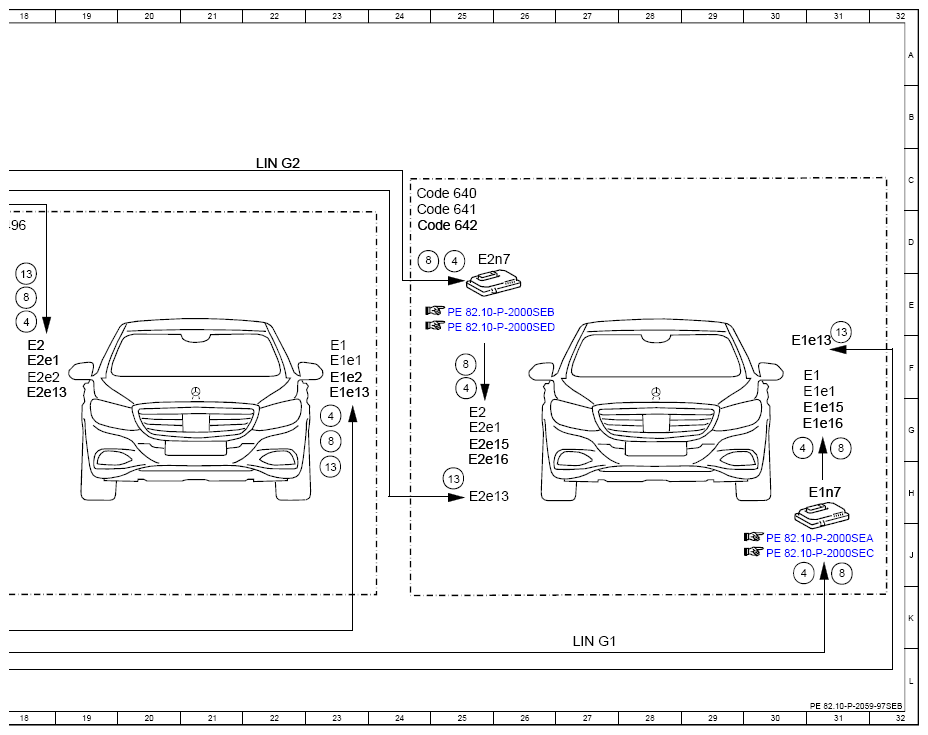

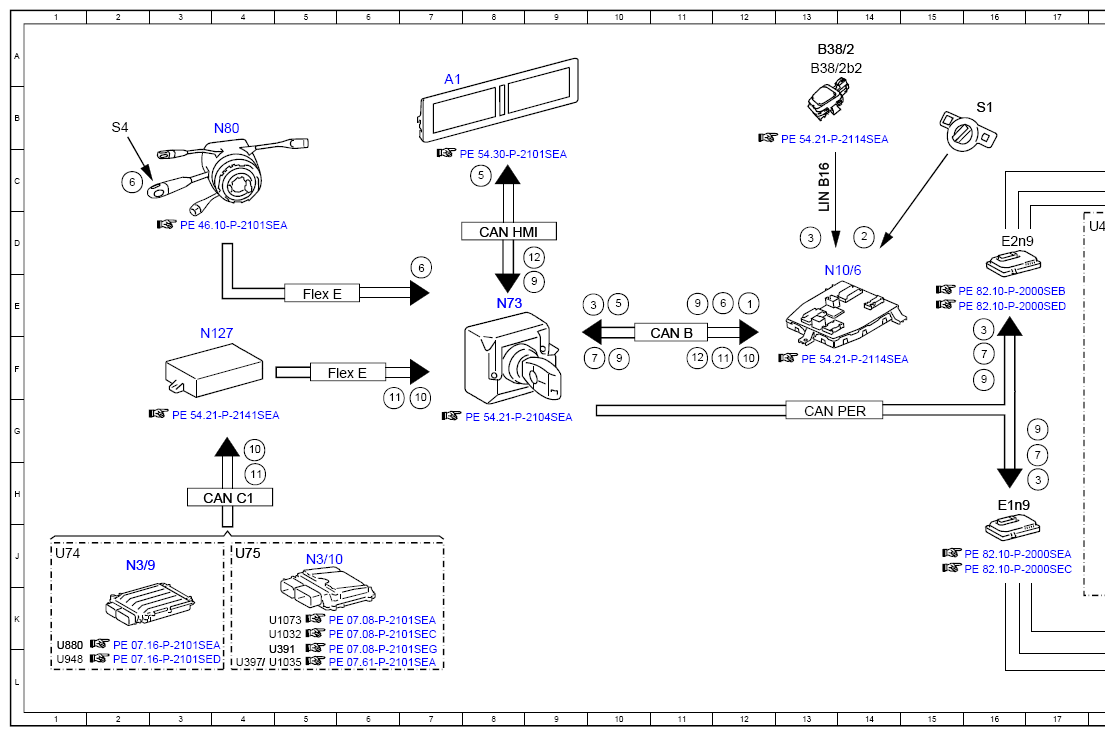

Electrical Function Schematic For Driving Light Actuation - PE82.10-P-2059-97SEB
Model 217 Model 222 except code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 641 (Dynamic LED headlamps, left-hand traffic) except code 642 (Dynamic LED headlamps, right-hand traffic)
Model 222 up to model year 2018 with code 640 (SAE dynamic LED headlamps, right-hand traffic)
Model 222 up to model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 222 up to model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12E |
| 10 | Engine running, signal | 7G |
| 10 | Engine running, signal | 12F |
| 10 | Engine running, signal | 4G |
| 11 | Drivetrain operational, signal | 6G |
| 11 | Drivetrain operational, signal | 12F |
| 11 | Drivetrain operational, signal | 4H |
| 12 | Vehicle speed, signal | 9D |
| 12 | Vehicle speed, signal | 11F |
| 13 | Daytime running lights, actuation | 25H |
| 13 | Daytime running lights, actuation | 31F |
| 13 | Daytime running lights, actuation | 23H |
| 13 | Daytime running lights, actuation | 18E |
| 2 | Exterior lights switch, status | 14D |
| 3 | Low beams, request | 10E |
| 3 | Low beams, request | 16E |
| 3 | Low beams, request | 17H |
| 3 | Low beams, request | 13D |
| 4 | Low beams, actuation | 25F |
| 4 | Low beams, actuation | 30G |
| 4 | Low beams, actuation | 23G |
| 4 | Low beams, actuation | 18E |
| 4 | Low beams, actuation | 30J |
| 4 | Low beams, actuation | 25D |
| 5 | Instrument cluster indicator, request | 8C |
| 5 | Instrument cluster indicator, request | 10E |
| 6 | Combination switch, status | 2C |
| 6 | Combination switch, status | 7D |
| 6 | Combination switch, status | 12E |
| 7 | High beams, request | 10F |
| 7 | High beams, request | 16F |
| 7 | High beams, request | 17G |
| 8 | High beams, actuation | 25F |
| 8 | High beams, actuation | 31G |
| 8 | High beams, actuation | 23G |
| 8 | High beams, actuation | 18E |
| 8 | High beams, actuation | 31J |
| 8 | High beams, actuation | 24D |
| 9 | Daytime running lights, request | 9E |
| 9 | Daytime running lights, request | 10F |
| 9 | Daytime running lights, request | 11E |
| 9 | Daytime running lights, request | 16F |
| 9 | Daytime running lights, request | 17G |
| A1 | Instrument cluster | 7A |
| B38/2 | Rain/light sensor with additional functions | 13A |
| B38/2b2 | Light sensor | 13A |
| CAN B | Interior CAN | 11F |
| CAN C1 | Drive train CAN | 4H |
| CAN HMI | User interface CAN | 8D |
| CAN PER | Peripherals CAN | 13G |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 24C |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 24D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 24D |
| E1 | Left front lamp unit | 23F |
| E1 | Left front lamp unit | 30F |
| E1e1 | Left high beam | 23F |
| E1e1 | Left high beam | 30F |
| E1e13 | Left parking light, standing light and daytime running light | 23F |
| E1e13 | Left parking light, standing light and daytime running light | 30F |
| E1e15 | Left low beam (short range) | 30G |
| E1e16 | Left low beam (long range) | 30G |
| E1e2 | Left low beam | 23F |
| E1n7 | Actuation module for left front exterior lights LED | 31H |
| E1n9 | Left headlamp control unit | 16H |
| E2 | Right front lamp unit | 18F |
| E2 | Right front lamp unit | 25G |
| E2e1 | Right high beam | 18F |
| E2e1 | Right high beam | 25G |
| E2e13 | Right parking light, standing light and daytime running light | 18F |
| E2e13 | Right parking light, standing light and daytime running light | 25H |
| E2e15 | Right low beam (short range) | 25G |
| E2e16 | Right low beam (long range) | 25H |
| E2e2 | Right low beam | 18F |
| E2n7 | Actuation module for right front exterior lights LED | 25D |
| E2n9 | Right headlamp control unit | 16D |
| Flex E | Chassis FlexRay | 6F |
| Flex E | Chassis FlexRay | 5E |
| LIN B16 | Rain and light sensor LIN | 13C |
| LIN G1 | Left headlamp LIN | 27K |
| LIN G2 | Right headlamp LIN | 22C |
| N10/6 | Front SAM control unit | 13E |
| N127 | Drivetrain control unit | 3F |
| N3/10 | ME-SFI [ME] control unit | 5J |
| N3/9 | CDI control unit | 2J |
| N73 | Electronic ignition switch control unit | 8E |
| N80 | Steering column module control unit | 4B |
| S1 | Exterior lights switch | 16B |
| S4 | Combination switch | 2B |
| U1032 | Valid for engine 278 and 157 | 4K |
| U1035 | Valid for gasoline engine 279 | 4L |
| U1073 | Valid for gasoline engine 276.9 | 4K |
| U391 | Valid for gasoline engine 276.8 | 4L |
| U397 | Valid for gasoline engine 277 | 4L |
| U496 | Not valid for Intelligent Light System | 18D |
| U74 | Valid for diesel engines | 1J |
| U75 | Valid for gasoline engines | 4J |
| U880 | Valid for diesel engine 642 | 1K |
| U948 | Valid for diesel engine 651 | 1L |
