Retrofit Holder For CA Module Card Reader - AZ82.60-P-0032-02LF

Model 222

Topical note

Information on preventing damage to electronic components due to electrostatic discharge

Mask off area for mounting bracket for CA module card reader on trunk recess trim (2) with adhesive tape.
1. Model 222
  except code 487 (MAGIC BODY CONTROL)

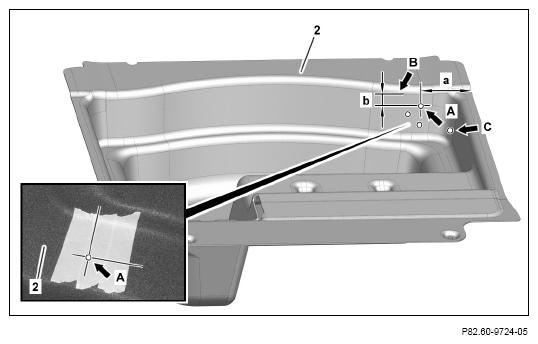

  Mark hole (arrow A).

  Dimensions:

  a = 110 mm

  b = 40 mm
2. Model 222
  with code 487 (MAGIC BODY CONTROL)

  Mark hole (arrow A) as shown.

  Dimensions:

  a = 170 mm

  b = 40 mm
Courtesy of MERCEDES-BENZ USA

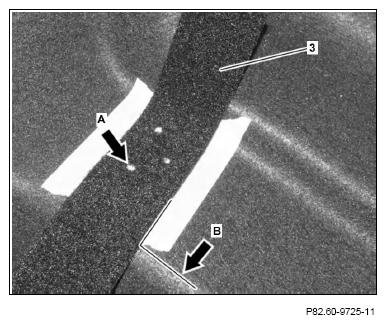

Position velcro strip (3) on previously marked hole (arrow A), align and mark remaining holes according to velcro strip (3).
Velcro strip (3) must be aligned at a right angle to reference edge (arrow B).
Remove velcro strip (3).
Drill marked holes with dia. 6 mm.

Courtesy of MERCEDES-BENZ USA

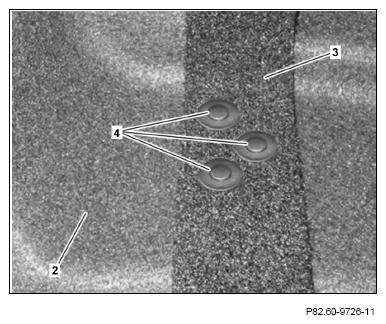

Fasten velcro strip (3) with expansion rivets (4) on trunk recess trim (2).
Use expansion rivets (4) with dia. 6 mm. Expansion rivets (4) are included in scope of delivery.

Courtesy of MERCEDES-BENZ USA

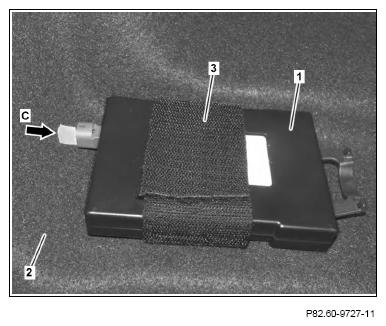

Fasten CA module card reader (1) to trunk recess trim (2) by means of velcro strip (3).
Mark hole (arrow C) for electrical wiring harness passage for CA module card reader (1).
Remove CA module card reader (1).
Drill marked hole (arrow C) with dia. 6 mm.

Courtesy of MERCEDES-BENZ USA

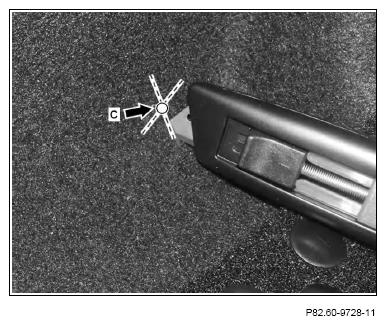

Cut in previously drilled hole (arrow C) approx. 4 mm at four points (dashed lines).
