Retrofit Electrical Wiring Harness For CA Module Card Reader - AZ82.60-P-0032-01LF
Model 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A |

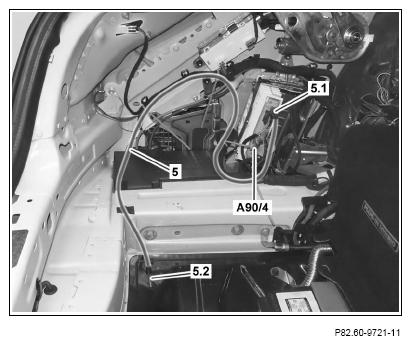

- Connect blue 1-pin connector (5.1) at tuner unit (A90/4).
- Route wiring harness (5) along existing lines to CA module card reader installation location.
Note extended length of wiring harness (5) for connection at CA module card reader.
Blue 1-pin connector (5.2) is connected to CA module card reader at a later point in time.
