Retrofit DAB Tuner - AZ82.60-P-0031LF

Model 222 with code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea)

Only on vehicles in which code 537 (Digital radio (DAB)) has been deleted from VeDoc

Courtesy of MERCEDES-BENZ USA

Topical note	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove trunk recess trim.
			AR68.30-P-4600LF
2	Remove left trim from trunk.
			AR68.30-P-4600LF

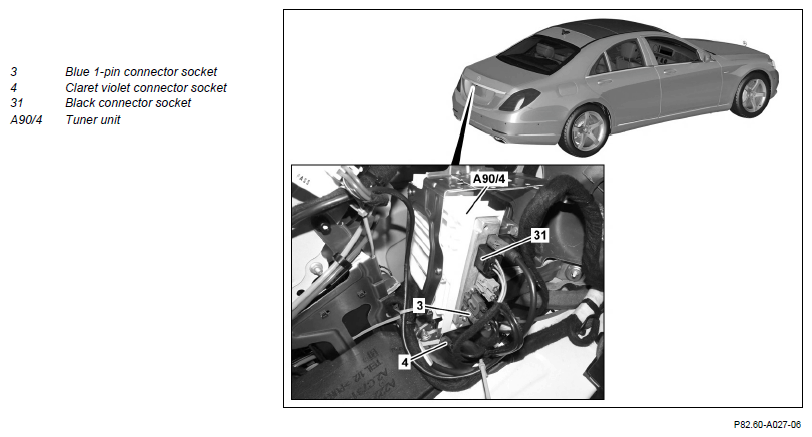

3	Remove blue 1-pin connector socket (3) from tuner unit (A90/4).
4	Expose strapped-down claret violet connector socket (4).	Claret violet connector socket (4) was strapped down when converting to code 197 (Conversion to DVB-T2 with ext. card reader/HD-TV Korea).
5	Remove black connector socket (31) from tuner unit (A90/4).
	Install
6	Expand MOST ring.		AZ82.60-P-0001-05LF
7	Convert plug housing on fiber-optic cable wiring harness.		AZ82.60-P-0001-06LF
8	Attach foil to DAB tuner.		AZ82.60-P-0031-01LF
		Binder Duotec® Pilz in Pilz Klett - with adhesive 32	*BR00.45-Z-1084-02A
9	Install holder for DAB tuner.		AZ82.60-P-0031-02LF
10	Convert plug housing for antenna lines.		AZ82.60-P-0031-05LF
11	Install antenna splitter for DAB tuner.		AZ82.60-P-0031-06LF
		Binder Duotec® Pilz in Pilz Klett - with adhesive 32	*BR00.45-Z-1084-02A
12	Install electrical wiring harness for DAB tuner.		AZ82.60-P-0031-03LF
13	Install antenna lines for DAB tuner.		AZ82.60-P-0031-04LF
14	Install DAB tuner.		AZ82.60-P-0031-00LF
15	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
16	Enter special equipment into online vehicle data card.	Code 537 (Digital radio (DAB))
17	Attach "TV tuner retrofitted as per AZ82.60-P-0031LF" note under field organizations texts for DG 82.
18	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-04B
19	Perform variant coding using the software calibration number (SCN).	Head unit  Code head unit to match entered code 537 (Digital radio (DAB)). TV tuner
20	Disconnect diagnostic system.
			AD00.00-P-2000-04B
	Check
21	Perform function test.

Number	Designation	Order number
BR00.45-Z-1084-02A	Binder Duotec® Pilz in Pilz Klett - with adhesive 32	Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info klettband-technik.de http://www.klettband-technik.de
