Retrofit CD Drive - AZ82.64-P-0002LFB

Model 222 with code 320 (Single CD drive preinstallation)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove glove box

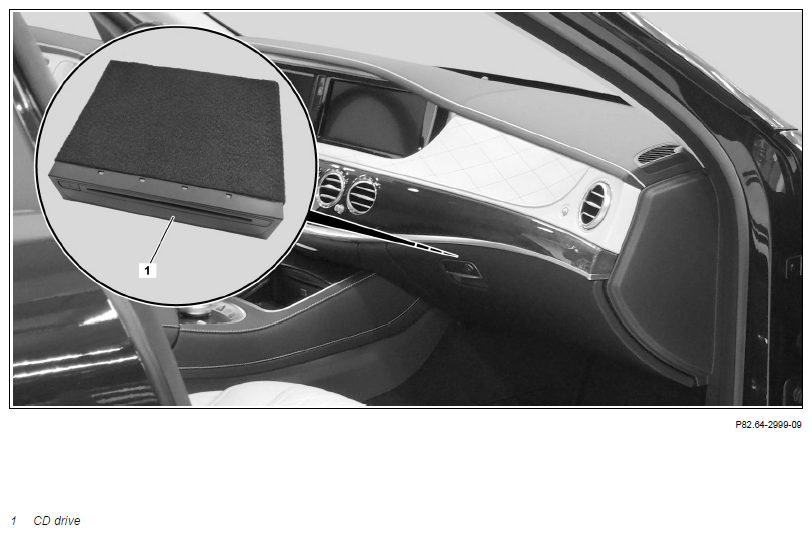

		The electrical wiring harness for the CD drive (1) is fixed in place before the glove compartment housing on the instrument panel cross member.	AR68.10-P-1400LF
	Install
2	Fabricate drilling template for CD drive (1)	Model 222.### 1#	AZ82.64-P-0002-07LF
		Model 222.### 2#	AZ82.64-P-0002-07LFR
3	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LF
4	Produce cutting template for CD drive (1)	Model 222.### 2#	AZ82.64-P-0002-10LFR
5	Prepare glove compartment housing for installation of CD drive (1)	Model 222.### 1#	AZ82.64-P-0002-08LF
		Model 222.### 2#	AZ82.64-P-0002-08LFR
6	Release electrical wiring harness for CD drive (1) from instrument panel cross member
7	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LF
8	Install glove box with CD drive (1)
			AR68.10-P-1400LF
9	Install remaining parts
	Update Vehicle Documentation (VeDoc)
10	Attach "CD drive retrofitted as per AZ82.64-P-0002LF note" under field organization texts	On design group 82.
	Check
11	Perform function test	U See Owner's Manual.
