Retrofit CD Drive - AZ82.64-P-0002LF

Model 222.0/1, 222.9 (except 222.976) as of model year 2018 with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation) except code 498 (Japanese version) except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

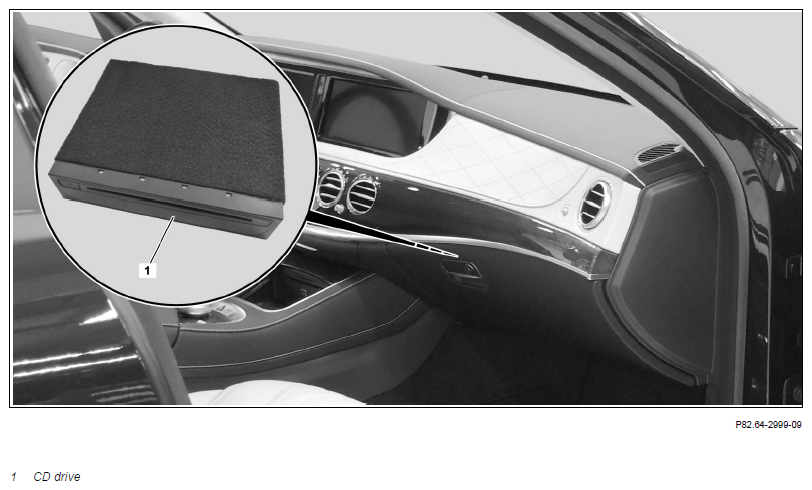

1	Remove display module
			AR54.30-P-6023LF
2	Remove head unit
			AR82.85-P-1101LFM
3	Remove side cover of instrument panel on driver's side
4	Detach driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	Until slot "f204" of the fuse and relay module on the driver's side (K40/6) is accessible.	GF54.15-P-1256-49LFM
5	Remove glove box
			AR68.10-P-1400LF
	Install
6	Fabricate drilling template for CD drive (1)	Model 222.### 1#	AZ82.64-P-0002-07LF
		Model 222.### 2#	AZ82.64-P-0002-07LFR
7	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LF
8	Produce cutting template for CD drive (1)	Model 222.### 2#	AZ82.64-P-0002-10LFR
9	Prepare glove compartment housing for installation of CD drive (1)	Model 222.### 1#	AZ82.64-P-0002-08LF
		Model 222.### 2#	AZ82.64-P-0002-08LFR
10	Retrofit wiring harness for CD drive (1)		AZ82.64-P-0002-01LF
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Left transmission tunnel ground point	*BA00.19-P-1034-01C
11	Insert a fuse with fuse rating 5 A into the "f204" slot of the driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49LFM
12	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LF
13	Install glove box with CD drive (1)
			AR68.10-P-1400LF
14	Install remaining parts
	Update Vehicle Documentation (VeDoc)
15	Enter special equipment in on-line vehicle date card	Code 320 (Single CD drive preinstallation)
16	Attach "CD drive retrofitted as per AZ82.64-P-0002LF note" under field organization texts	On design group 82 and design group 54.
17	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
18	Carry out variant coding using software calibration number (SCN)	Head unit
19	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
20	Perform function test	See Owner's Manual.
