Retrofit CD Drive In Glove Compartment - AZ82.64-P-0002-03LF

Model 222.0/1/9

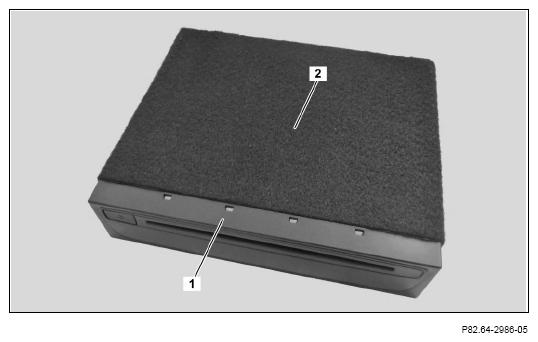

1. Remove the film from the adhesive side of the protective foil (2).
2. Stick protective foil (2), as shown in picture, onto CD drive (1)

   Courtesy of MERCEDES-BENZ USA

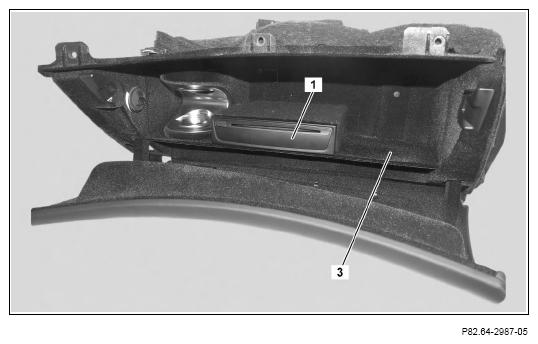

3. Route CD drive wiring harness (4) through hole at the back of the glove compartment (3).
4. Place the CD drive (1) in the glove compartment (3), and connect the CD-drive wiring harness (4) to the CD drive (1).
5. Mount CD drive (1) to glove compartment (3) with screws (4).

   Courtesy of MERCEDES-BENZ USA

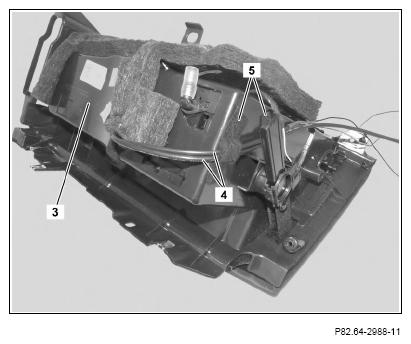

6. Fasten the CD drive wiring harness (4) to the glove compartment (3) with the adhesive felt tape (5) as shown.

   To avoid potential damage or noise, ensure that the CD drive wiring harness (4) is correctly installed.

Courtesy of MERCEDES-BENZ USA
