Retrofit CA Module Card Reader - AZ82.60-P-0032LF

Model 222 with code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea) with code 865 (digital TV) except code 835 (South Korea version)

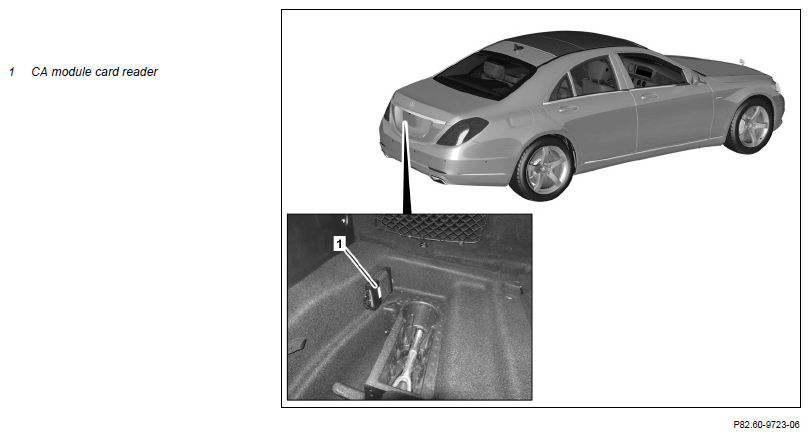

Shown on model 222.057

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove
1	Remove left trunk trims and trunk recess trim
			AR68.30-P-4600LF
2	Remove subwoofer
		MODEL 222 with CODE 811 (Advanced sound system)	AR82.62-P-7839LF
	Install
3	Install electrical wiring harness for CA module card reader (1)		AZ82.60-P-0032-01LF
4	Retrofit bracket for CA module card reader (1)		AZ82.60-P-0032-02LF
5	Position trunk recess trim in trunk, while guiding electrical wiring harness for CA module card reader (1) through previously drilled hole
6	Connect electrical wiring harness to CA module card reader (1) for TV tuner
7	Fasten CA module card reader (1) to bracket for CA module card reader (1)
8	Remove left trunk trims and trunk recess trim
			AR68.30-P-4600LF
9	Install subwoofer
		MODEL 222 with CODE 811 (Advanced sound system)	AR82.62-P-7839LF
	Update Vehicle Documentation (VeDoc)
10	Enter special equipment in on-line vehicle date card	Code 381 (CI+BOX card reader for DVB-12 standard)
11	Attach note "CA module card reader retrofitted as per AZ82.60-P-0032LF" under field organization texts to design group 82
12	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
13	Carry out variant coding using software calibration number (SCN)	TV tuner  CA module card reader (1) can only be operated in temperature range from 0 to 50°C. Outside of this temperature range, the CA module card reader (1) shuts off automatically.
14	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
15	Perform function test
