Install Illuminated Door Sill - AZ82.20-P-0001-01LF
MODEL 222.0/1/9
Install right front illuminated door sill molding
Installation is described on the right side of the vehicle. Installation at the left-hand side of the vehicle takes place in the same way.

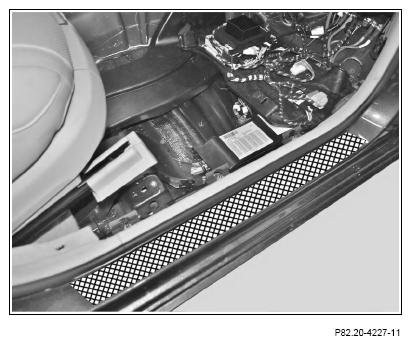

- Clean contact surface of right front door sill in the hatched area.

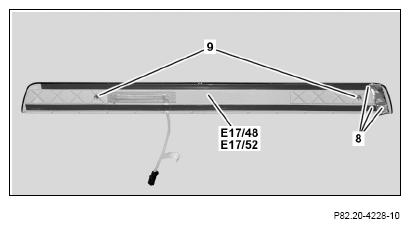

- Remove carrier foil (8) from the right front illuminated door sill molding (E17/48).
Pay attention to guides (9) during subsequent installation.
- Position right front illuminated door sill molding (E17/48) on longitudinal member and press on evenly.
- Connect black 2-pin connector of electrical line of right front illuminated door sill molding (E17/48) to black 2-pin connector of branch-off line of right front illuminated door sill molding (E17/48).

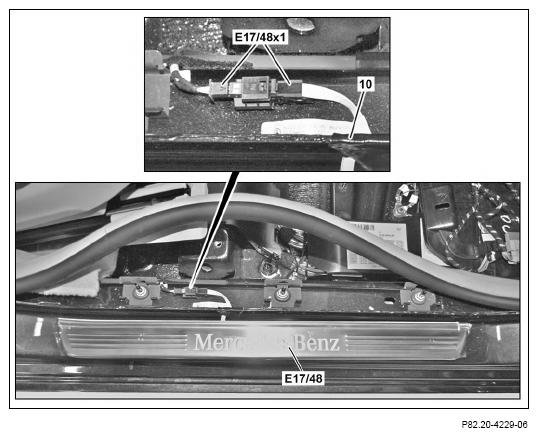

- Fasten right front illuminated door sill molding electrical connector (E17/48x1) by means of a retaining clip onto longitudinal member.
- Route electrical line of right front illuminated door sill molding (E17/48) via body flange on longitudinal member and fix in place with adhesive tape (10).
Install right rear illuminated door sill molding

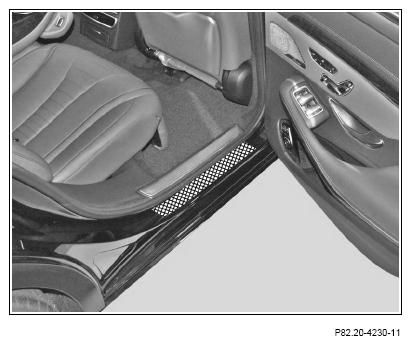

- Clean contact surface of right rear door sill in the hatched area.
- Remove carrier foil (8) from the right rear illuminated door sill molding (E17/52).

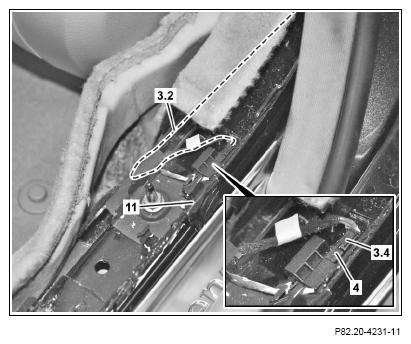

- Connect black 2-pin connector (4) of right rear illuminated door sill molding with the black 2-pin plug (3.4) of right rear illuminated door sill molding branch-off line (3.2).
- Route electrical line of right rear illuminated door sill molding through the body flange on the longitudinal member and fix in place with adhesive tape (11).
