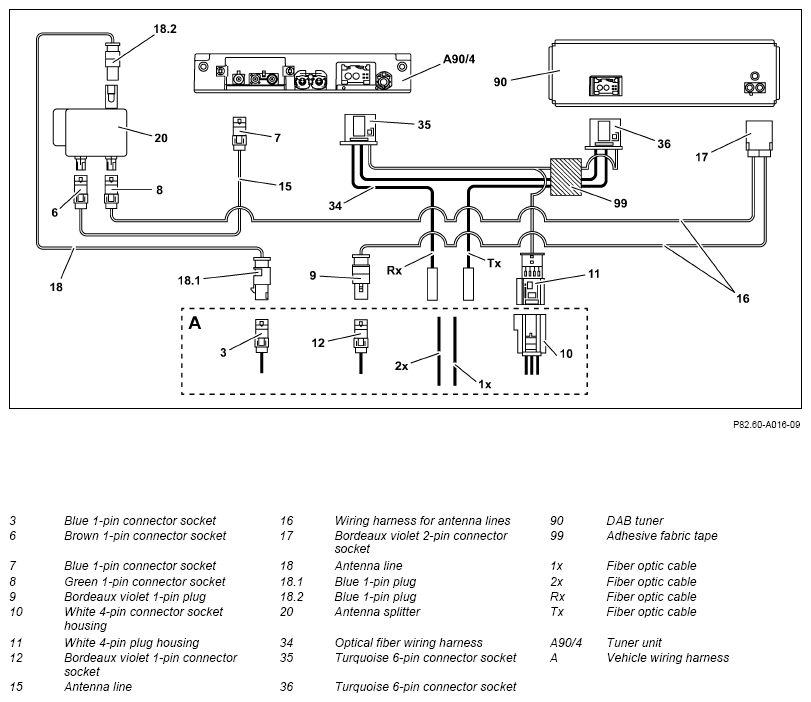

Install Electrical Wiring Harness For DAB Tuner - AZ82.60-P-0031-03LF
Model 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK |

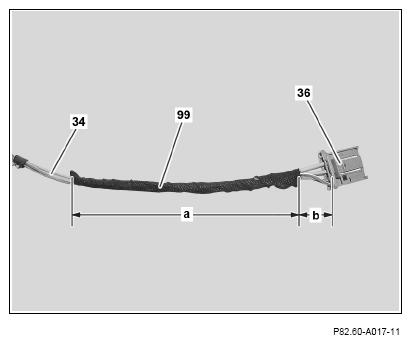

- Wrap fiber-optic cables and electric lines of wiring harness for fiber-optic cables (34) with fabric tape (99).
Dimensions:
a = 150 mm
b = 20 mm
The turquoise 6-pin connector socket (36) is located at the end of the longer fiber-optic cables.

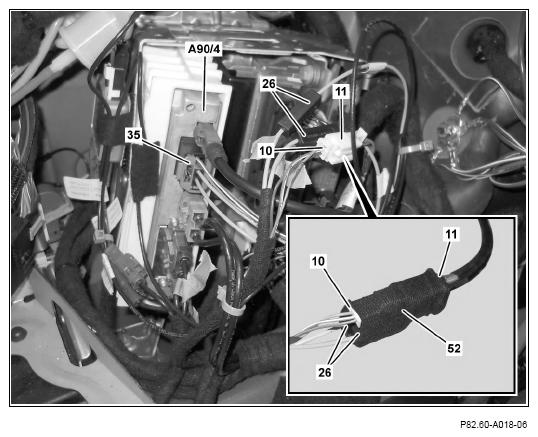

- Connect white 4-pin connector socket housing (10) to white 4-pin plug housing (11).
- Attach turquoise 6-pin connector socket (35) to tuner unit (A90/4).
- Wrap fiber-optic cable adapter (26), white 4-pin connector socket housing (10) and white 4-pin plug housing (11) with fabric tape (52).
- Route wiring harness for fiber-optic cables (34) to installation location of DAB tuner.
e = 200 mm
At a later point, the wiring harness for fiber-optic cables (34) is strapped down together with the wiring harness for antenna lines (16) and fixed in place with the felt bands (58).
