Install DAB Tuner - AZ82.60-P-0031-00LF
Model 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK |

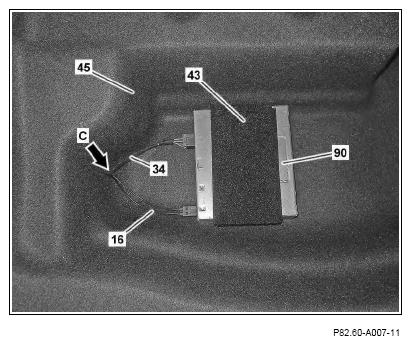

- Fasten DAB tuner (90) at trunk recess trim (45) using Velcro strip (43).
- Guide wiring harness for fiber-optic cables (34) and wiring harness for antenna lines (16) through the opening (arrow C) housed at the trunk recess trim (45).
- Connect wiring harness for fiber-optic cables (34) and wiring harness for antenna lines (16) to DAB tuner (90).
