Install Antenna Splitter For DAB Tuner - AZ82.60-P-0031-06LF
Model 217.3, 222
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1084-02A | Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |
- Cut Velcro strip (59) to a length of 50 mm.

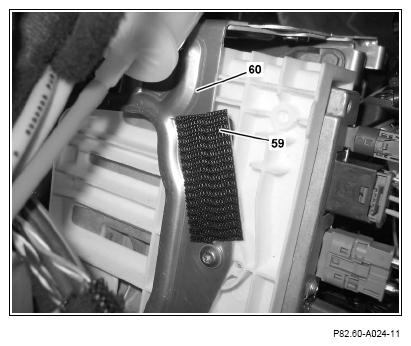

- Remove carrier foil and glue Velcro strip (59) onto bracket (60).
- Cut two Velcro strips (59) to a length of 50 mm.

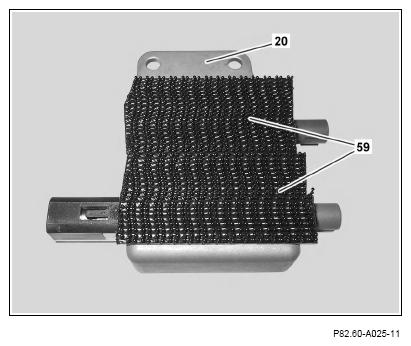

- Remove carrier foils and glue Velcro strips (59) onto antenna splitter (20).

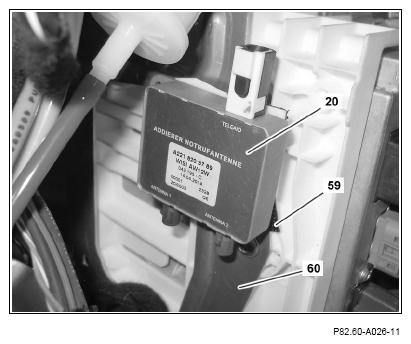

- Attach antenna splitter (20) on Velcro strip (59) at bracket (60).
