Install Antenna Lines For DAB Tuner - AZ82.60-P-0031-04LF

Model 217.4, 222

The following operation steps are shown on model 222.

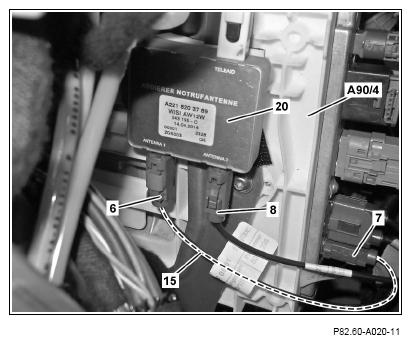

1. Attach brown 1-pin connector socket (6) to the brown slot of the antenna splitter (20).
2. Attach blue 1-pin connector socket (7) of antenna line (15) to the blue slot of the tuner unit (A90/4).
3. Attach green 1-pin connector socket (8) to the green slot of the antenna splitter (20).

   Courtesy of MERCEDES-BENZ USA

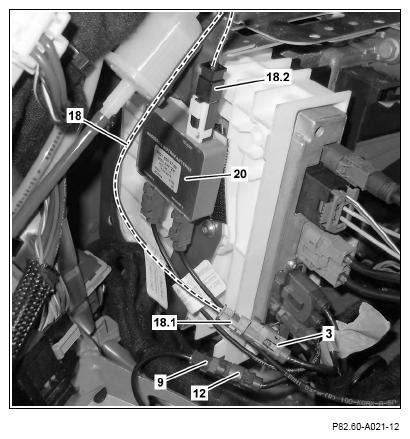

4. Connect bordeaux violet 1-pin connector socket (12) with the bordeaux violet 1-pin plug (9).
5. Connect blue 1-pin plug (18.1) of antenna line (18) with blue 1-pin connector socket (3) of vehicle wiring harness.
6. Attach black 1-pin plug (18.2) of antenna line (18) to the black slot of the antenna splitter (20).

   Courtesy of MERCEDES-BENZ USA

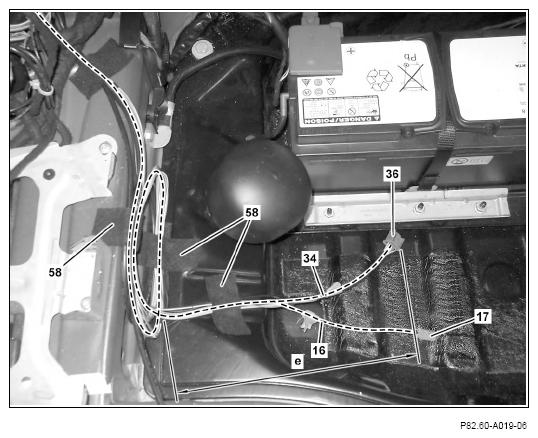

7. Model 222

   Route wiring harness for antenna lines (16) to installation location of DAB tuner.

   Dimension:

   e = 200 mm

8. Model 222

   Strap down wiring harness for antenna lines (16) together with wiring harness for fiber-optic cables (34) and fix in place with felt bands (58).

Courtesy of MERCEDES-BENZ USA
