Fabricate Drilling Template For CD Drive - AZ82.64-P-0002-07LF

Model 222.0##/1##/9## 1#

Courtesy of MERCEDES-BENZ USA

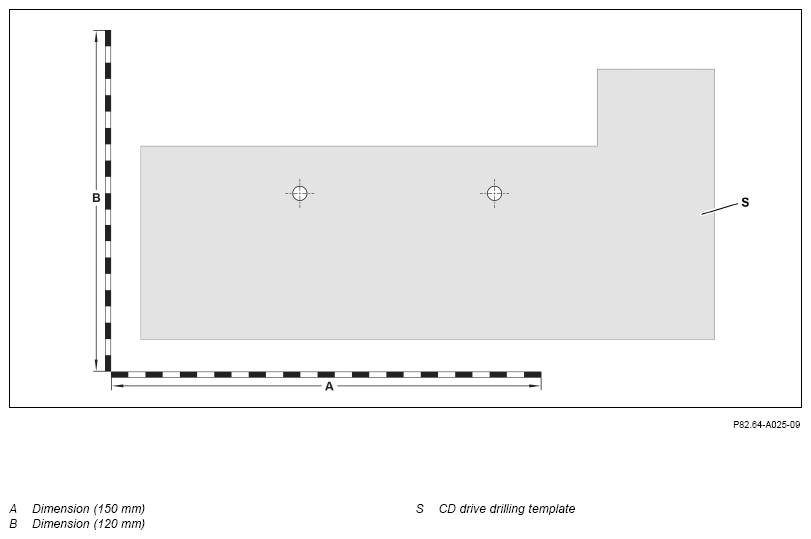

CD drive drilling template (S)

1. Print out drawing of CD drive drilling template (S).
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed-out CD drive drilling template (S) to original size using determined scaling factor.
5. Cut out CD drive drilling template (S).

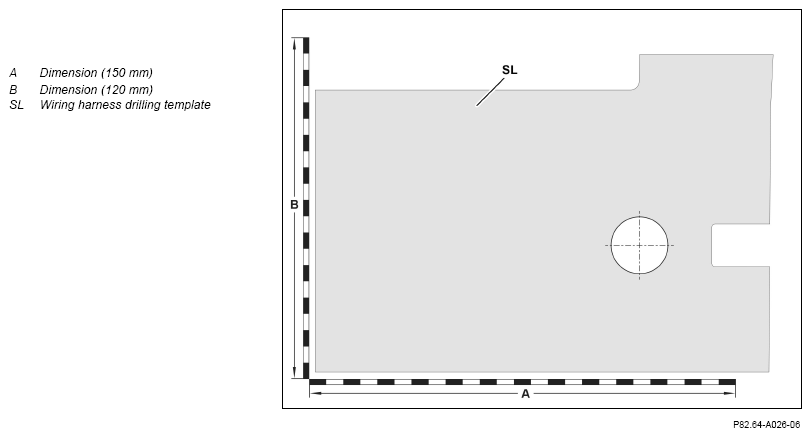

   Wiring harness drilling template (SL)

   Courtesy of MERCEDES-BENZ USA

6. Print out drawing of wiring harness drilling template (SL).
7. Determine dimensions (A, B) of print-out.
8. Determine scaling factor.
9. Copy printed-out wiring harness drilling template (SL) to original size using determined scaling factor.
10. Cut out wiring harness drilling template (SL).

    Divide dimension specified (A) by dimension determined (A).

    Divide dimension specified (B) by dimension determined (B).
