Remove/Install Stowage Compartment For Transmitter Key - AR68.10-P-1512LFM

Model 217, 222.0/1/9

as of model year 2018

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install

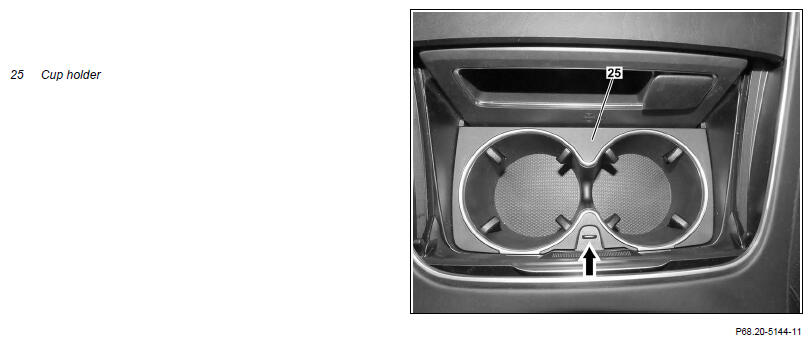

1	Release and remove cup holder (25) by pressing on engagement (arrow)

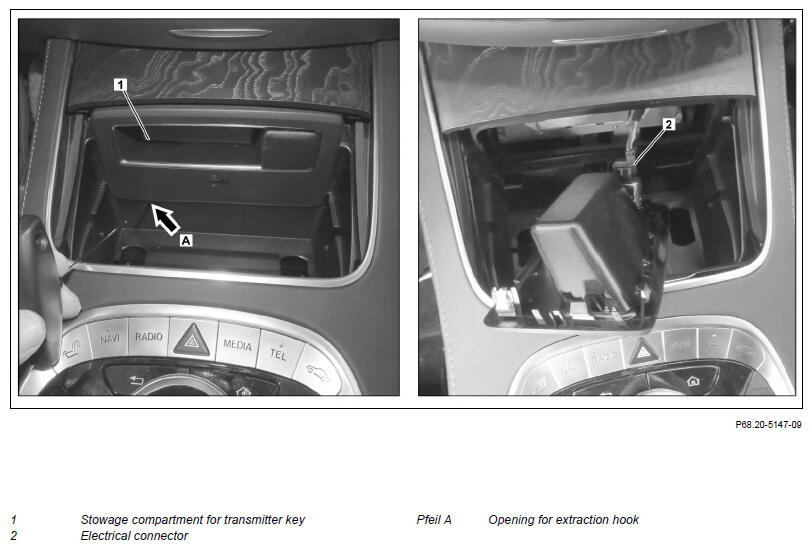

2	Remove stowage compartment for transmitter key (1)	Removal:  Attach extraction hook in opening (arrow A) and unclip stowage compartment for transmitter key (1).
		Extraction hook	Fig 1
3	Disconnect electrical connection (2)
4	Install in the reverse order

Fig 1: Identifying Extraction Hook (140 589 02 33 00)
