Remove/Install Side Paneling In Rear - AR68.30-P-4780LF

Model 222.0/1

Courtesy of MERCEDES-BENZ USA

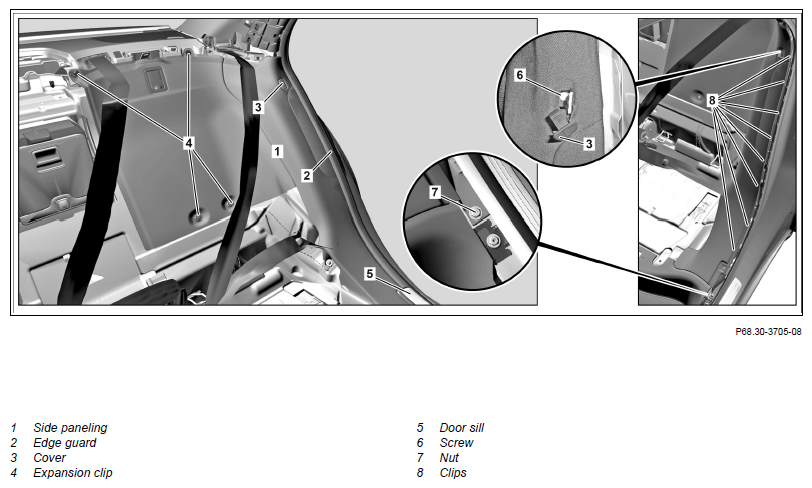

Shown on vehicle with CODE 223 (Electrically adjustable rear bench seat)

Courtesy of MERCEDES-BENZ USA

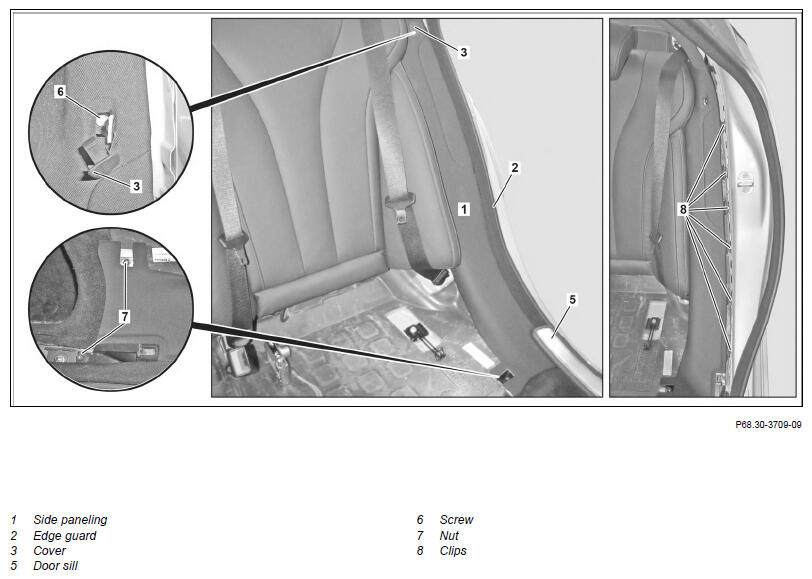

Shown on vehicle except CODE 223 (Electrically adjustable rear bench seat)

	Remove/install
1	Remove seat cushion	MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design)	AR91.12-P-1020LF
		MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat) MODEL 222.0/1 with CODE 224 (Rear individual seat design)	AR91.12-P-1020LFA
2	Remove seat backrest	MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design)	AR91.12-P-1620LF
		MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat) MODEL 222.0/1 with CODE 224 (Rear individual seat design)	AR91.12-P-1620LFA
3	Remove armrest from backrest	MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat)	AR91.12-P-1745LFA
4	Remove trim piece behind rear seat	MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat)	AR68.30-P-1460LF
5	Remove door sill molding (5)
6	Detach edge guard (2) in area of side paneling (1)
7	Remove cover (3) and unscrew bolt (6)
8	Remove expansion clips (4)	On vehicles with CODE 223 (Electrically adjustable rear bench seat)
9	Unscrew nuts (7)
10	Unclip clips (8) on side paneling (1) from bottom upward and remove side paneling (1)
11	Install in the reverse order
