Remove/Install Handle On Roof - AR68.30-P-4330NKB
Model 117, 156, 176, 205, 213, 222, 242, 246, 253, 293
Shown on model 246
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove covers (2). | ||

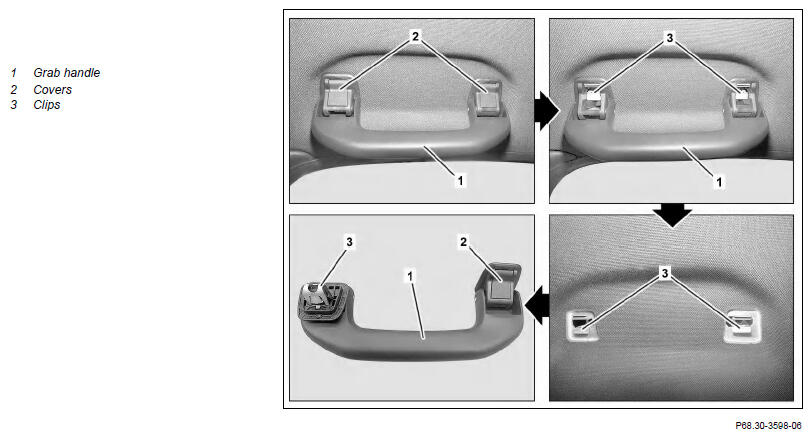

| 2 | Press together clips (3) and remove grab handle (1). | ||
| 3 | Release and disconnect electrical connector of rear illumination at rear grab handle (1). | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205, 253, 293 with code 876 (Interior Light package) Model 213, 222 |
|
| 4 | Remove clamps (3) from the body. | ||
| Install | |||
| 5 | Clip clamps (3) and covers (2) into the grab handle (1). | ||
| 6 | Connect electrical connector of rear illumination at rear grab handle (1). | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205, 253, 293 with code 876 (Interior Light package) Model 213, 222 |
|
| 7 | Clip grab handle (1) into the roof. | ||
| Check | |||
| 8 | Check grab handle at roof. | AR68.30-P-4330-01NKB |
