Remove/Install Eyeglass Compartment On Roof - AR68.30-P-4400LF
Model 217.3, 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||

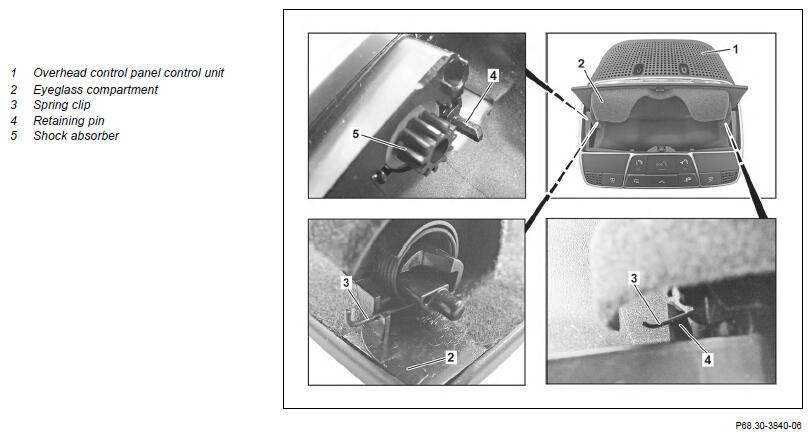

| 1 | Remove overhead control panel control unit (1) | AR82.20-P-1000LF | |
| 2 | Open eyeglasses compartment (2) | ||
| 3 | Push eyeglasses compartment (2) to side and unclip at opposite side | ||
| 4 | Unclip damper (5) from inside toward outside | ||
| Install | |||
| 5 | Insert spring clips (3) on eyeglasses compartment (2) into present groove | ||
| 6 | Insert eyeglasses compartment (2) at one side and clip in on opposite side | ||
| 7 | Check whether spring clips (3) are seated correctly after installing eyeglasses compartment (2) | The spring clips (3) should be seated in front of the retaining pins (4). Otherwise the eyeglasses compartment (2) cannot be opened. in the case of complaints. ↓ Press spring clips (3) toward front of retaining pins (4) using screwdriver. |
|
| 8 | Close eyeglasses compartment (2) | ||
| 9 | Clip in damper (5) from outside toward inside | ||
| 10 | Install overhead control panel control unit (1) | AR82.20-P-1000LF | |
| Check | |||
| 11 | Check glasses compartment (2) for proper operation by opening and closing |
