Remove/Install Armrest Lid On Center Console - AR68.20-P-2370LF
Model 217, 222
MODIFICATION NOTES
| 20.10.2020 | Method revised. | Operation steps 1 to 11 |
Shown on model 222 up to model year 2018
Shown on model 217.4 up to model year 2018 with code 889 (KEYLESS-GO)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

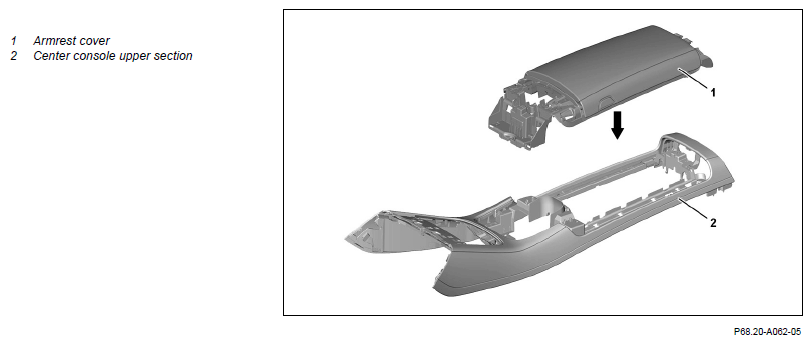

| 1 | Remove center console upper section (2). | AR68.20-P-2012LF | |

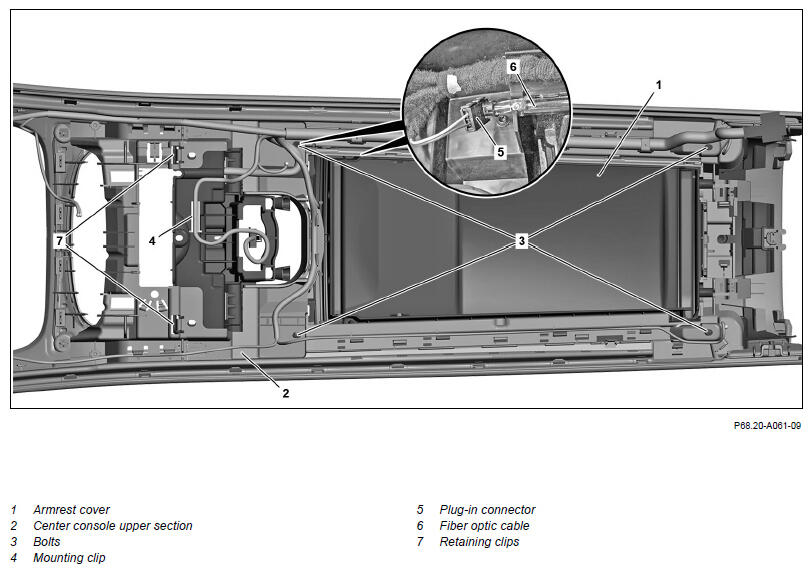

| 2 | Remove retaining clip (4). | Fig 1 | |
| 3 | Release and disconnect connector coupling (5) at fiber-optic cable (6). | Hold fiber-optic cable (6) with thumb. Fiber-optic cable (6) will otherwise be damaged. |
|
| 4 | Remove screws (3). | ||
| 5 | Release and disconnect electrical connector (8). | Model 217, 222 up to model year 2018 with code 889 (KEYLESS-GO) |
|
| 6 | Remove electrical connector (9) from center console upper section (2). | Model 217, 222 with code 906 (Front armrest heater) |
|
| 7 | Release and disconnect electrical connection (9). | Model 217, 222 with code 906 (Front armrest heater) |
|
| 8 | Open armrest cover (1). | ||
| 9 | Release retaining clips (7). | ||
| 10 | Remove armrest cover (1). | ||
| 11 | Install in the reverse order. |
