Rear Passenger Compartment Side Window Roller Sunblind Motor, Basic Function - GF68.50-P-2009A

Model All (CAR)

with code 297 (Electric roller sun blind in left and right rear door)

Model All (CAR)

with code M036 (Maybach version)

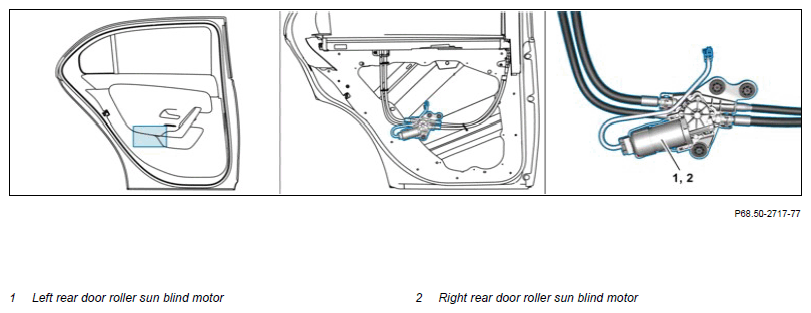

Fig 1: Rear Passenger Compartment Side Window Roller Sunblind Motor Components Location - Model All (Car) With Code 297, M036

Courtesy of MERCEDES-BENZ USA

Example illustration of rear side window roller sunblind motor

Overview

This document contains information on:

General
Function

General

The roller sunblind motors drive the roller sunblind linkage and thus facilitate opening and closing of the roller sunblinds of the rear doors and side windows.

Function

Triggered by the control elements in the rear passenger compartment, they are actuated respectively, depending on the side, by the left rear door control unit or by the right rear door control unit. If the driver operates the roller sunblinds, the roller sunblind motors are actuated directly by the driver's door control unit.

The position of the roller sunblind is defined by the evaluation of the signals of the Hall sensor in the roller sunblind motor.
