Remove/Install Rear Door Keyless-Go Antenna - AR80.61-P-0021LF

Model 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining on left or right rear door		AR72.12-P-1010LF

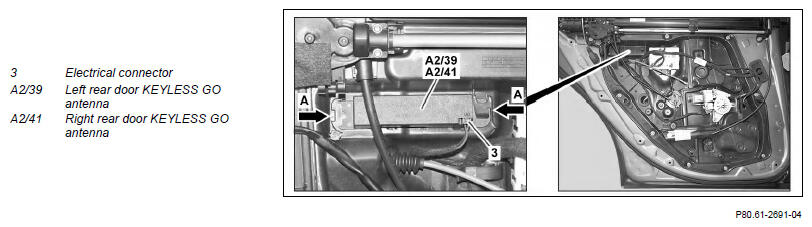

2	Unclip left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41) from mounts (arrows A)	: Ensure that left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41) is seated correctly in mounts (arrows A).
3	Disconnect electrical connector (3) and remove left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41)
4	Install in the reverse order
