Remove/Install Keyless-Go Control Unit - AR80.61-P-0002LF
Model 217
Model 222
Shown on model 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect Star Diagnosis and perform initial startup of KEYLESS-GO control unit (N69/5) | When replacing KEYLESS-GO control unit (N695). | |
| AD00.00-P-2000-04B | |||

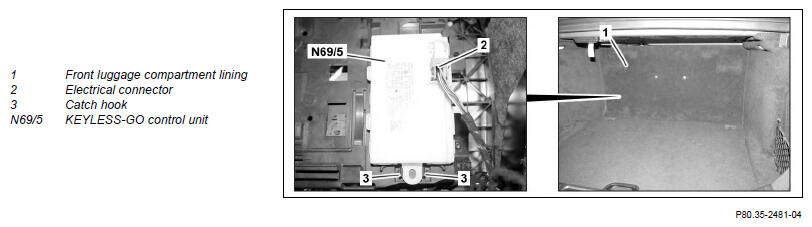

| 2.1 | Remove front luggage compartment lining (1) | Model 217.3, 222 | |
| Model 217.3 | AR68.30-P-4600LC | ||
| Model 222.0/1/9 | AR68.30-P-4600LF | ||
| 2.2 | Remove park pawl condenser | Model 217.4 | AR54.10-P-1126LCA |
| 3 | Disconnect electrical connector (2) | ||
| 4 | Release catch hooks (3) and remove KEYLESS-GO control unit (N69/5) | ||
| 5 | Install in the reverse order |
