Remove/Install Center Console Keyless-Go Antenna - AR80.61-P-0041LF
Model 222
up to model year 2018
with code 889 (KEYLESS-GO)
MODIFICATION NOTES
| |07.03.2017 | Operation step group "Install" added | Operation steps 4-7 |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Remove front central operating unit control unit | AR54.21-P-0500LF | |

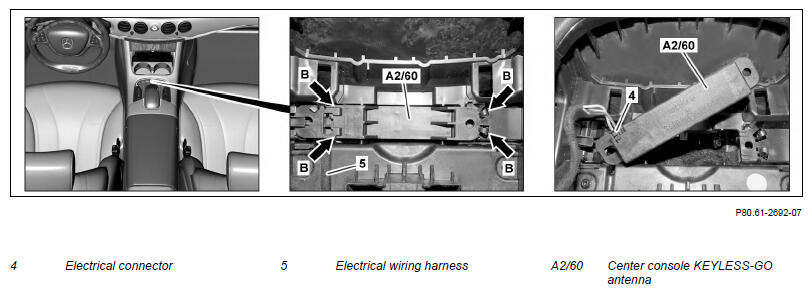

| 2 | Unclip center console KEYLESS-GO antenna (A2/60) from mounts (arrows B) | ||
| 3 | Disconnect electrical connector (4) and remove center console KEYLESS-GO antenna (A2/60) | ||
| Install | |||
| 4 | Connect electrical connector (4) with center console KEYLESS-GO antenna (A2/60) | ||
| 5 | Clip in center console KEYLESS-GO antenna (A2/60) to mounts (arrow B) | ||
| 6 | Position electrical wiring harness (5) in corresponding groove in center console housing | ||
| 7 | Install front central operating unit control unit | AR54.21-P-0500LF |
