Remove/Install ATA Alarm Signal Siren - AR80.50-P-9840LF
Model 222
with code 882 (Interior motion sensor) except code 1U6 (R744 refrigerant)
| Remove | |||
| 1 | Deactivate anti-theft alarm system (ATA) | ||
| 2 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LF | |

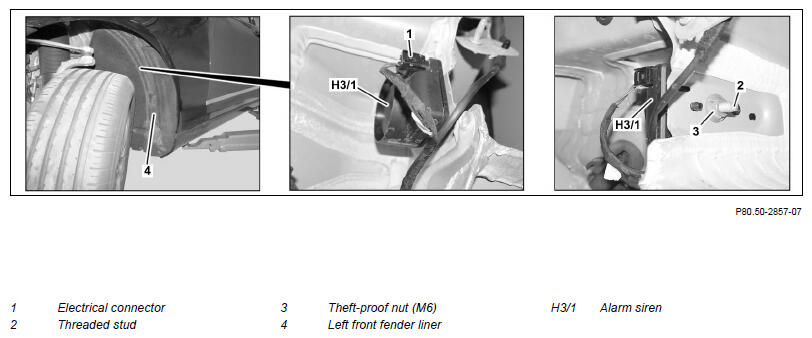

| 3 | Remove left front fender liner (4) | AR88.10-P-1300LF | |
| 4 | Disconnect electrical connector (1) from alarm siren (H3/1) | ||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| 5 | Screw on commercially available nut on threaded pin (/2) and weld with two tack weld points to anti-theft nut (3) | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
| 6 | Unscrew commercially available nut together with theft-proof nut (3) | ||
| 7 | Remove alarm siren (H3/1) | ||
| Install | |||
| 8 | Position alarm sirens (H3/1) on threaded pin (2) of body and tighten with new anti-theft nut (3) | *BA80.50-P-1001-01D | |
| Fig 2 | |||
| 9 | Connect electrical connector (1) to alarm siren (H3/1) | ||
| 10 | Install left front fender liner (4) | AR88.10-P-1300LF | |
| 11 | Connect ground line for on-board electrical system battery | AR54.10-P-0003LF |
ANTI-THEFT ALARM SYSTEM
| Number | Designation | Model 222 | |
|---|---|---|---|
| BA80.50-P-1001-01D | Nut, horn to body | Nm | 10 |
