Trunk Lid/Liftgate Control Warning Buzzer, Basic Function - GF80.45-P-2015A

Model All (CAR)

with code 881 (Remote boot-lid closing)

Model All (CAR)

with code 890 (Automatic rear-end door)

Courtesy of MERCEDES-BENZ USA

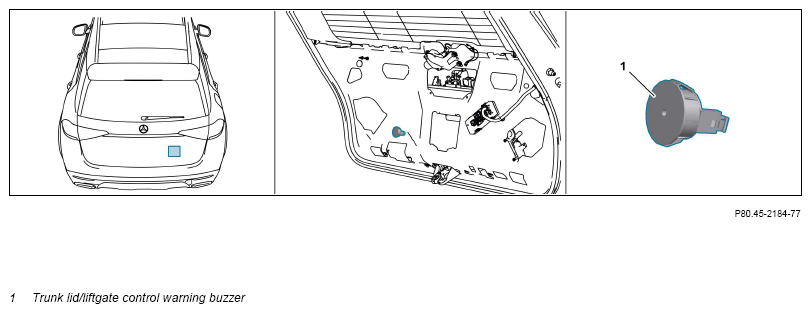

Example illustration

Overview

This document contains information on:

• General
• Function

General

The warning buzzer is integrated in the trunk lid or tailgate.

Function

The warning buzzer reports back the opening/closing process of the trunk lid or tailgate. The warning buzzer is actuated by the control unit for the trunk lid/liftgate control.

	Component descriptions
	Trunk lid/liftgate control warning buzzer, component description	Model 223 with code 871 (Sensor system for trunk lid opening/closing) with code 881 (Remote boot-lid closing)	GF80.20-P-6085A
		Model 243 with code 890 (Automatic rear-end door)	GF80.20-P-6085B
		Model 206 with code 881 (Remote boot-lid closing) Model 206 with code 890 (Automatic rear-end door)	GF80.20-P-6085C
		Model 297 with code 890 (Automatic rear-end door)	GF80.20-P-6085D
		Model 295 with code 881 (Remote boot-lid closing)	GF80.20-P-6085E
		Model 232 with code 881 (Remote boot-lid closing) Model 232 with code 890 (Automatic rear-end door)	GF80.20-P-6085F
