Glass Breakage Sensor, Basic Function - GF80.50-P-2009A

Model All (CAR)

Shown on model 167

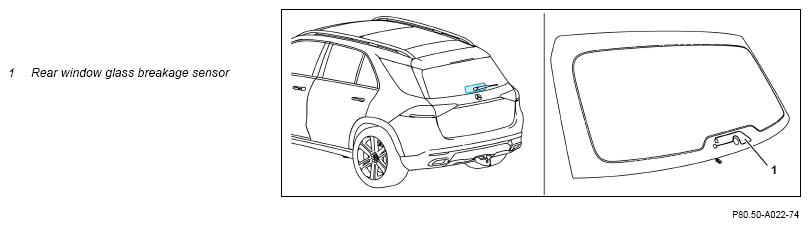

Fig 1: Rear Window Glass Breakage Sensor Components Location - Model All (Car) (Shown On Model 167)

Courtesy of MERCEDES-BENZ USA

Shown on model 167

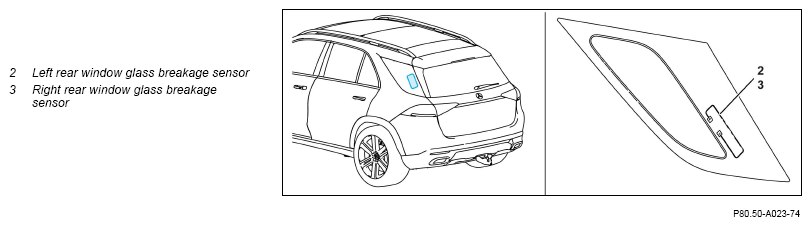

Fig 2: Left/Right Rear Window Glass Breakage Sensor Components Location - Model All (Car) (Shown On Model 167)

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

General
Function

General

The glass breakage sensor is integrated in the respective glass pane.

Function

The glass breakage sensor consists of conductor tracks that are vacuum-metalized onto the respective window. If the resistance value for the conductor tracks rises above a specific value, an alarm is issued. The status of the glass breakage sensor is evaluated by the control unit of the anti-theft alarm system. Glass breakage sensors are usually installed in the rear window. Crewbuses as well as 2-door coupes and SUVs are often equipped with glass breakage sensors in the rear fixed side windows in addition.

Component descriptions
Rear glass breakage sensor, component description	Model 243	GF80.50-P-4117B
	Model 206	GF80.50-P-4117C
Rear window glass breakage sensor, component description	Model 243	GF80.50-P-4118B
	Model 206	GF80.50-P-4118C
	Model 297	GF80.50-P-4118D
