Alarm Siren, Basic Function - GF80.50-P-2008A
Model All (CAR)

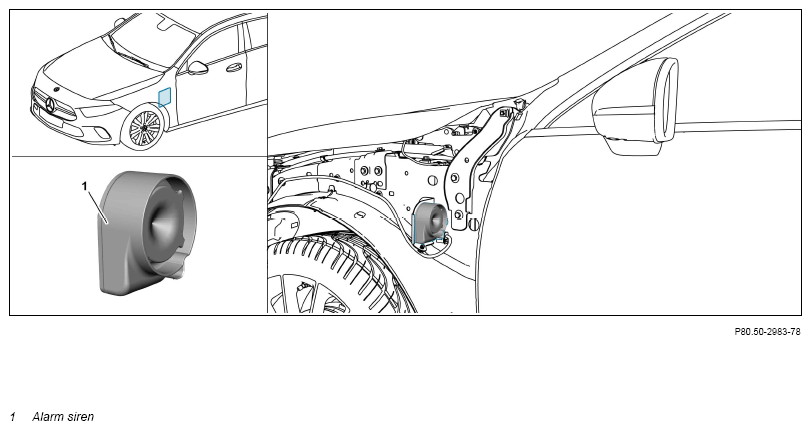

Example illustration
Overview
This document contains information on:
- General
- Function
General
The alarm siren is a device for acoustic alarm or warning. Depending on the vehicle model, the alarm siren is located in the front left wheel arch or in the front right wheel arch.
Function
Among other things, the alarm siren performs the following tasks:
- Acoustic alarm output of the anti-theft alarm system.
- Autonomous alarm output in the event of loss of supply voltage or communication with the vehicle.
The alarm siren is networked with the control unit of the anti-theft alarm system and includes the following:
- Internal power supply for securing the alarm output in the event of loss of power supply on the vehicle side.
- Piezo element for acoustic alarm output.
| Component descriptions | |||
| Alarm siren, component description | Model 223 | GF80.50-P-6060A | |
| Model 243 | GF80.50-P-6060B | ||
| Model 206 | GF80.50-P-6060C | ||
| Model 297 | GF80.50-P-6060D | ||
| Model 295 | GF80.50-P-6060E | ||
| Model 232 | GF80.50-P-6060F |
