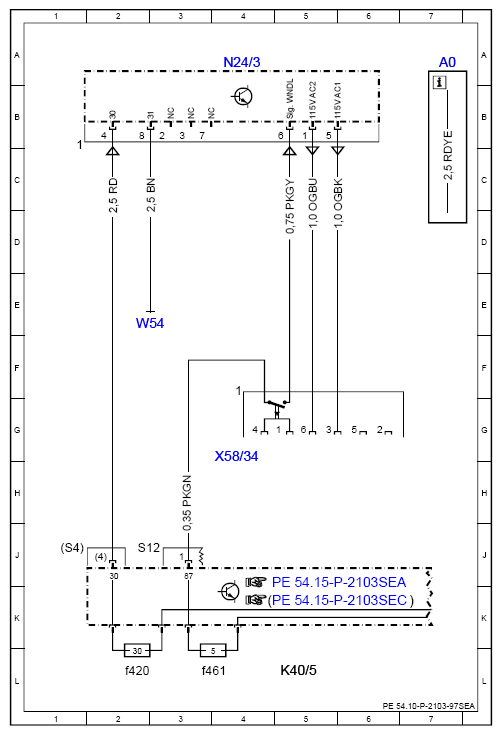

Wiring Diagram Control Unit DC/AC Converter - PE54.10-P-2103-97SEA
Model 217 up to model year 2018 Control unit N24/3, 115V power outlet
Model 222 up to model year 2018 Control unit N24/3, 115V power outlet
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 7A |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f420 | Fuse 420 | 2L |
| K40/5f461 | Fuse 461 | 3L |
| N24/3 | DC/AC converter control unit | 4A |
| W54 | Right rear wheel well ground point | 2E |
| X58/34 | 115 V socket | 4H |
