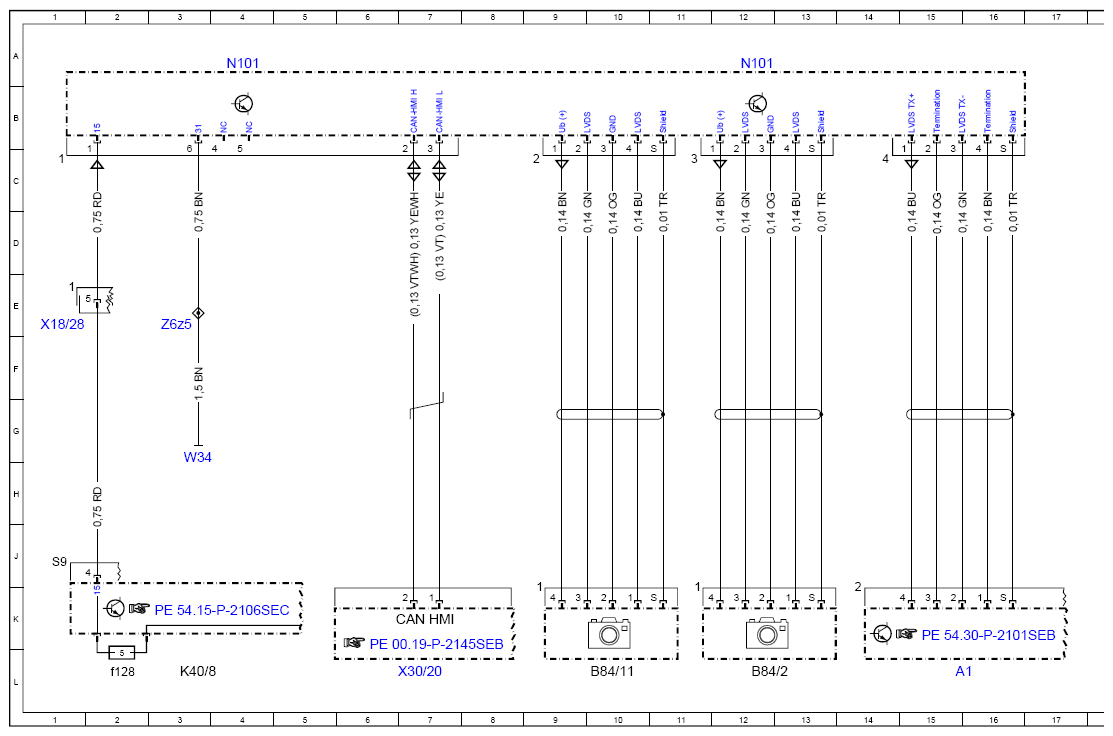

Wiring Diagram, Night View Assist Control Unit - PE54.30-P-2103-97SEB
Model 217, 222 as of model year 2018 with code 610 (Night view assist) Control unit N101
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A1 | Instrument cluster | 15L |
| B84/11 | Night View Assist infrared camera 2 | 10L |
| B84/2 | Night View Assist infrared camera 1 | 12L |
| CAN HMI | User interface CAN | 7K |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f128 | Fuse 128 | 2L |
| N101 | Night View Assist control unit | 12A |
| N101 | Night View Assist control unit | 4A |
| W34 | Left footwell ground point | 3H |
| X18/28 | Left cockpit/engine compartment electrical connector | 1E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 7L |
| Z6z5 | Circuit 31 connector sleeve | 3E |
