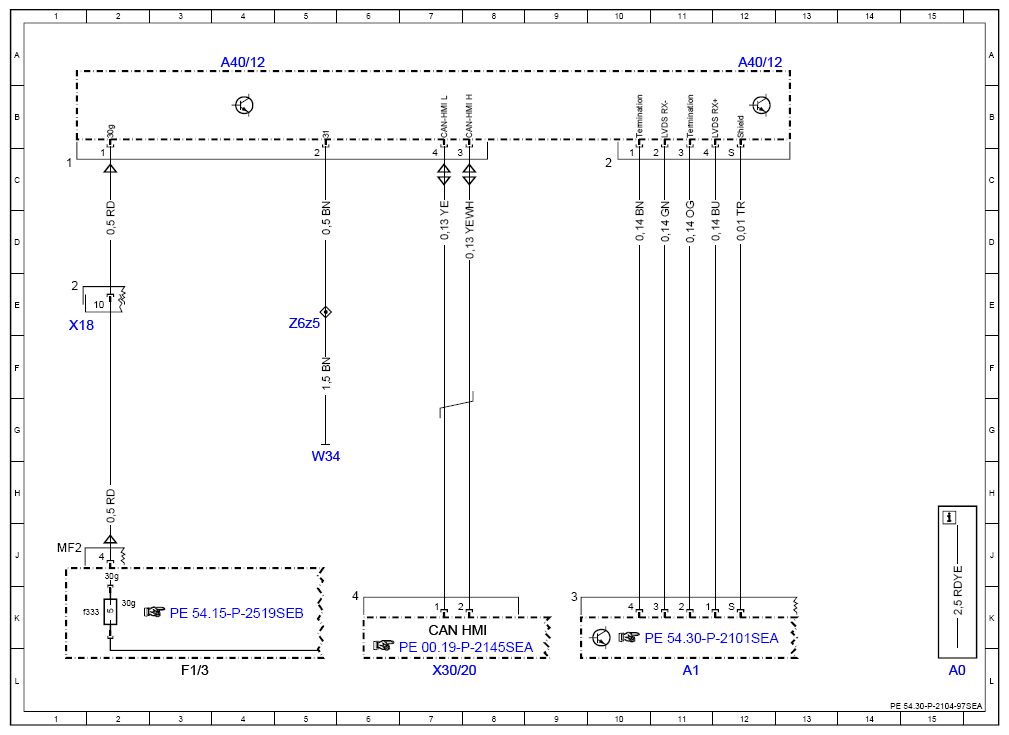

Wiring Diagram For Head-Up Display Control Unit - PE54.30-P-2104-97SEA
Model 217 up to model year 2018 with code 462 (Head-up display) Control unit A40/12
Model 222 up to model year 2018 with code 463 (Head-up display) Control unit A40/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A1 | Instrument cluster | 11L |
| A40/12 | Head-up display | 4A |
| A40/12 | Head-up display | 12A |
| CAN HMI | User interface CAN | 7K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f333 | Fuse 333 | 1K |
| W34 | Left footwell ground point | 5G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 1E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 7L |
| Z6z5 | Circuit 31 connector sleeve | 5E |
