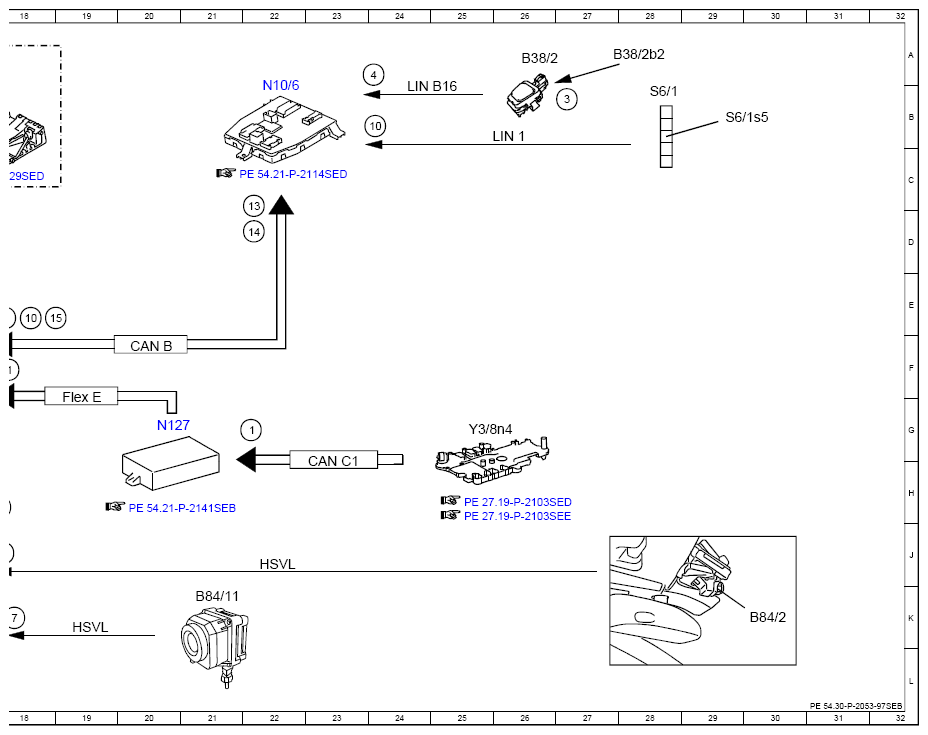

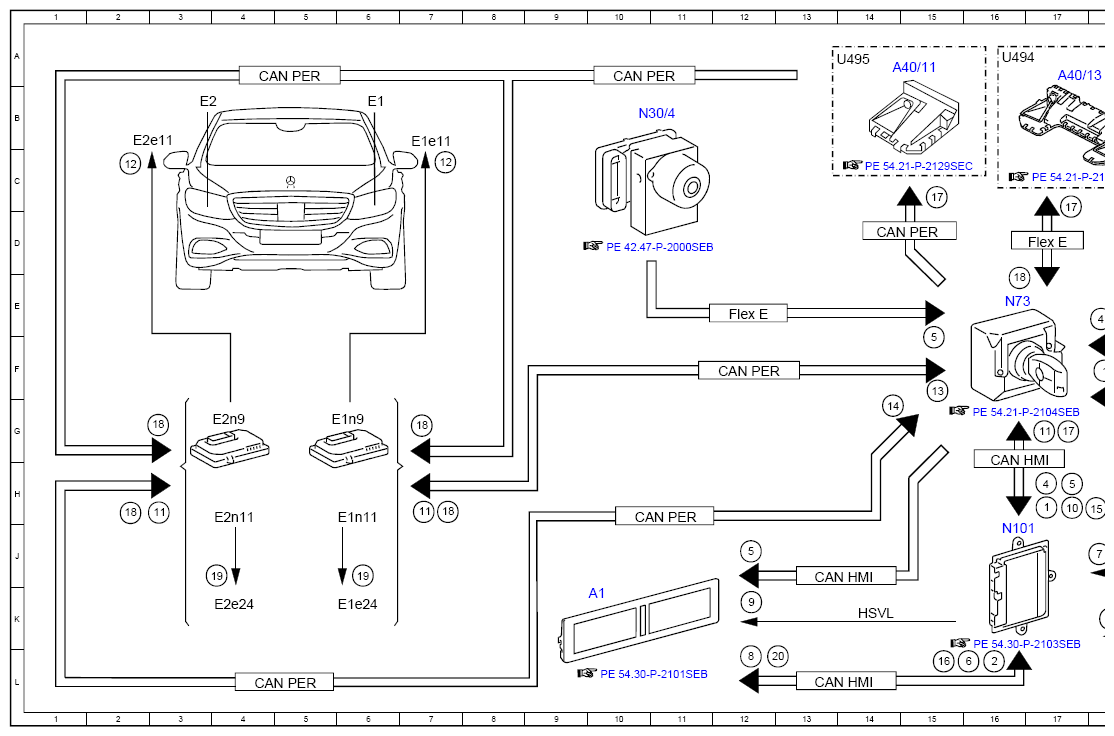

Electrical Function Schematic For Night View Assist - PE54.30-P-2053-97SEB
Model 222 as of model year 2018 with code 610 (Night view assist)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 17H |
| 1 | Gear range, status | 18F |
| 1 | Gear range, status | 22G |
| 10 | Night View Assist button, status | 24B |
| 10 | Night View Assist button, status | 17H |
| 10 | Night View Assist button, status | 18E |
| 11 | Infrared light request | 3H |
| 11 | Infrared light request | 7H |
| 11 | Infrared light request | 17G |
| 12 | Infrared light, actuation | 2C |
| 12 | Infrared light, actuation | 7C |
| 13 | Left infrared light, status | 15F |
| 13 | Left infrared light, status | 22C |
| 14 | Right infrared light, status | 14G |
| 14 | Right infrared light, status | 22D |
| 15 | Infrared light, status | 18E |
| 15 | Infrared light, status | 18H |
| 16 | Spotlight function, status | 15K |
| 17 | Spotlight function object information, data packet | 17C |
| 17 | Spotlight function object information, data packet | 15C |
| 17 | Spotlight function object information, data packet | 17G |
| 18 | Spotlight function, request | 2H |
| 18 | Spotlight function, request | 7H |
| 18 | Spotlight function, request | 16E |
| 18 | Spotlight function, request | 7G |
| 18 | Spotlight function, request | 3G |
| 19 | High beams, actuation | 4J |
| 19 | High beams, actuation | 6J |
| 2 | Automatic picture display, status | 16K |
| 20 | Warning and system messages, request | 13K |
| 3 | Light sensor, status | 27B |
| 4 | Dusk setting, signal | 17H |
| 4 | Dusk setting, signal | 18E |
| 4 | Dusk setting, signal | 24A |
| 5 | Wheel speed, signal | 15F |
| 5 | Wheel speed, signal | 17H |
| 5 | Wheel speed, signal | 12J |
| 6 | Vehicle speed, signal | 16L |
| 7 | Night View Assist infrared camera image data, signal | 18J |
| 7 | Night View Assist infrared camera image data, signal | 18K |
| 8 | Picture display, request | 12L |
| 9 | Low voltage differential signal video signal data transfer, signal | 12K |
| A1 | Instrument cluster | 10K |
| A40/11 | Mono multifunction camera | 14A |
| A40/13 | Stereo multifunction camera | 17A |
| B38/2 | Rain/light sensor with additional functions | 26A |
| B38/2b2 | Light sensor | 28A |
| B84/11 | Night View Assist infrared camera 2 | 21K |
| B84/2 | Night View Assist infrared camera 1 | 30K |
| CAN B | Interior CAN | 20F |
| CAN C1 | Drive train CAN | 23H |
| CAN HMI | User interface CAN | 13J |
| CAN HMI | User interface CAN | 16H |
| CAN HMI | User interface CAN | 13L |
| CAN PER | Peripherals CAN | 11H |
| CAN PER | Peripherals CAN | 12F |
| CAN PER | Peripherals CAN | 14D |
| CAN PER | Peripherals CAN | 10A |
| CAN PER | Peripherals CAN | 5A |
| CAN PER | Peripherals CAN | 4L |
| E1 | Left front lamp unit | 6B |
| E1e11 | Left infrared lamp | 7B |
| E1e24 | Left front adaptive high beam | 6K |
| E1n11 | Left front LED matrix lamp unit control unit | 6H |
| E1n9 | Left headlamp control unit | 6G |
| E2 | Right front lamp unit | 3B |
| E2e11 | Right infrared lamp | 2B |
| E2e24 | Right front adaptive high beam | 4K |
| E2n11 | Right front LED matrix lamp unit control unit | 4H |
| E2n9 | Right headlamp control unit | 4G |
| Flex E | Chassis FlexRay | 12E |
| Flex E | Chassis FlexRay | 19G |
| Flex E | Chassis FlexRay | 17D |
| HSVL | High-speed video link | 14K |
| HSVL | High-speed video link | 22J |
| HSVL | High-speed video link | 19K |
| LIN 1 | Instrument panel LIN | 26B |
| LIN B16 | Rain and light sensor LIN | 24B |
| N10/6 | Front SAM control unit | 22B |
| N101 | Night View Assist control unit | 16J |
| N127 | Drivetrain control unit | 20G |
| N30/4 | Electronic Stability Program control unit | 10B |
| N73 | Electronic ignition switch control unit | 16E |
| S6/1 | Driver-side instrument panel button group | 28B |
| S6/1s5 | Night View Assist button | 29B |
| U494 | Valid for driving assistance package | 16A |
| U495 | Not valid for driving assistance package | 13A |
| Y3/8n4 | Fully integrated transmission control, control unit | 25G |
