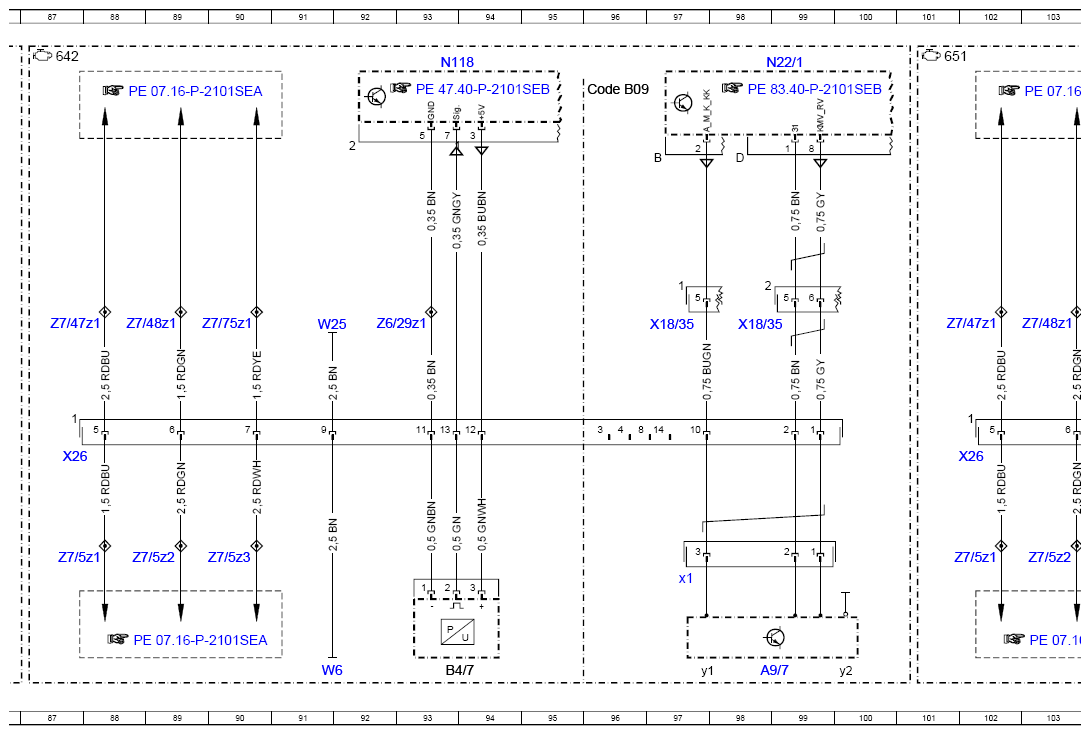

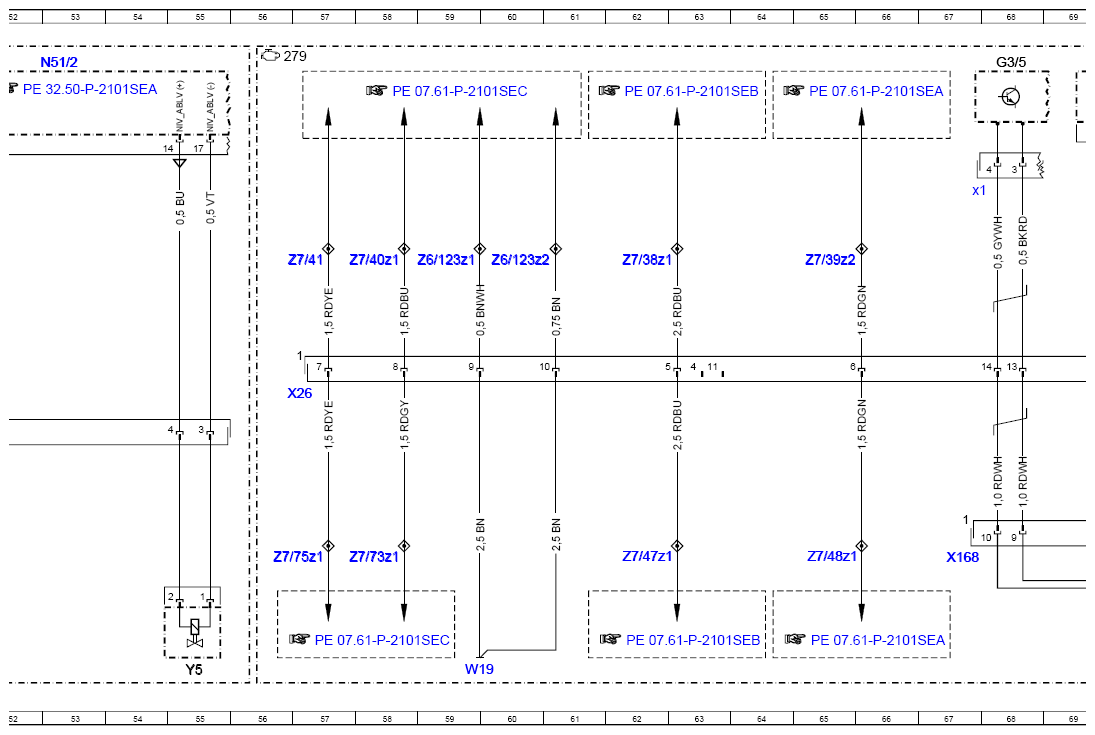

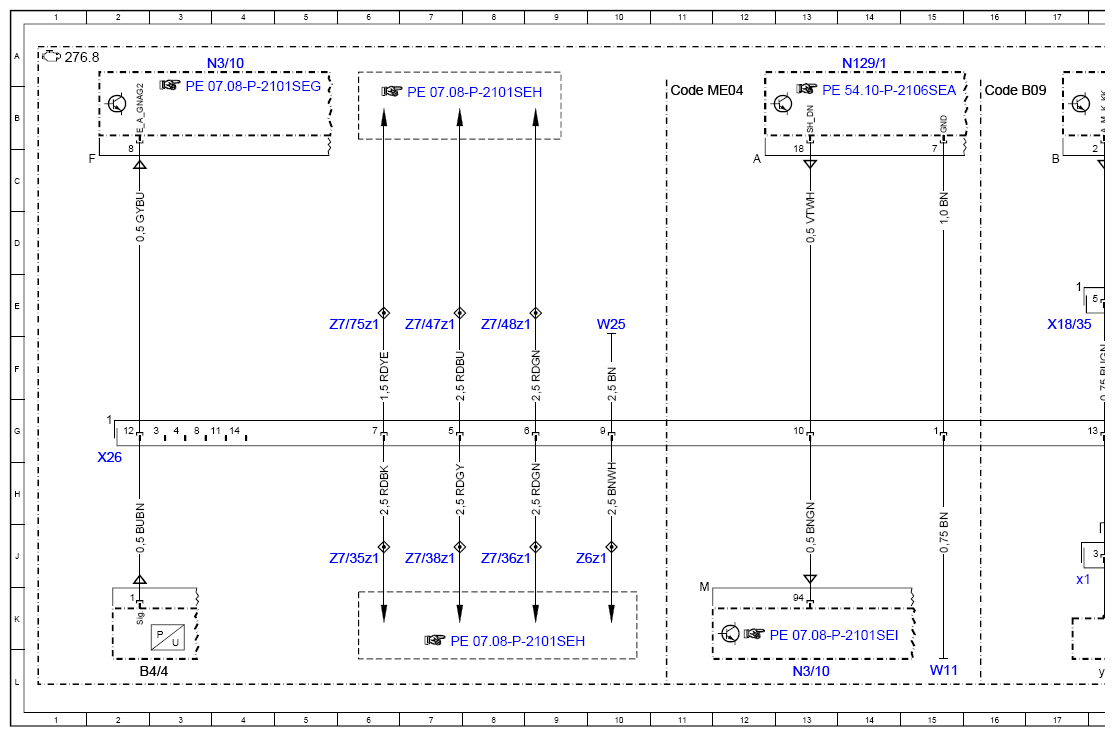

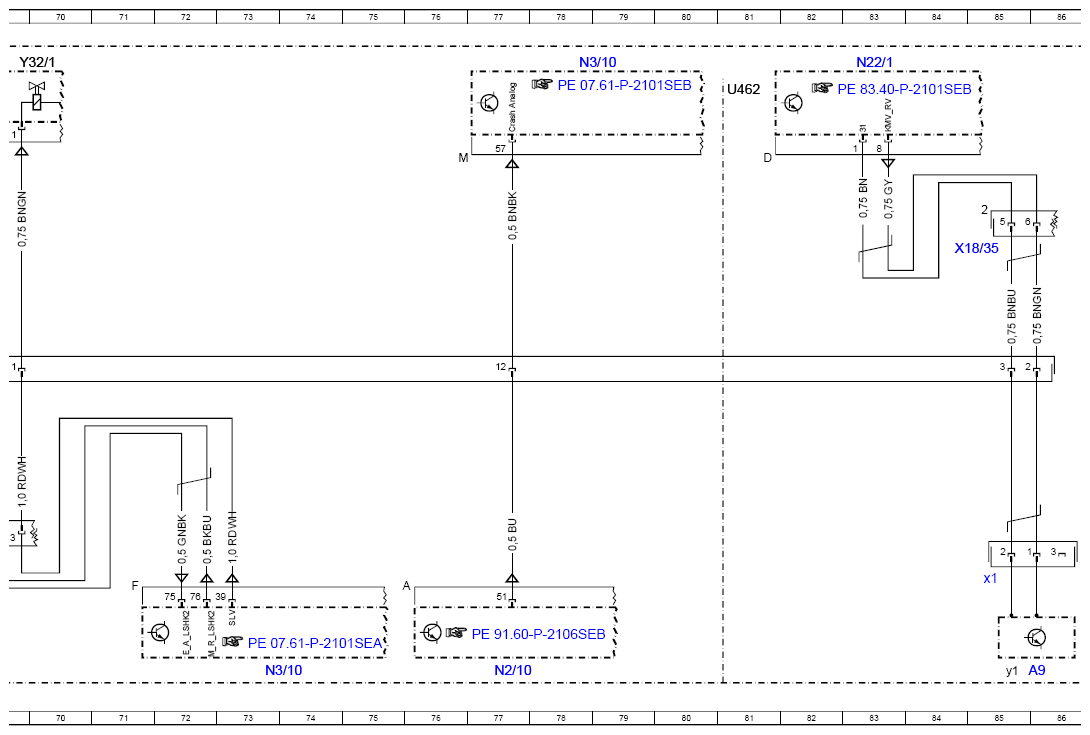

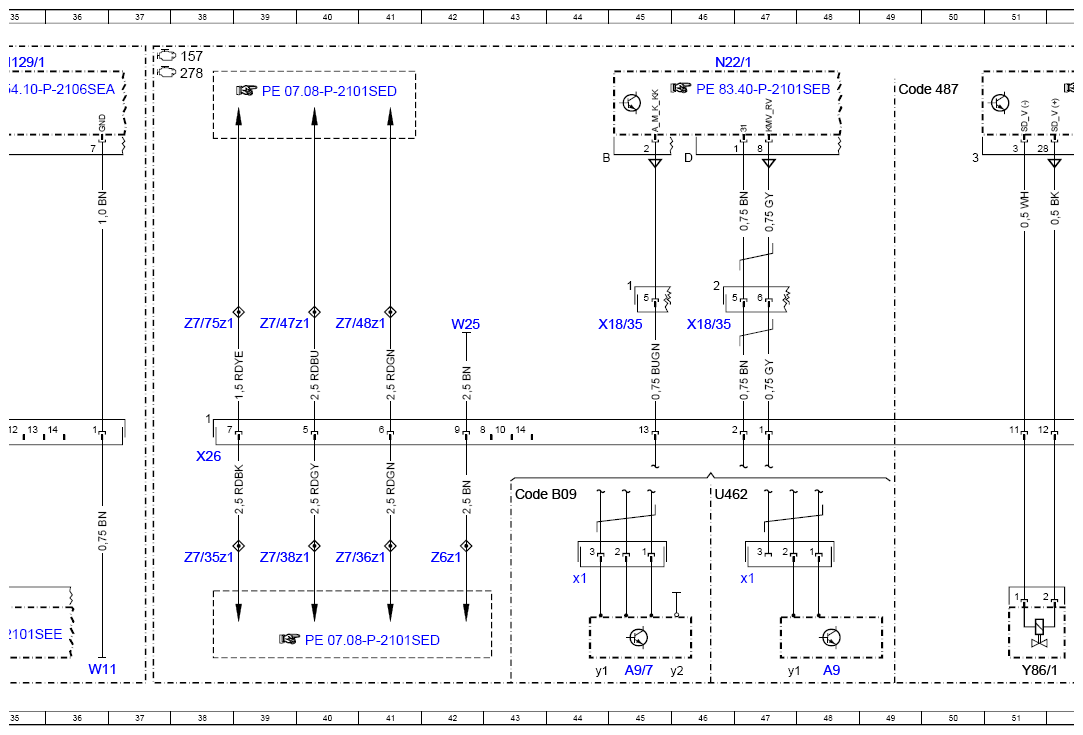

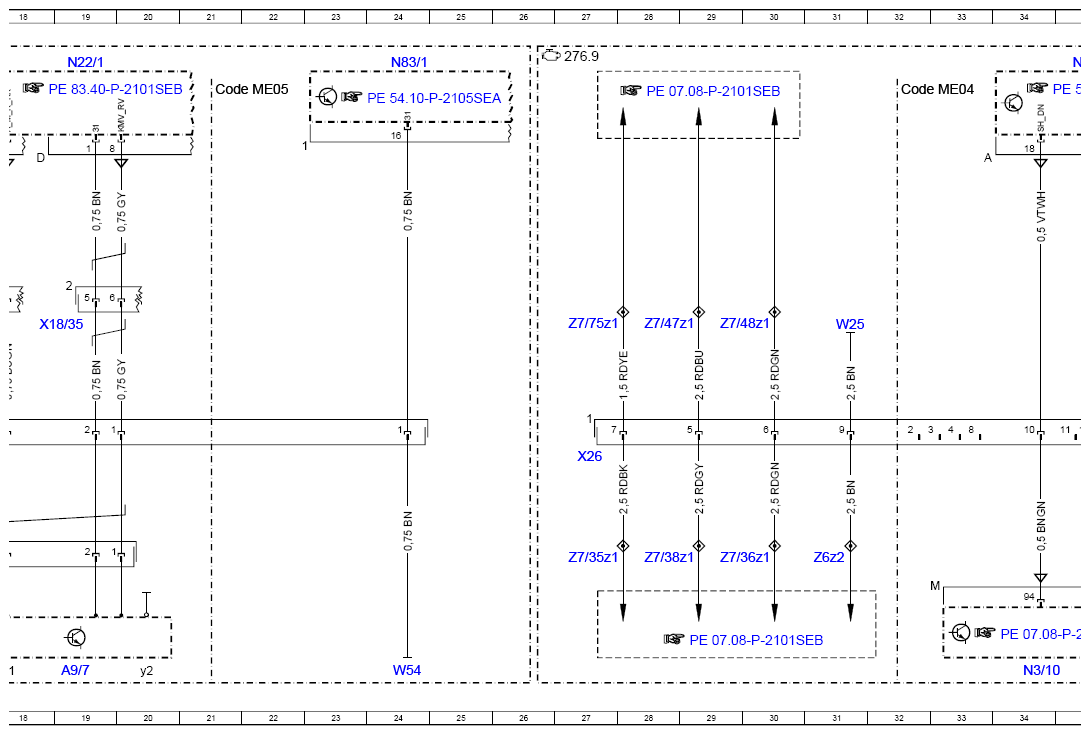

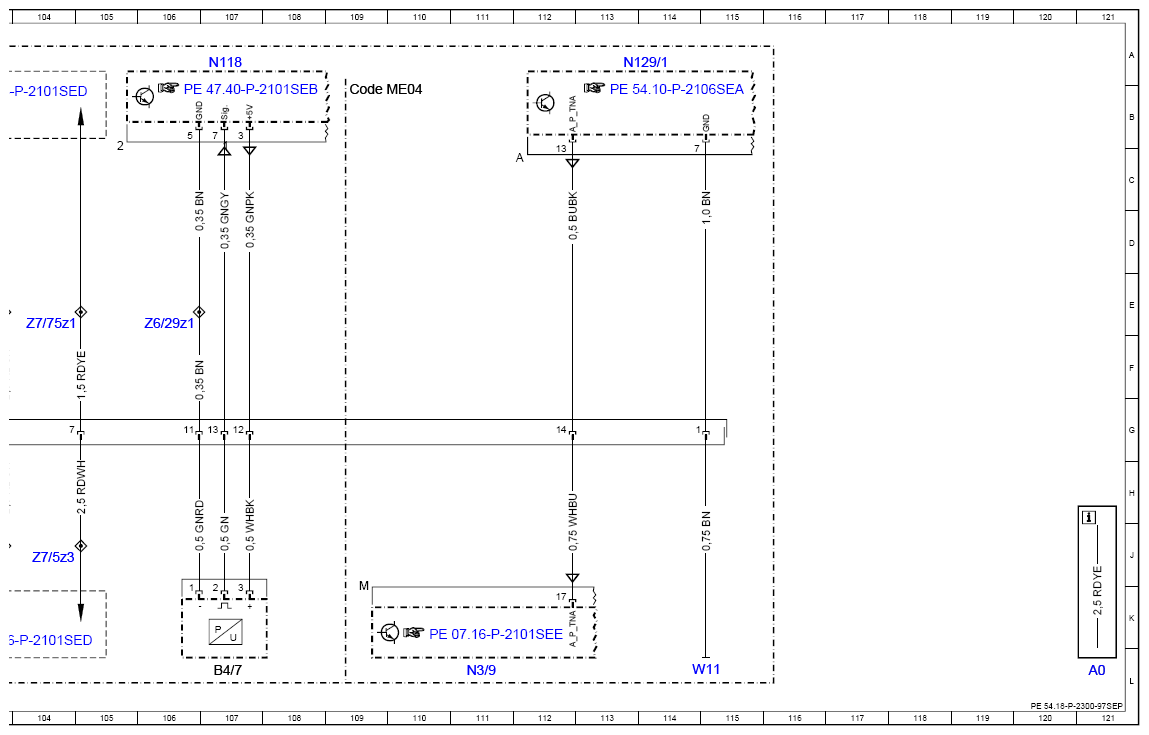

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEP
Model 217 up to model year 2018 X26(1)
Model 222 up to model year 2018 X26(1)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| A9 | Refrigerant compressor | 48L |
| A9 | Refrigerant compressor | 86L |
| A9/7 | Refrigerant compressor with magnetic clutch | 19L |
| A9/7 | Refrigerant compressor with magnetic clutch | 45L |
| A9/7 | Refrigerant compressor with magnetic clutch | 98L |
| A9/7x1 | Electrical connector 1 for refrigerant compressor with magnetic clutch | 17J |
| A9/7x1 | Electrical connector 1 for refrigerant compressor with magnetic clutch | 44J |
| A9/7x1 | Electrical connector 1 for refrigerant compressor with magnetic clutch | 97J |
| A9/7y1 | Refrigerant compressor regulation valve | 18L |
| A9/7y1 | Refrigerant compressor regulation valve | 44L |
| A9/7y1 | Refrigerant compressor regulation valve | 97L |
| A9/7y2 | Refrigerant compressor magnetic clutch | 20L |
| A9/7y2 | Refrigerant compressor magnetic clutch | 46L |
| A9/7y2 | Refrigerant compressor magnetic clutch | 100L |
| A9x1 | Refrigerant compressor electrical connector | 47J |
| A9x1 | Refrigerant compressor electrical connector | 85J |
| A9y1 | Refrigerant compressor regulation valve | 47L |
| A9y1 | Refrigerant compressor regulation valve | 85L |
| B4/4 | Purging pressure sensor | 2L |
| B4/7 | Fuel pressure sensor | 93L |
| B4/7 | Fuel pressure sensor | 107L |
| Code 487 | MAGIC BODY CONTROL | 49B |
| Code B09 | Refrigerant compressor with magnetic clutch | 43H |
| Code B09 | Refrigerant compressor with magnetic clutch | 16B |
| Code B09 | Refrigerant compressor with magnetic clutch | 96B |
| Code ME04 | Mild hybrid drive | 11B |
| Code ME04 | Mild hybrid drive | 32B |
| Code ME04 | Mild hybrid drive | 109B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 21B |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 68A |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 67C |
| N118 | Fuel pump control unit | 93A |
| N118 | Fuel pump control unit | 107A |
| N129/1 | Power electronics control unit | 14A |
| N129/1 | Power electronics control unit | 35A |
| N129/1 | Power electronics control unit | 113A |
| N2/10 | Supplemental restraint system control unit | 77L |
| N22/1 | Climate control, control unit | 19A |
| N22/1 | Climate control, control unit | 46A |
| N22/1 | Climate control, control unit | 83A |
| N22/1 | Climate control, control unit | 99A |
| N3/10 | ME-SFI [ME] control unit | 13L |
| N3/10 | ME-SFI [ME] control unit | 34L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 73L |
| N3/10 | ME-SFI [ME] control unit | 78A |
| N3/9 | CDI control unit | 111L |
| N51/2 | Active Body Control, control unit | 53A |
| N83/1 | DC/DC converter control unit | 24A |
| U462 | Valid without code B09 Refrigerant compressor with magnetic clutch | 46H |
| U462 | Valid without code B09 Refrigerant compressor with magnetic clutch | 81B |
| W11 | Combustion engine ground point | 15L |
| W11 | Combustion engine ground point | 36L |
| W11 | Combustion engine ground point | 114L |
| W19 | Right front seat crossmember ground point | 59L |
| W25 | ME/CDI control unit ground point | 10E |
| W25 | ME/CDI control unit ground point | 31E |
| W25 | ME/CDI control unit ground point | 42E |
| W25 | ME/CDI control unit ground point | 91E |
| W54 | Right rear wheel well ground point | 24L |
| W6 | Left wheel arch trunk ground point | 91L |
| X168 | ME-SFI [ME]/CDI control unit vehicle interior wiring harness electrical connector | 67J |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 17E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 19E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 45E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 46E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 97E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 98E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 85D |
| X26 | Interior and engine wiring harness electrical connector | 2H |
| X26 | Interior and engine wiring harness electrical connector | 27H |
| X26 | Interior and engine wiring harness electrical connector | 38H |
| X26 | Interior and engine wiring harness electrical connector | 57F |
| X26 | Interior and engine wiring harness electrical connector | 87H |
| X26 | Interior and engine wiring harness electrical connector | 102H |
| Y32/1 | Air pump switchover valve 1 | 69A |
| Y5 | ABC switchover valve | 55L |
| Y86/1 | ABC throttle valve | 51L |
| Z6/123z1 | Left cylinder bank ignition coil ground line connector sleeve 2 | 59D |
| Z6/123z2 | Right cylinder bank ignition coil ground line connector sleeve 2 | 60D |
| Z6/29z1 | Connector sleeve, ground connection for fuel pump | 93E |
| Z6/29z1 | Connector sleeve, ground connection for fuel pump | 106E |
| Z6z1 | Circuit 31 connector sleeve | 10J |
| Z6z1 | Circuit 31 connector sleeve | 42J |
| Z6z2 | Circuit 31 connector sleeve | 31J |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 6J |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 27J |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 38J |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 8J |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 30J |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 41J |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 7J |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 28J |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 39J |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 62D |
| Z7/39z2 | Circuit 87 M2i connector sleeve | 65D |
| Z7/40z1 | Tml. 30 connector sleeve | 58D |
| Z7/41 | Sensor voltage supply connector sleeve | 57D |
| Z7/47z1 | Circuit 87/2 connector sleeve | 7E |
| Z7/47z1 | Circuit 87/2 connector sleeve | 28E |
| Z7/47z1 | Circuit 87/2 connector sleeve | 39E |
| Z7/47z1 | Circuit 87/2 connector sleeve | 62J |
| Z7/47z1 | Circuit 87/2 connector sleeve | 87E |
| Z7/47z1 | Circuit 87/2 connector sleeve | 102E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 8E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 30E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 41E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 65J |
| Z7/48z1 | Circuit 87/2 connector sleeve | 89E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 103E |
| Z7/5z1 | Circuit 87/3 connector sleeve | 87J |
| Z7/5z1 | Circuit 87/3 connector sleeve | 102J |
| Z7/5z2 | Circuit 87/3 connector sleeve | 89J |
| Z7/5z2 | Circuit 87/3 connector sleeve | 103J |
| Z7/5z3 | Circuit 87/3 connector sleeve | 90J |
| Z7/5z3 | Circuit 87/3 connector sleeve | 104J |
| Z7/73z1 | Circuit 87M4 connector sleeve | 58J |
| Z7/75z1 | Circuit 87M3 connector sleeve | 57J |
| Z7/75z1 | Circuit 87M3 connector sleeve | 6E |
| Z7/75z1 | Circuit 87M3 connector sleeve | 27E |
| Z7/75z1 | Circuit 87M3 connector sleeve | 38E |
| Z7/75z1 | Circuit 87M3 connector sleeve | 90E |
| Z7/75z1 | Circuit 87M3 connector sleeve | 104E |
