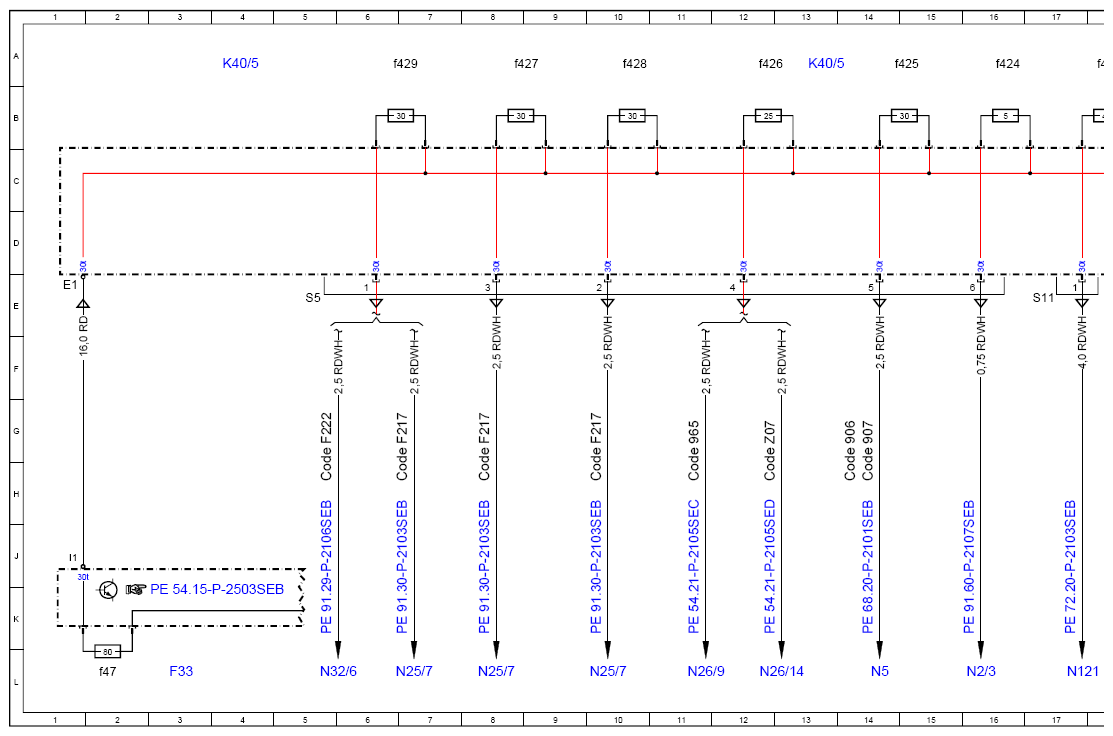

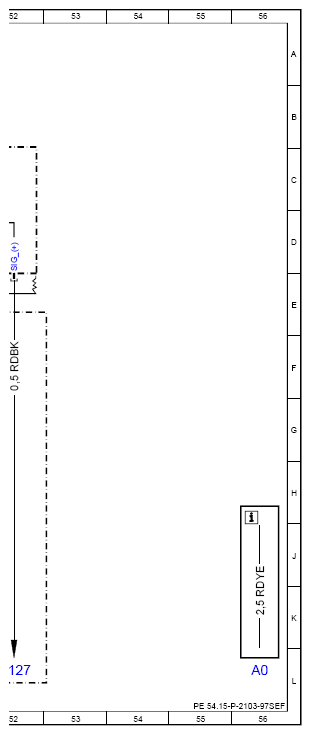

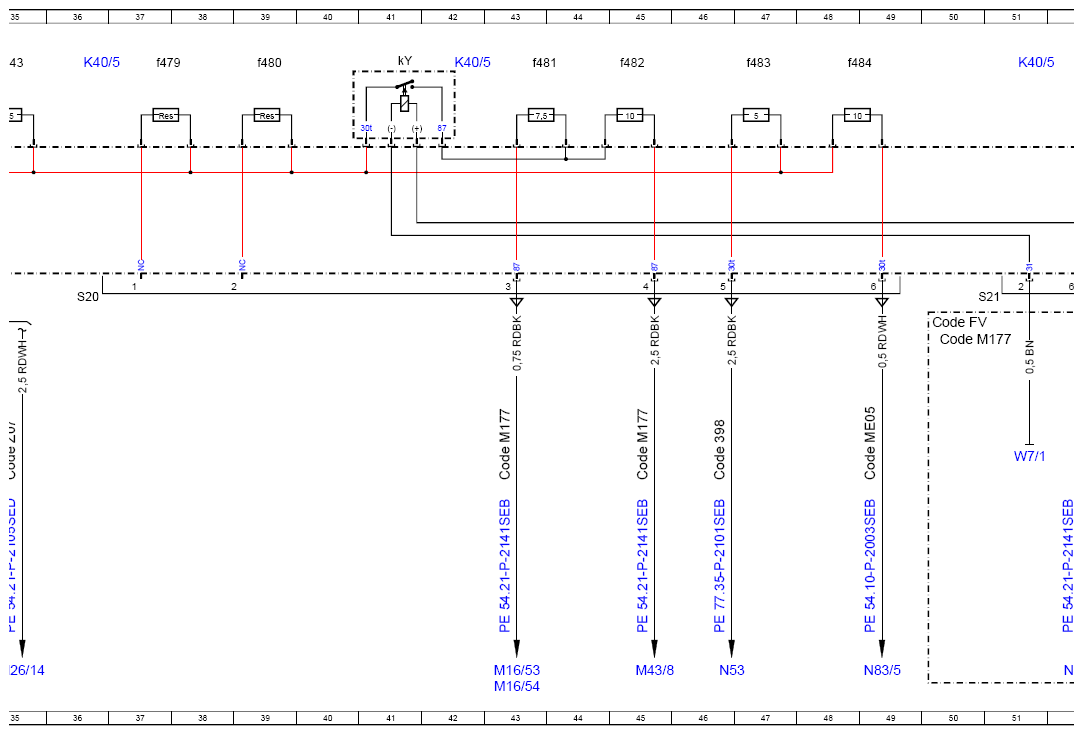

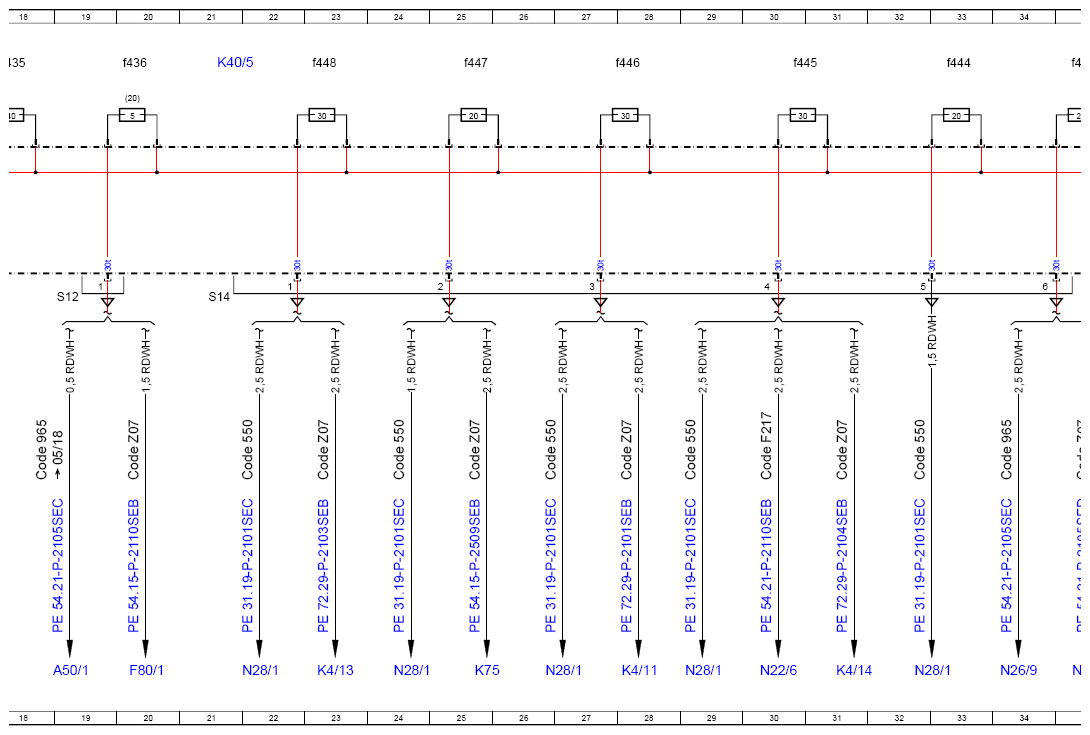

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97SEF
Model 217, 222 as of model year 2018 Fuse and relay module K40/5, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A50/1 | Mirror taximeter | 19L |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 46H |
| Code 550 | Trailer hitch | 24H |
| Code 550 | Trailer hitch | 22H |
| Code 550 | Trailer hitch | 27H |
| Code 550 | Trailer hitch | 32H |
| Code 550 | Trailer hitch | 29H |
| Code 906 | Front armrest heater | 14H |
| Code 907 | Rear armrest heater | 14H |
| Code 965 | Taxi/rental car - Pre-installation | 11H |
| Code 965 | Taxi/rental car - Pre-installation | 18H |
| Code 965 | Taxi/rental car - Pre-installation | 34H |
| Code F217 | MODEL SERIES 217 | 7H |
| Code F217 | MODEL SERIES 217 | 8H |
| Code F217 | MODEL SERIES 217 | 10H |
| Code F217 | MODEL SERIES 217 | 30H |
| Code F222 | MODEL SERIES 222 | 5H |
| Code FV | LONG SEDAN | 50E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 45H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 43H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 50F |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 49H |
| Code Z07 | Top protection | 13H |
| Code Z07 | Top protection | 23H |
| Code Z07 | Top protection | 20H |
| Code Z07 | Top protection | 28H |
| Code Z07 | Top protection | 25H |
| Code Z07 | Top protection | 31H |
| Code Z07 | Top protection | 35H |
| F33 | Rear pre-fuse box | 3L |
| F33f47 | Fuse 47 | 2L |
| F80/1 | Special-purpose vehicle fuse block 1 | 20L |
| K4/11 | Left front power window hydraulic pump relay | 28L |
| K4/13 | Left rear power window hydraulic pump relay | 23L |
| K4/14 | Right rear power window hydraulic pump relay | 31L |
| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 13A |
| K40/5 | Rear fuse and relay module | 21A |
| K40/5 | Rear fuse and relay module | 36A |
| K40/5 | Rear fuse and relay module | 42A |
| K40/5 | Rear fuse and relay module | 51A |
| K40/5f424 | Fuse 424 | 16A |
| K40/5f425 | Fuse 425 | 15A |
| K40/5f426 | Fuse 426 | 12A |
| K40/5f427 | Fuse 427 | 8A |
| K40/5f428 | Fuse 428 | 10A |
| K40/5f429 | Fuse 429 | 7A |
| K40/5f435 | Fuse 435 | 18A |
| K40/5f436 | Fuse 436 | 20A |
| K40/5f443 | Fuse 443 | 35A |
| K40/5f444 | Fuse 444 | 33A |
| K40/5f445 | Fuse 445 | 30A |
| K40/5f446 | Fuse 446 | 28A |
| K40/5f447 | Fuse 447 | 25A |
| K40/5f448 | Fuse 448 | 23A |
| K40/5f479 | Fuse 479 | 37A |
| K40/5f480 | Fuse 480 | 39A |
| K40/5f481 | Fuse 481 | 43A |
| K40/5f482 | Fuse 482 | 45A |
| K40/5f483 | Fuse 483 | 47A |
| K40/5f484 | Fuse 484 | 48A |
| K40/5kY | Backup relay | 41A |
| K75 | Battery disconnect switch relay | 25L |
| M16/53 | Left exhaust flap actuator motor | 43L |
| M16/54 | Right exhaust flap actuator motor | 43L |
| M43/8 | Low-temperature circuit circulation pump 3 | 45L |
| N121 | Trunk lid control, control unit | 17L |
| N127 | Drivetrain control unit | 52L |
| N2/3 | Active belt buckle control unit | 16L |
| N22/6 | Rear control unit | 30L |
| N25/7 | AIRSCARF control unit | 10L |
| N25/7 | AIRSCARF control unit | 8L |
| N25/7 | AIRSCARF control unit | 7L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 12L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 35L |
| N26/9 | Special-purpose vehicle multifunction control unit | 11L |
| N26/9 | Special-purpose vehicle multifunction control unit | 34L |
| N28/1 | Trailer recognition control unit | 24L |
| N28/1 | Trailer recognition control unit | 22L |
| N28/1 | Trailer recognition control unit | 26L |
| N28/1 | Trailer recognition control unit | 32L |
| N28/1 | Trailer recognition control unit | 29L |
| N32/6 | Left rear seat control unit | 5L |
| N5 | Armrest heater control unit | 14L |
| N53 | MAGIC SKY CONTROL, control unit | 46L |
| N83/5 | Charger | 49L |
| W7/1 | Right taillamp trunk ground point | 51H |
