Remove/Install Roller Sunblind For Side Window - AR72.12-P-2000LFS
Model 222
with code Z07 (B7 armoring on special protection version)
| Remove/install | |||
| 1 | Remove door lining from left or right rear door | Model 222.1 with code Z07 (B7 armoring on special protection version) |
|
| AR72.12-P-1010LF | |||
| 2 | Remove left and right window frame paneling | ||

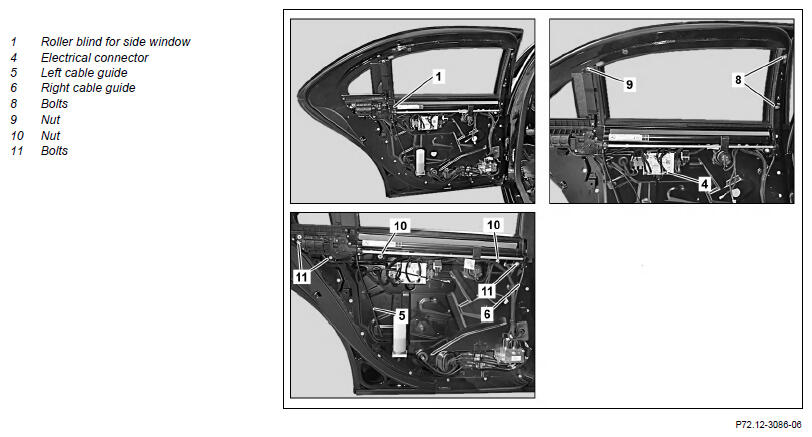

| Fig 1 | |||
| 3 | Disconnect electrical connector (4) from left rear door control unit or right rear door control unit and expose electrical wiring harness | ||
| 4 | Unclip left cable guide (5) | Fig 2 | |
| 5 | Cut cable tie from right cable guide (6) | ||
| 6 | Unscrew bolt (8) | ||
| 7 | Unscrew nut (9) and nuts (10) | ||
| 8 | Remove screw/bolts (11) | *BA72.12-P-1010-01S | |
| 9 | Remove roller blind for side window (1) | ||
| 10 | Install in the reverse order |
REAR DOOR
| Number | Designation | MODEL 222 with CODE Z07 | ||
|---|---|---|---|---|
| BA72.12-P-1010-01S | Bolt, roller sun blind to rear door | M5 | Nm | 4 |
| M6 | Nm | 8 | ||
