Component Description For Right Front Door Control Unit - GF72.29-P-6009LF
Model 217, 222

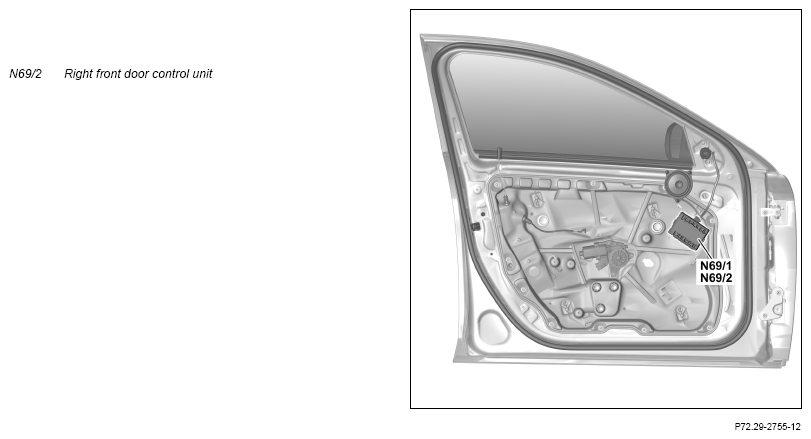

Shown on model 222.0, left front door, door paneling removed
Location
The right front door control unit is located on the door module behind the door lining.
Task
The right front door control unit has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors and signals
The input factors are read in via the following connections:
- Direct line
- Right front door LIN (LIN B6)
- Interior CAN (CAN B)
Direct line
The front door control unit reads in the signals of the following components via direct lines:
- Right front door microswitch safety catch (A85/1s1) (model 222 with code 883 (Power closing), model 217)
- Right front door main microswitch safety catch (A85/1s2)
- Right front door inside door handle microswitch (A85/1s3) (model 222 with code 883 (Power closing), model 217)
- Right front door external operation microswitch (A85/1s4) (model 222 with code 883 (Power closing), model 217)
- Right front door tweeter hall sensor (H4/69) (with code 811 (Advanced sound system) and code 877 (Ambiance illumination))
- Right front power window motor hall sensor (M10/4) (up to model year 2018 (except model 222 with code Z12 (Right front power window for special protection)))
- Right front door power closing actuator motor microswitch (M14/22s1) (model 222 with code 883 (Power closing), model 217)
- Vertical inclination adjustment potentiometer (M21/2r2)
- Horizontal inclination adjustment potentiometer (M21/2r3)
- Right front seat armrest heating element temperature sensor (R16/6b1) (with code 906 (Front armrest heater))
- Trunk lid release button (S15/1) (RHD, model 222 except code 881 (Remote trunk closing))
- Driver trunk lid control button (S15/3) (RHD, model 222 with code 881 (Remote trunk closing), model 217)
- Passenger side power window switch group (S21/2) (LHD)
- Pressure switch for right front door hydraulic power window (S26/4) (model 222 with code Z12 (Right front power window with special protection))
- Refueling safety detection switch (S62/20) (RHD, model 222.004/057/104/157/163/173)
- Right front door central locking inside door handle switch (S85/6)
Right front door LIN
The right front door control unit reads in the control signals from the following components via the right front door LIN:
- Switch group, right front seat setting (S23)
- Right front head restraint adjustment switch (S23s1)
- Right front seat inclination adjustment switch (S23s2)
- Right front seat fore/aft adjustment switch (S23s3)
- Right front seat height adjustment switch (S23s4)
- Right front backrest adjustment switch (S23s5)
- Right front memory function switch (S23s6) (model 222 with code 275 (Memory package), model 217)
- Right front memory 1 switch (S23s7) (model 222 with code 275 (Memory package), model 217)
- Right front memory 2 switch (S23s8) (model 222 with code 275 (Memory package), model 217)
- Right front memory 3 switch (S23s9) (model 222 with code 275 (Memory package), model 217)
- Right front seat cushion length switch (S23s11) (model 222 with code P64 (Memory package), model 217)
- Front seat heater switch (S23s12) (model 222 with code 401 (Seat climate control for driver and front passenger) or code 873 (Seat heater for driver and front passenger) or code 432 (Left and right dynamic multicontour seat), model 217)
- Right front seat ventilation switch (S23s13) (with code 401 (Seat climate control for driver and front passenger))
Interior CAN
The right front door control unit reads in the following signals via the interior CAN:
- Terminal status of terminal 15
- Central locking system unlocking/locking request
- PRE-SAFE® adjustment request
- Move to memory position request (model 222 with code 275 (Memory package), model 217)
- Convenience feature request
- Crash signal
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The actuation of the components takes place via the following connections:
- Direct line
- Interior CAN
Direct line
The front door control unit actuates the following components over direct lines:
- Right front door central locking motor (A85/1m1)
- Right front door additional door lock actuator motor (A85/1m4) (with code (885) Increased theft protection)
- Right outside mirror turn signal lamp (E6/6)
- Right front door exit and warning lamp (E17/4)
- Right front door outer door handle illumination (E17/8) (with CODE 889 (KEYLESS-GO))
- Right front door handle illumination (E1712)
- Right front door ambiance illumination (E17/44)
- Right front door handle ambiance illumination (E17/56) (with CODE 877 (Ambiance illumination))
- Right front door pocket illumination (E23/2) (with code 877 (Ambiance illumination))
- Right front door sound system tweeter (with code 811 (Advanced sound system) and code 877 (Ambiance illumination))
- Right front hydraulic power window relay (K4/12) (model 222 with code Z12 (Right front power window with special protection))
- Right front power window motor
- Right front door power closing actuator motor (M14/22) (model 222 with code 883 (Power closing), model 217)
- Right outside mirror (M21/2):
- Right outside mirror ambient lamp (M21/2e1)
- Right blind spot assist warning lamp (M21/2e2) (with code 237 (Active blind spot assist), code 22P (Lane package) or code 23P (Driving assistance package))
- Mirror dimming (M21/2h1) (with CODE 249 (Automatically dimming mirror))
- Vertical inclination adjustment actuator motor (M21/2m1)
- Horizontal inclination adjustment actuator motor (M21/2m2)
- Outside mirror fold-in/fold-out electric motor (M21/2m3)
- Mirror heater (M21/2r1)
- Right front seat armrest heating element (R16/6) (with code 906 (Front armrest heater))
- Valve unit for right front power window (Y69/2) (model 222 with code Z12 (Right front power window with special protection)):
- Right front window 'Open' solenoid valve (Y69/2y1)
- Right front window 'Close' solenoid valve (Y69/2y2)
The right front door control unit supplies the connected control elements with circuit 58d.
Interior CAN
The right front door control unit also sends the following signals via the interior CAN:
- Door status (open/closed)
- Convenience feature mode (with code 889 (KEYLESS-GO))
- Convenience feature direction (with code 889 (KEYLESS-GO))
- Seat ventilation request (with code 401 (Seat climate control for driver and front passenger))
- Seat heater request (with code 401 (Seat climate control for driver and passenger), code 873 (Seat heater for driver and passenger) or code 902 (Seat heater plus for driver and passenger))
- Seat adjustment request
| Wiring diagram for right front door control unit (DCU) | Model 217 Model 222 up to model year 2018 | PE72.29-P-2102-97SEA | |
| Model 222 as of model year 2018 | PE72.29-P-2102-97SEB |
